The Cleat
Secures cable supports to ductwork and equipment.
The cable loops through a single hole, so the Cleat works with any SSF cable size. The 175 lb rating is the Cleat's own and does not vary with the cable.
No cable-gripping function of its own. Always ordered alongside an L23 Football, which sets and holds the length.
Give us the size, drop and service and we’ll spec the part number and price the build.
Device only, 100/box. Works with #2, #3 and #4 cable.
Rated capacity
ICC-ES EvaluatedPMG-1840
Manufactured to ASTM A1023 and ASTM A931. ICC-ES Evaluated under listing PMG-1840, Hangers for Pipe, Duct and Conduit Support, to ICC-ES LC1041 and MSS SP-163-2025. Rated loads are for the support assembly only, at a 4:1 factor of safety; attachment to structure is evaluated separately by the design professional or the authority having jurisdiction. Dry locations only, not for fire-protection piping.
Applications
Top and bottom connections

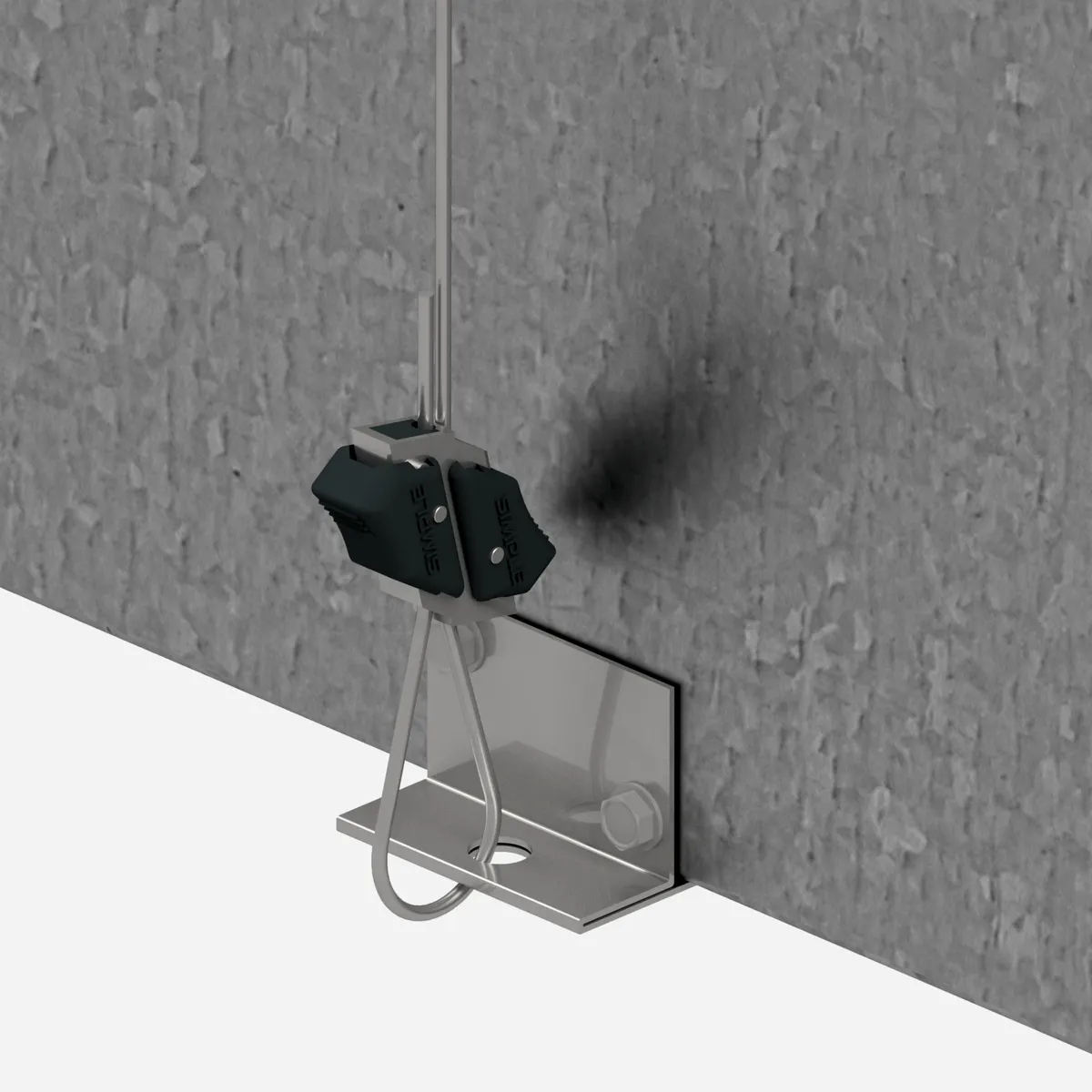

Rectangular duct

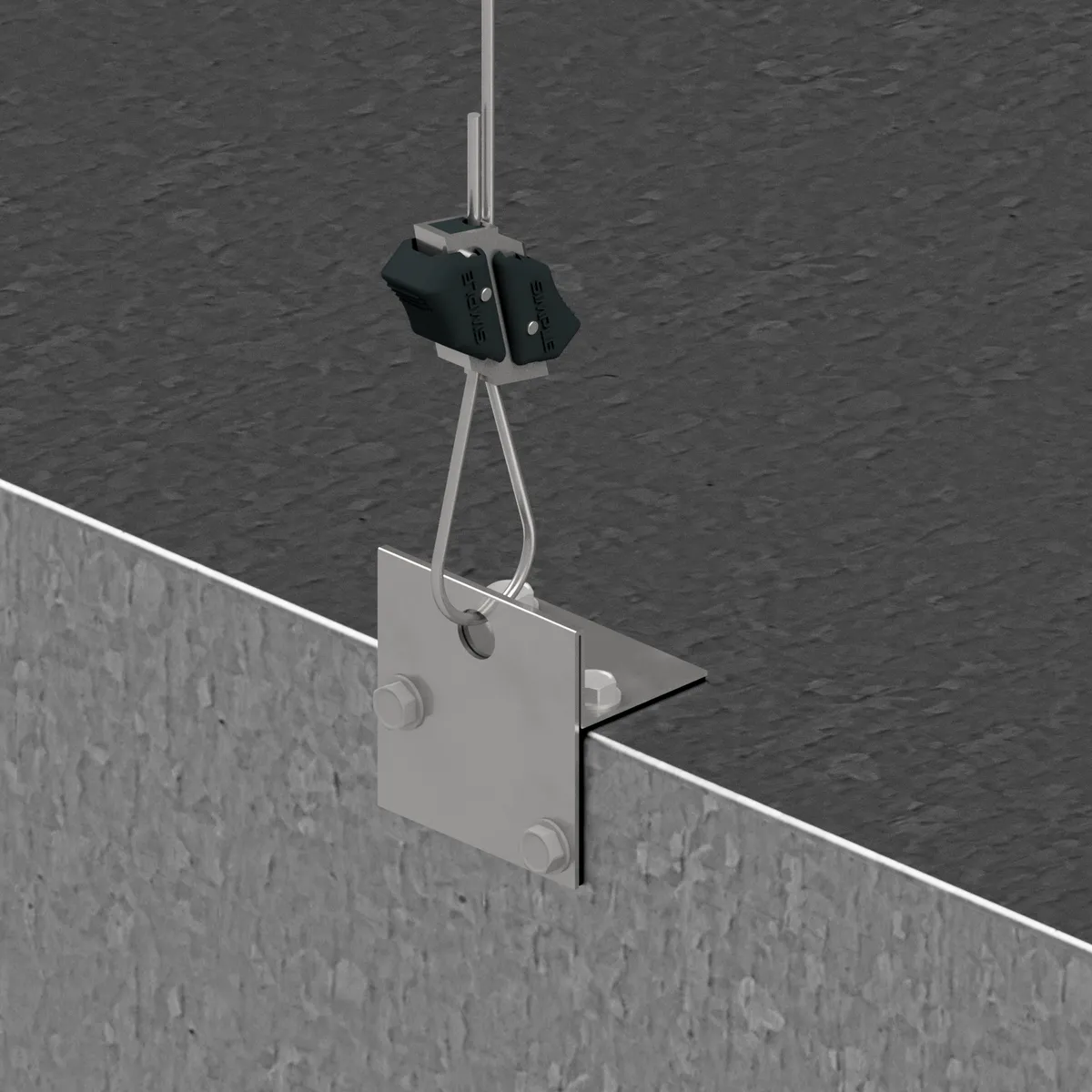

Upper connection
Equipment
Instructions
Two moves
- 01
Just screw the DC on.
- 02
Loop the cable through.
Part numbers
Cleats are sold 100/box
Devices are sold by the box, cable end fixings by the bag. Cables are sold separately unless the contractor specifically asks for them packed together.
| Part number | Description | Capacity | Pack |
|---|---|---|---|
| DC | All cables | 175 lbs | 100/box |
Before you install
Limits that apply on every job
Follow capacity limits
Never overload SSF Cable Assemblies. Refer to the Technical Data Sheets for complete assembly capacities.
Take angle reductions
Assemblies not installed vertically take the published angle reduction, applied to the assembly rating. When cable is looped around round duct, the resulting angle shall not exceed 60°. Y-Accessories and Y-Assemblies may not be installed at angles greater than 60°.
Never join two cables
Never join 2 cables into a single device. Voids engineering and warranty.
Do not use for lifting
Static overhead support only. Not for lifting, rigging, or fall protection.
Dry indoor use only
Not for wet, chlorinated, or otherwise corrosive environments. Use SSF cable only; plastic-coated and third-party cables are not permitted with SSF devices.
Do not paint cables. Keep cables clean.
Install in final position before painting. Devices cannot be adjusted after paint contacts the cable. Cables must be free of oil and fireproofing prior to device installation.
