Catalog
Rod supports, cast-in-place systems, slab-on-grade anchors, and the SC cable line, every family in one grid. Filter by the service you hang, or jump straight to where it installs.
Filter by service
Overhead

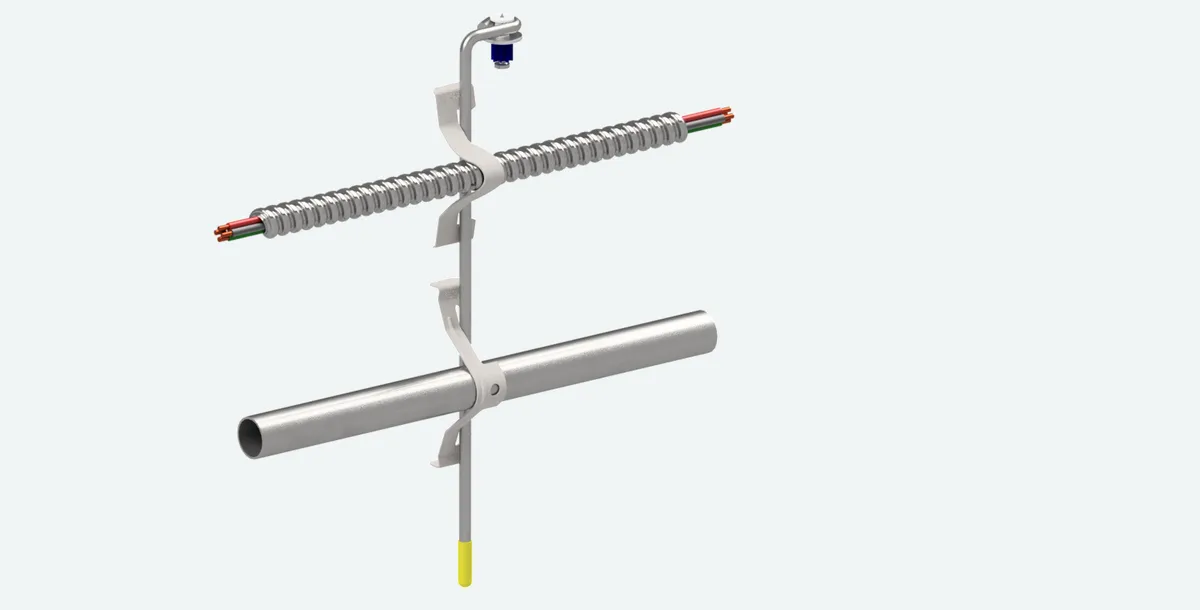

100
Simple Straight Rod
1-1/4″ pin, 90° foot, 24 to 42″ overall
101

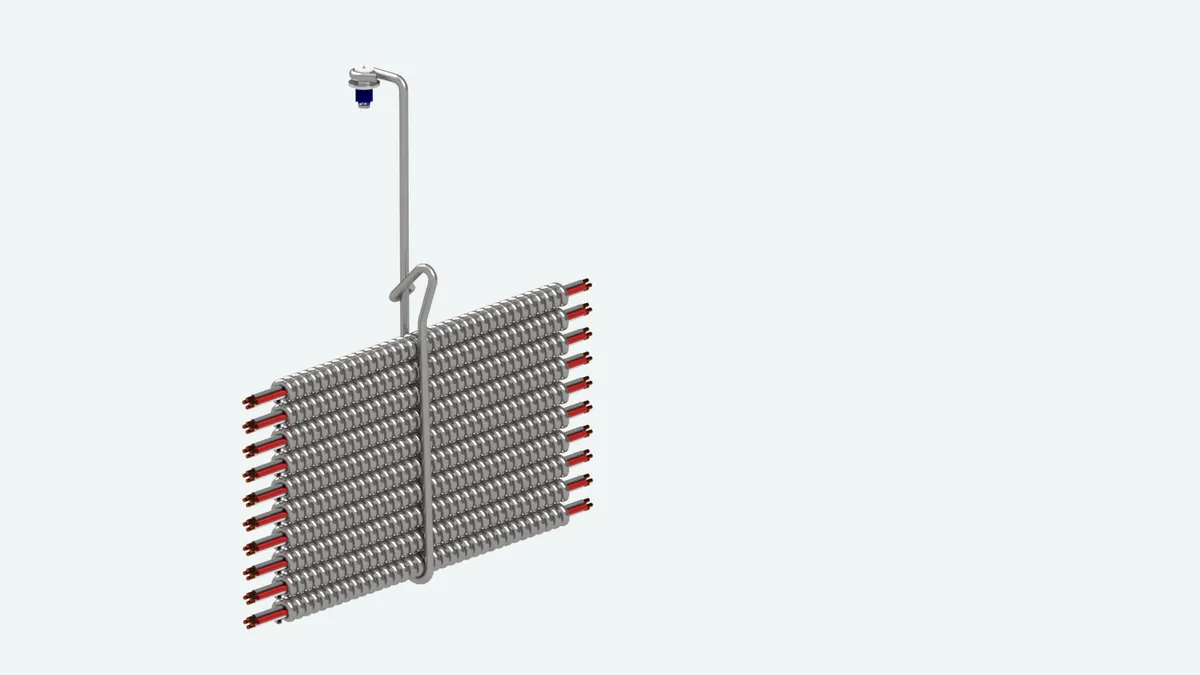

Simple Stacker
retention leg for 0.625 and 0.750″ OD MC cable
103

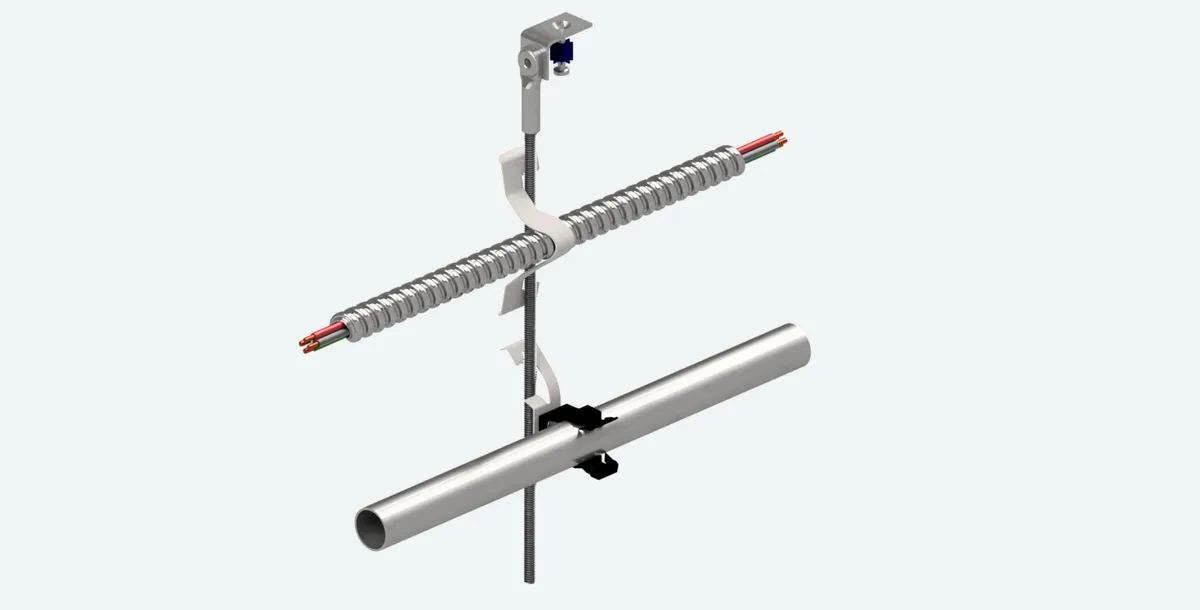

Threaded Rod Support
1-1/4″ pin, 1/4″ all-thread, 24 to 42″ overall

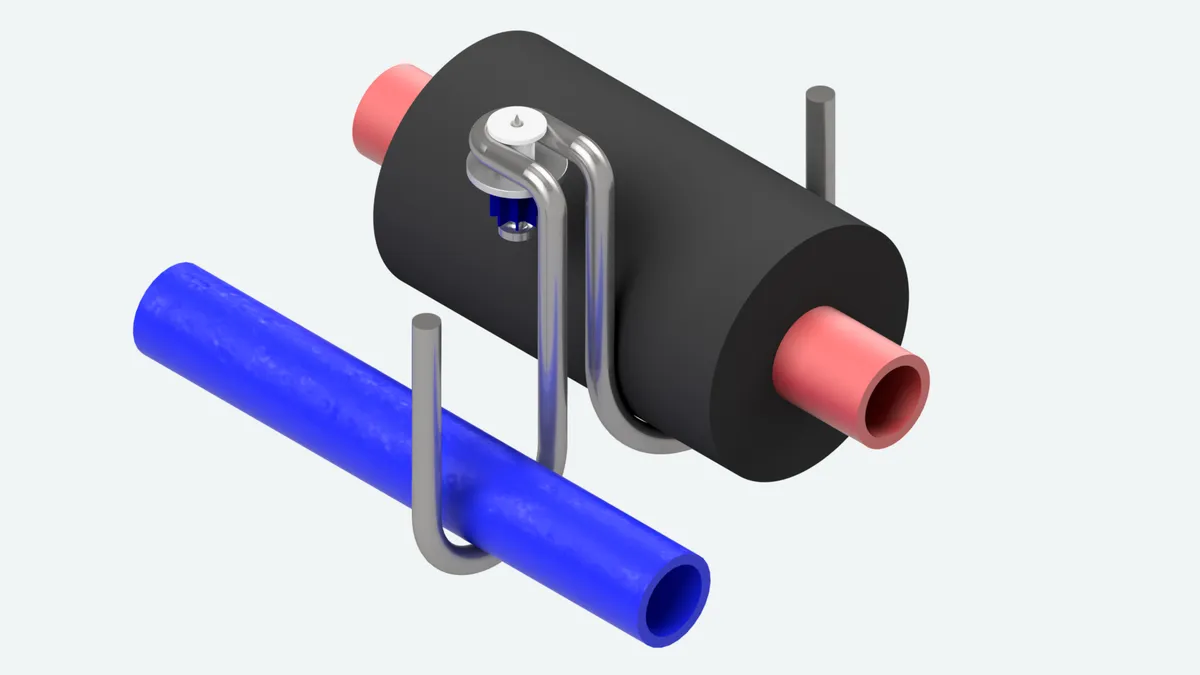

115
PEX Lasso
1″ pin, sized for 3/4″ PEX with insulation

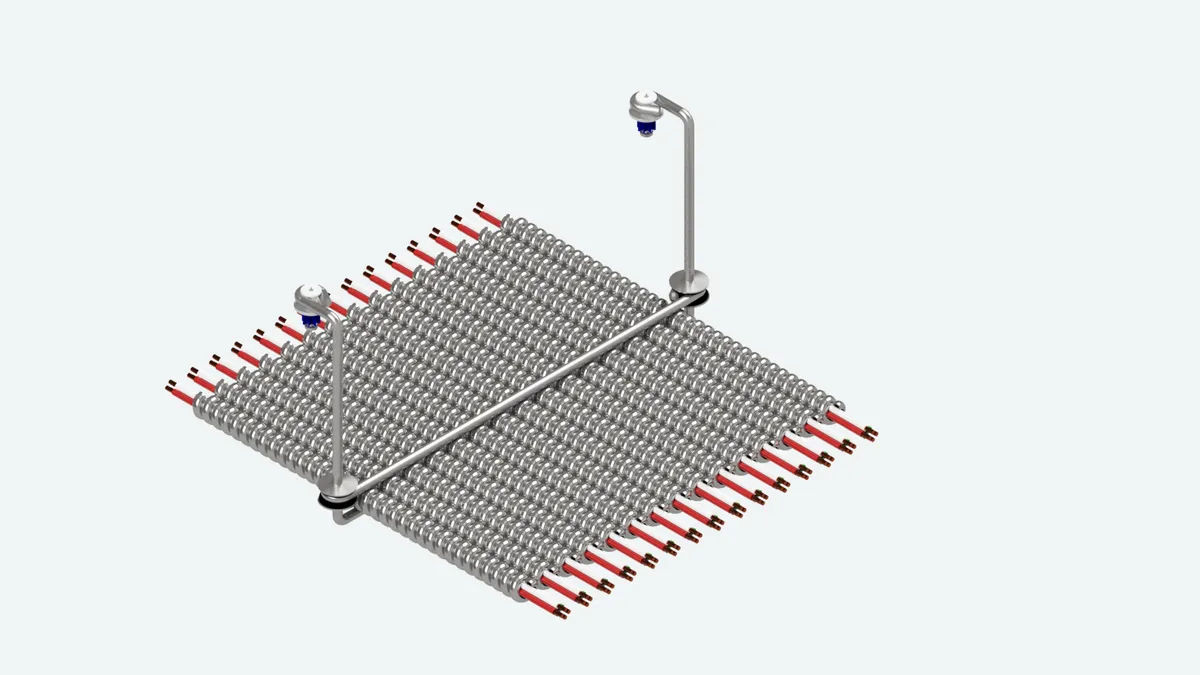

120
MC Trapeze
1-1/4″ pin, 90° foot, 12″ wide

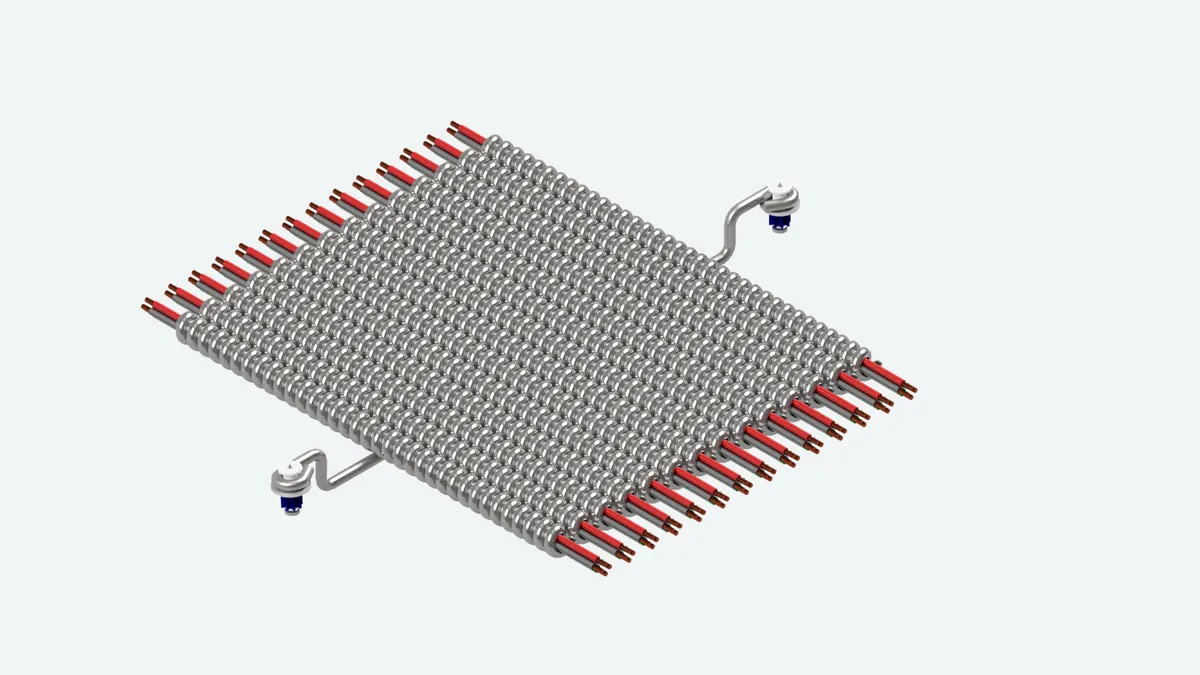

121
Simple Trapeze
trapeze for MC runs

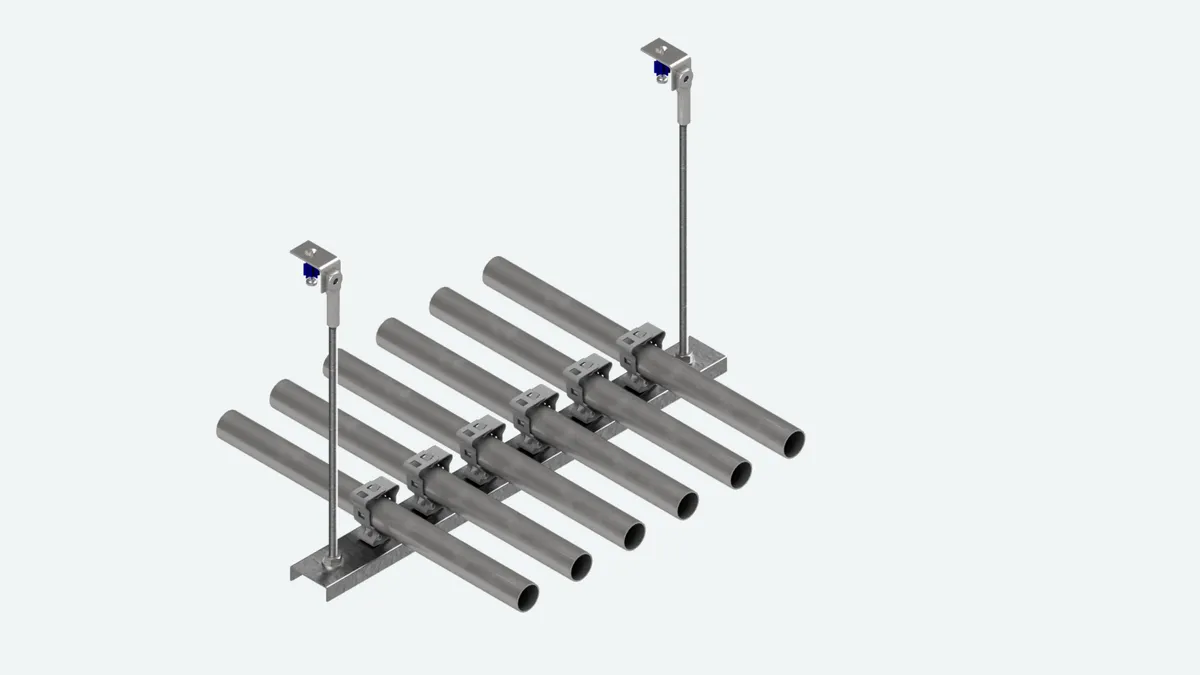

130
Simple Locked-in Trapeze
locked-in trapeze for conduit
195
Simple Cantilever Trapeze
cantilever trapeze for MC or VRF piping
122

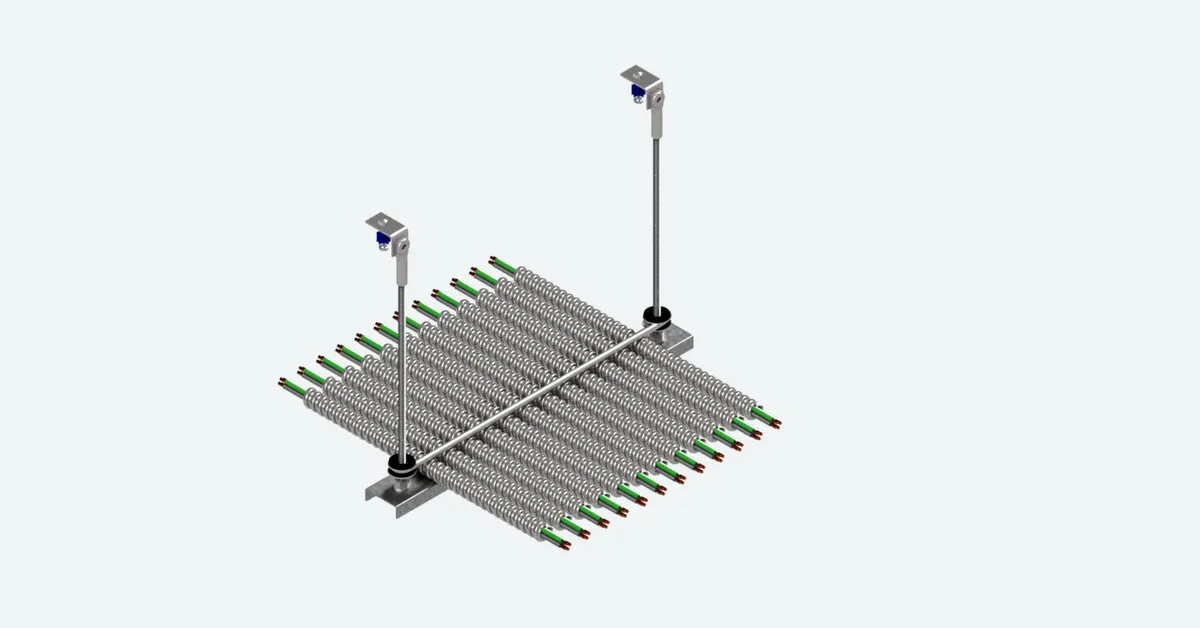

Simple HD MC Trapeze
heavy-duty trapeze for MC runs
123

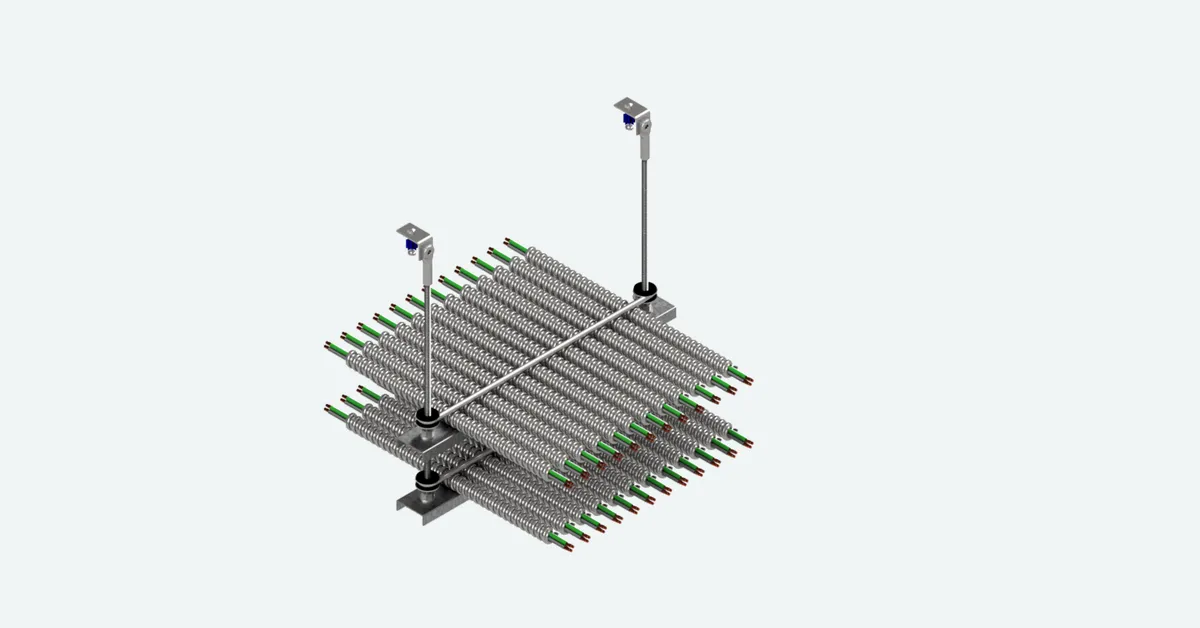

Simple HD MC Trapeze, 2-tier
two tiers of MC on one drop

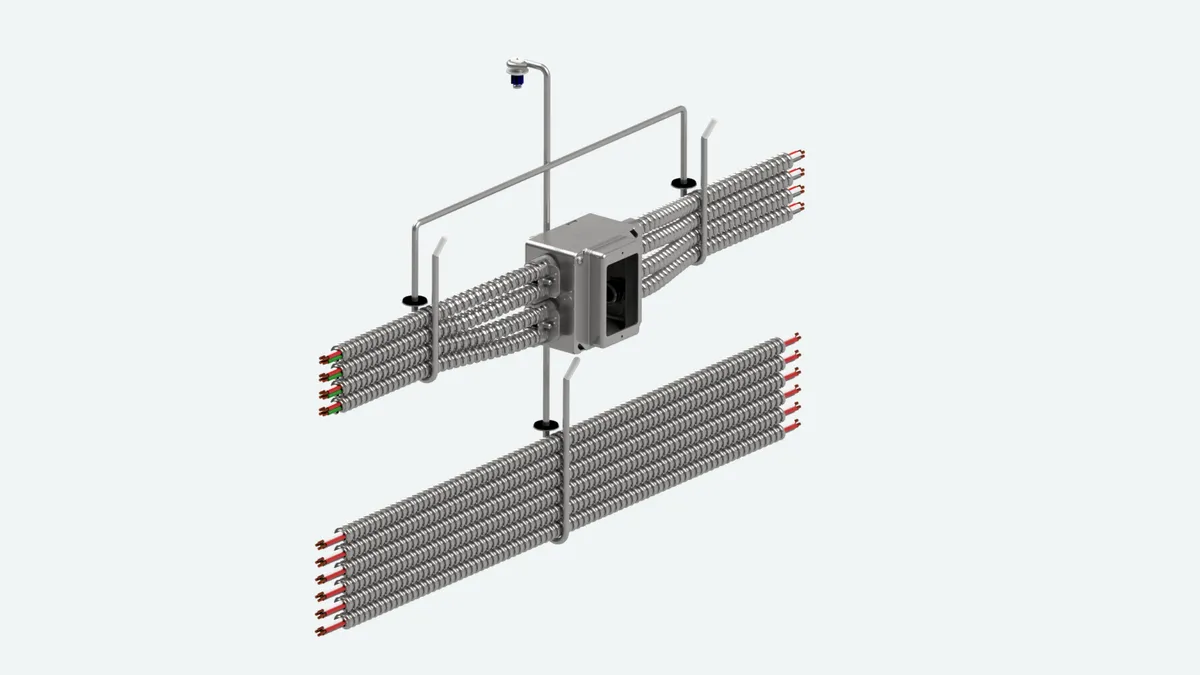

140
Simple Pitchfork Stacker
stacked multi-run pitchfork

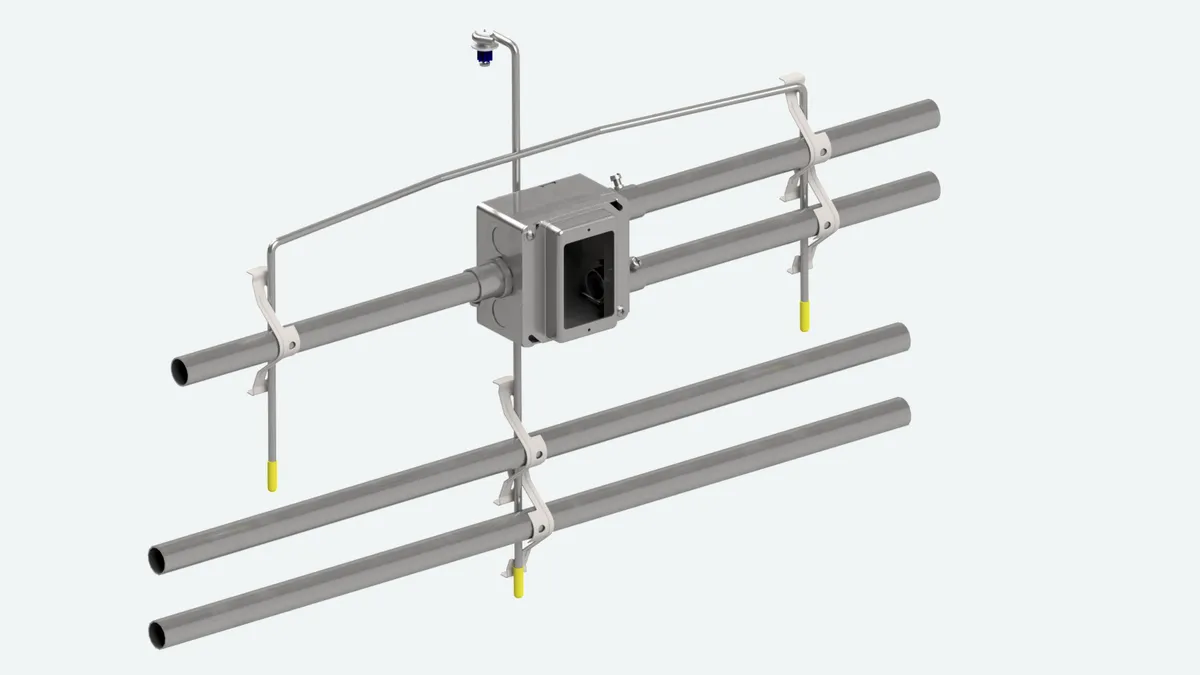

141
Simple Pitchfork
1-1/4″ pin, 90° foot, 24 and 36″ overall

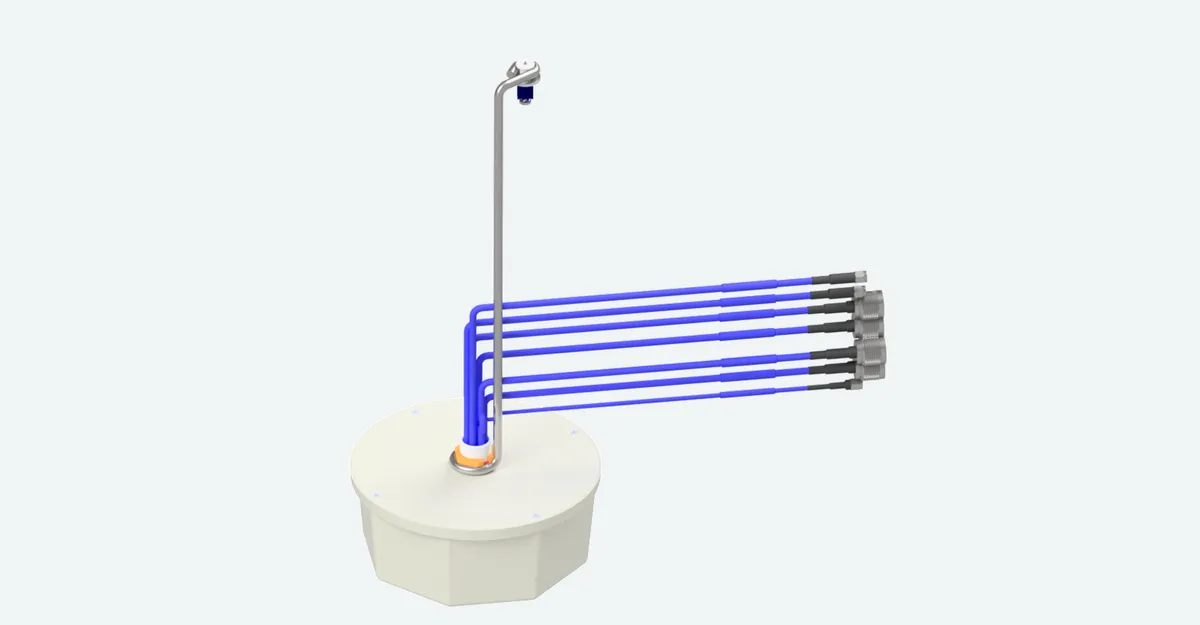

251
DAS Antenna Support
in-building antenna coverage, hospital basements and below-grade
In the wall

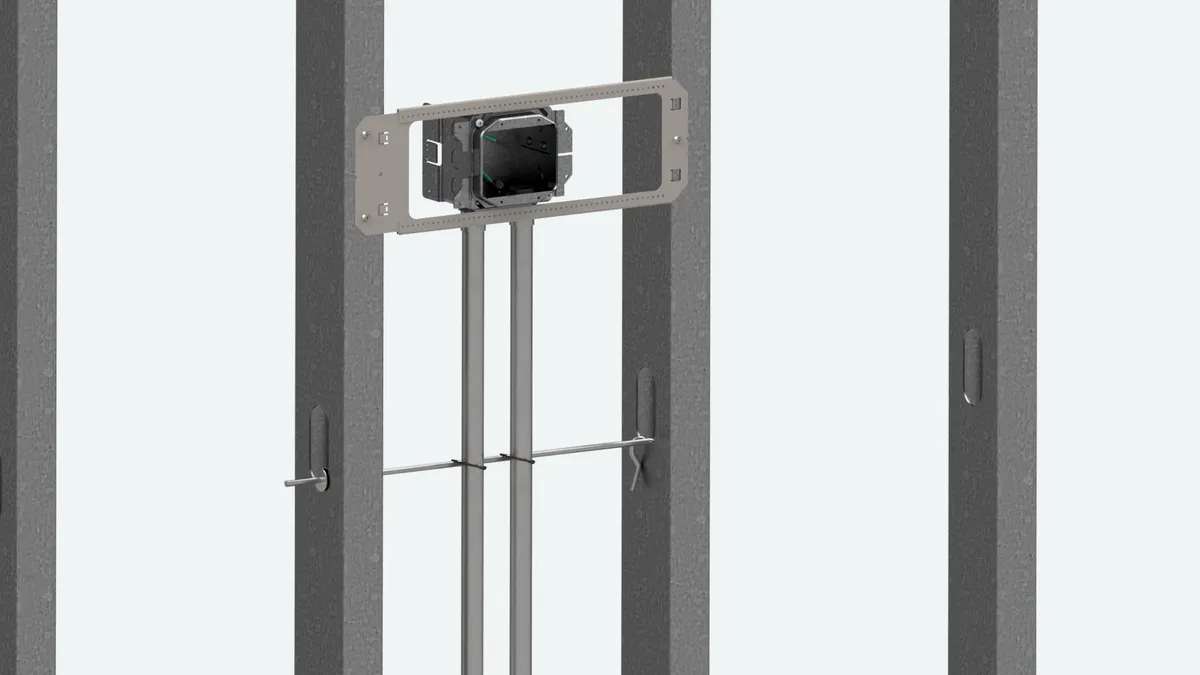

160
Simple Spanner
16 and 24″ stud spacing
162

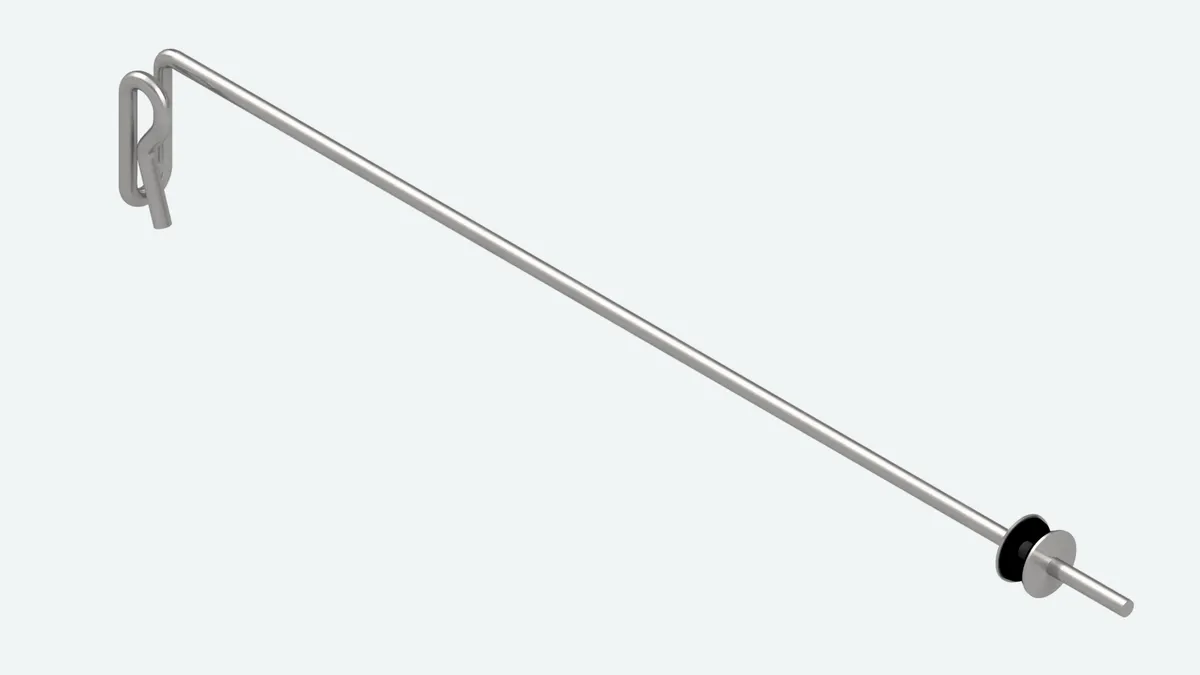

Simple Fixed Spanner
fixed-width stud bay span

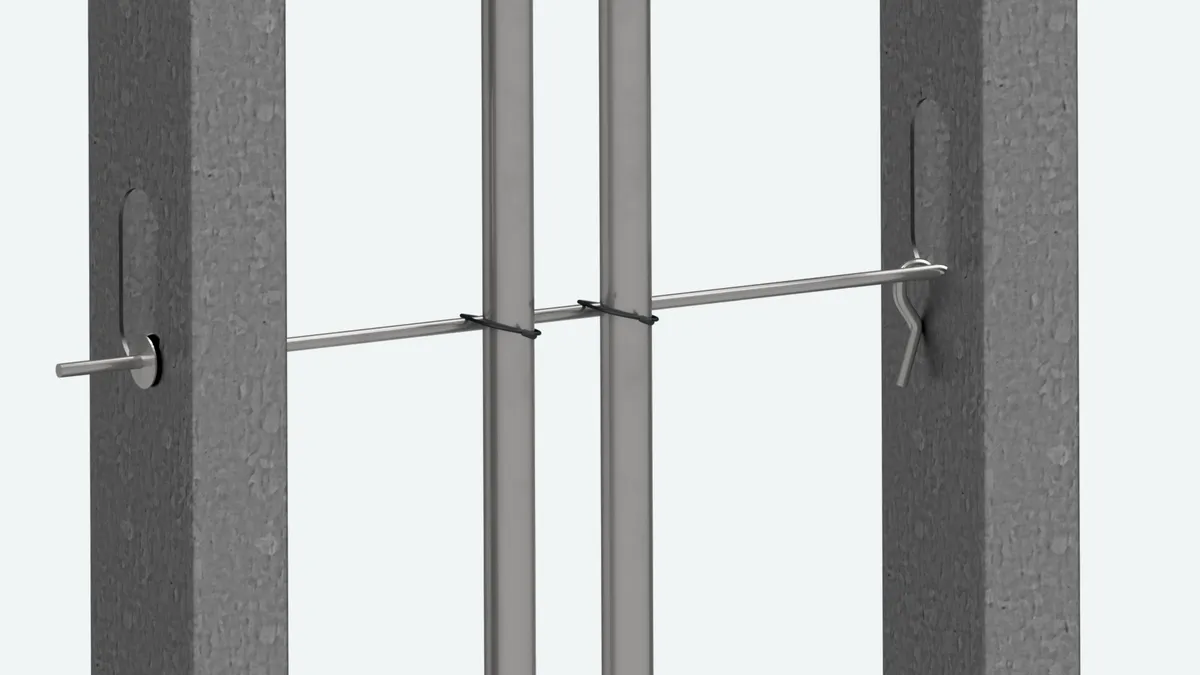

163
Simple Adjustable Spanner
adjustable stud bay span
Cast in place
300

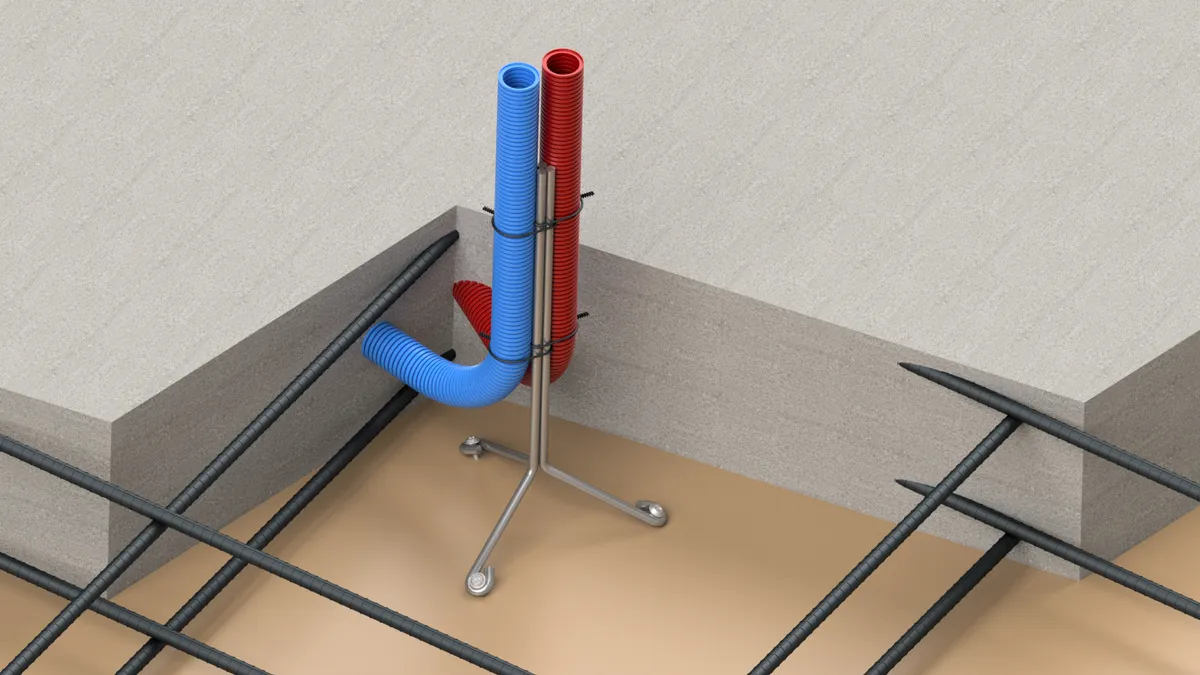

CIP Tree
8 to 12″ tall

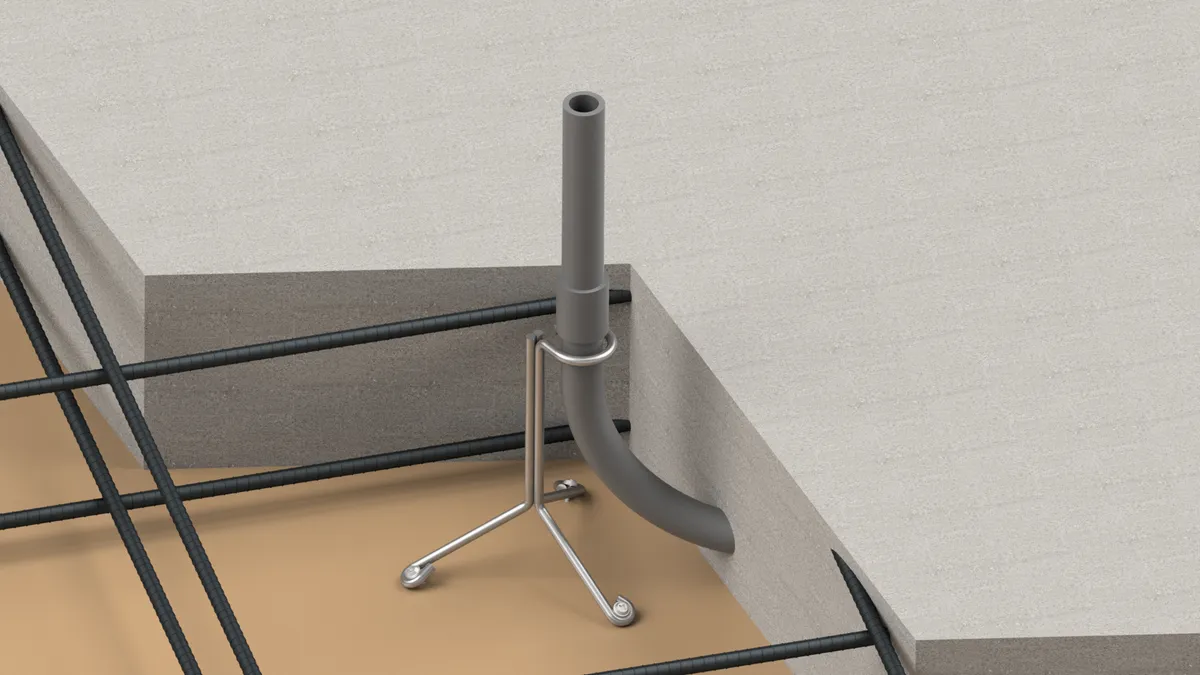

301
Single Loop CIP Tree
loop IDs to suit conduit and pipe
302

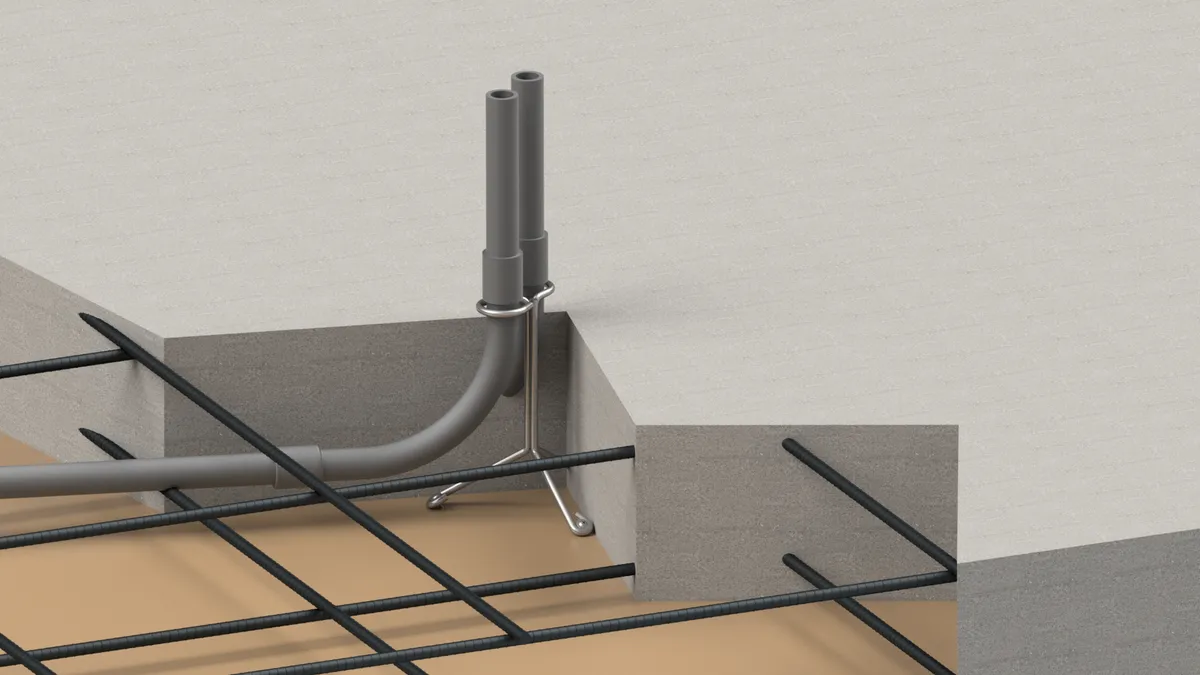

Double Loop CIP Tree
two loops per tree

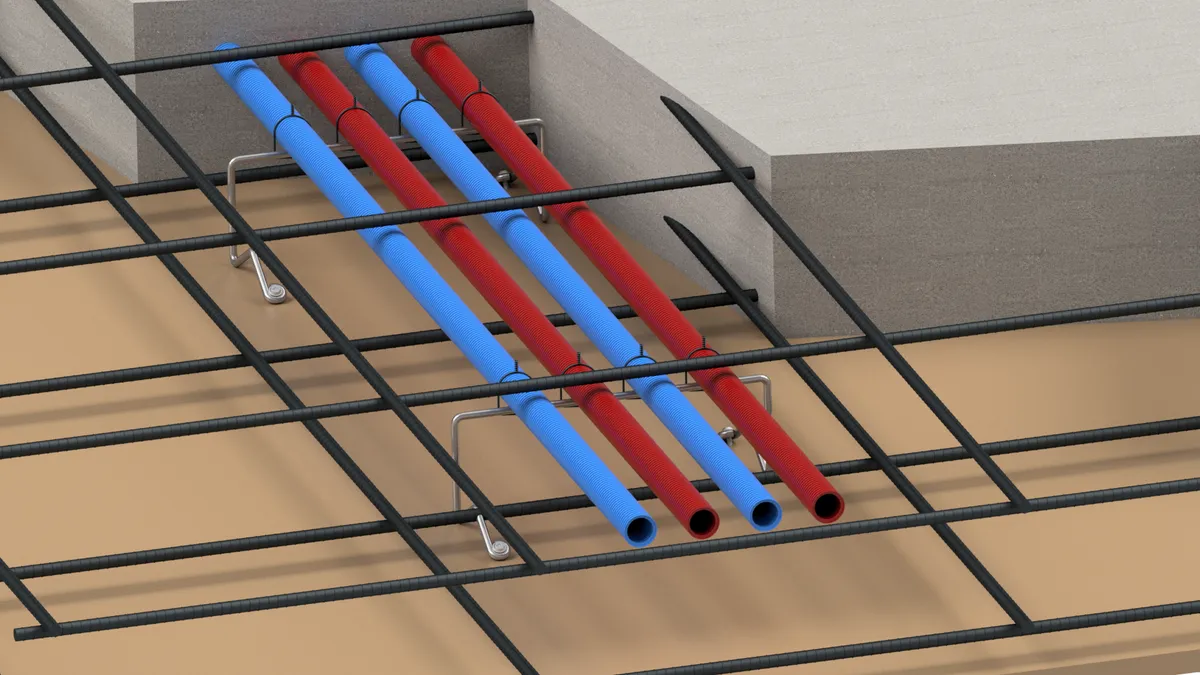

310
CIP Trapeze
3 to 4″ tall, 8 to 12″ wide

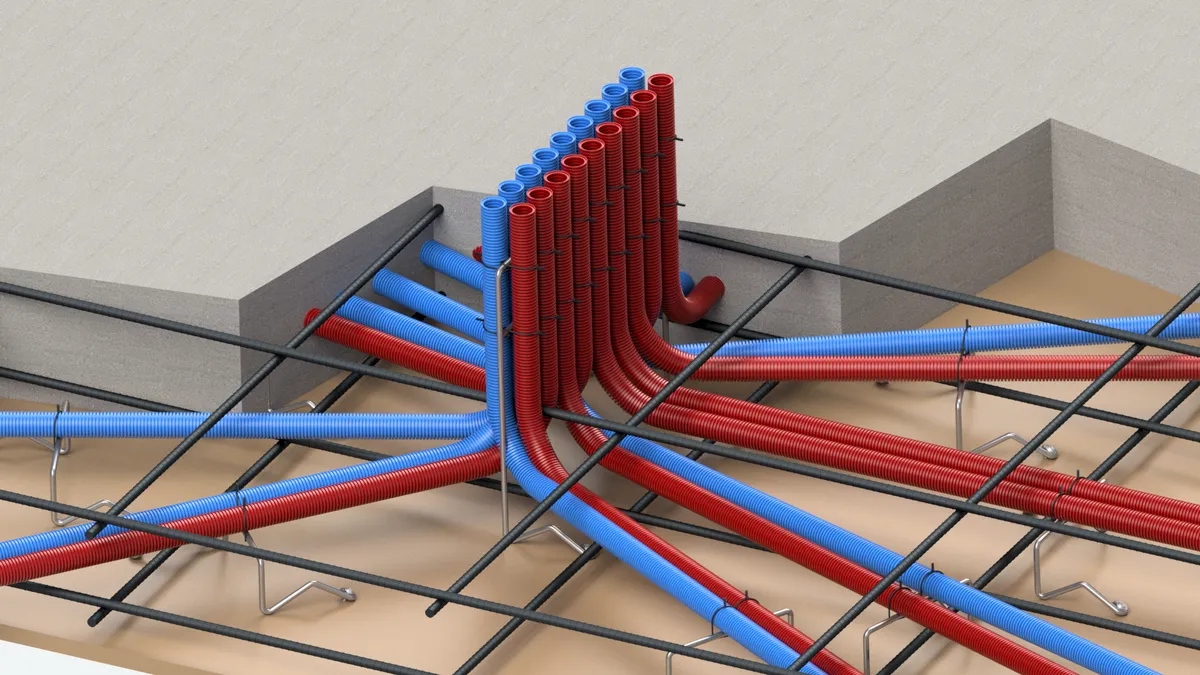

311
CIP 2-tiered Trapeze
two tiers in the form
312

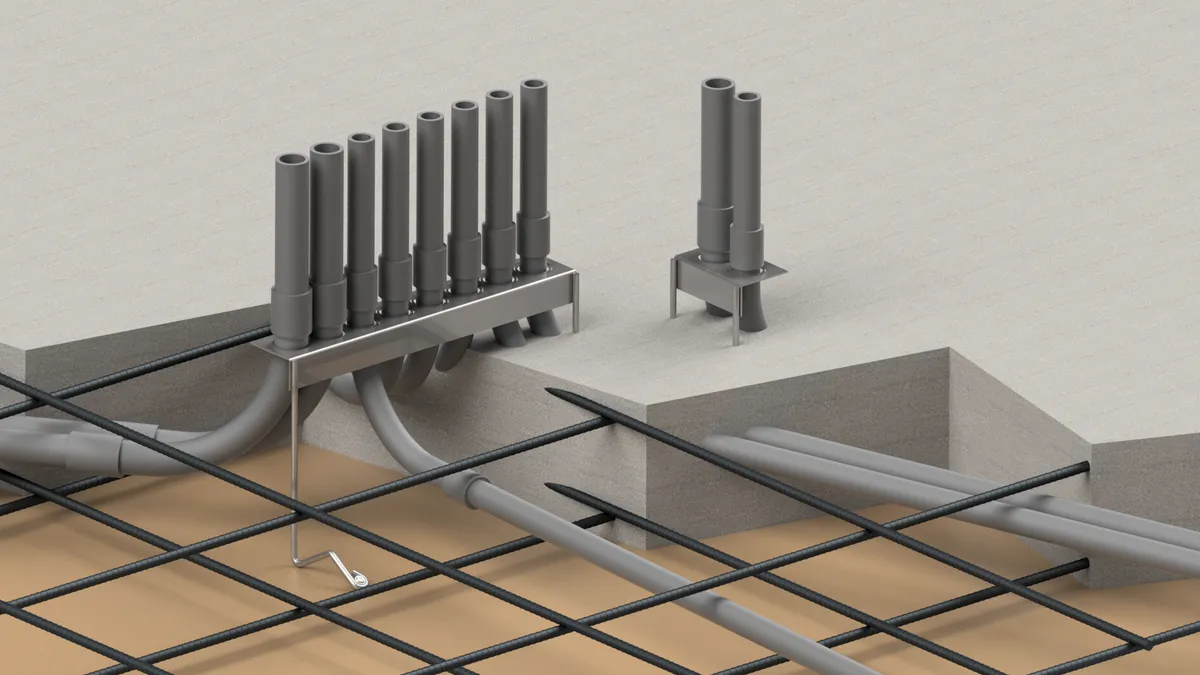

CIP KO Support
knockout sizes 1.25 to 1.50″, 5 to 12 holes
312HD
CIP KO Support HD
heavy-duty, up to 21″ wide

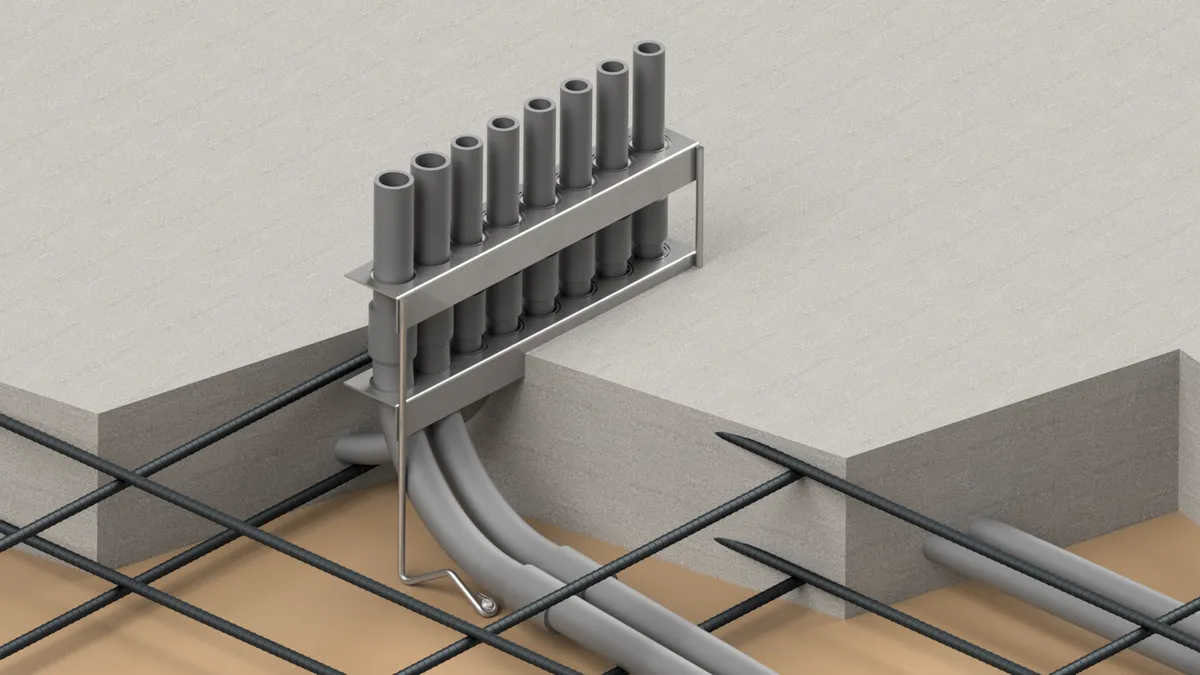

313
CIP 2-tier KO Support
two knockout tiers

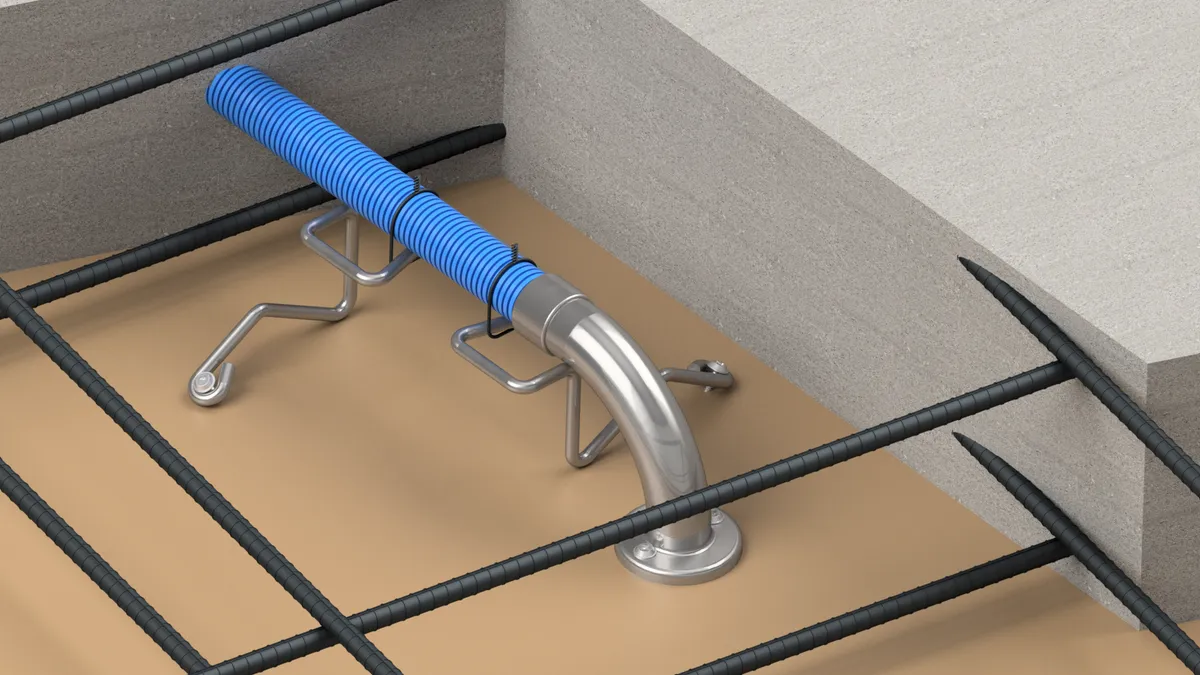

320
Street 90 Support
by trade size

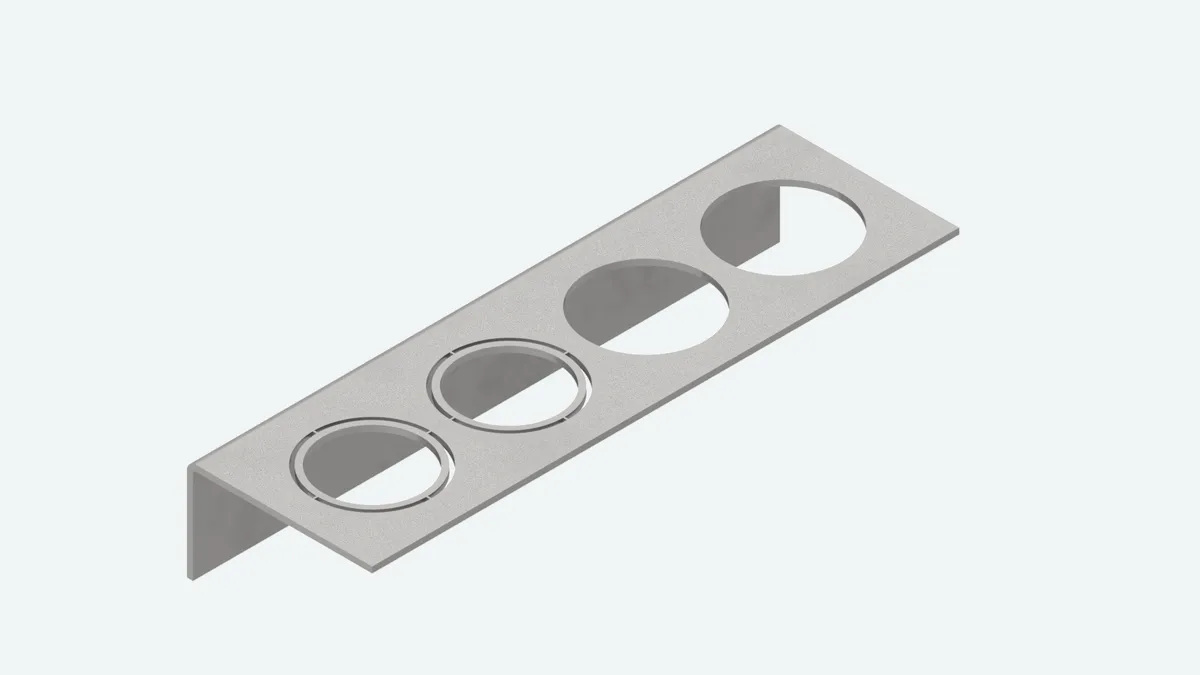

CIP100
KO L-Metal Channel
1.00 to 1.50″ KO sizes

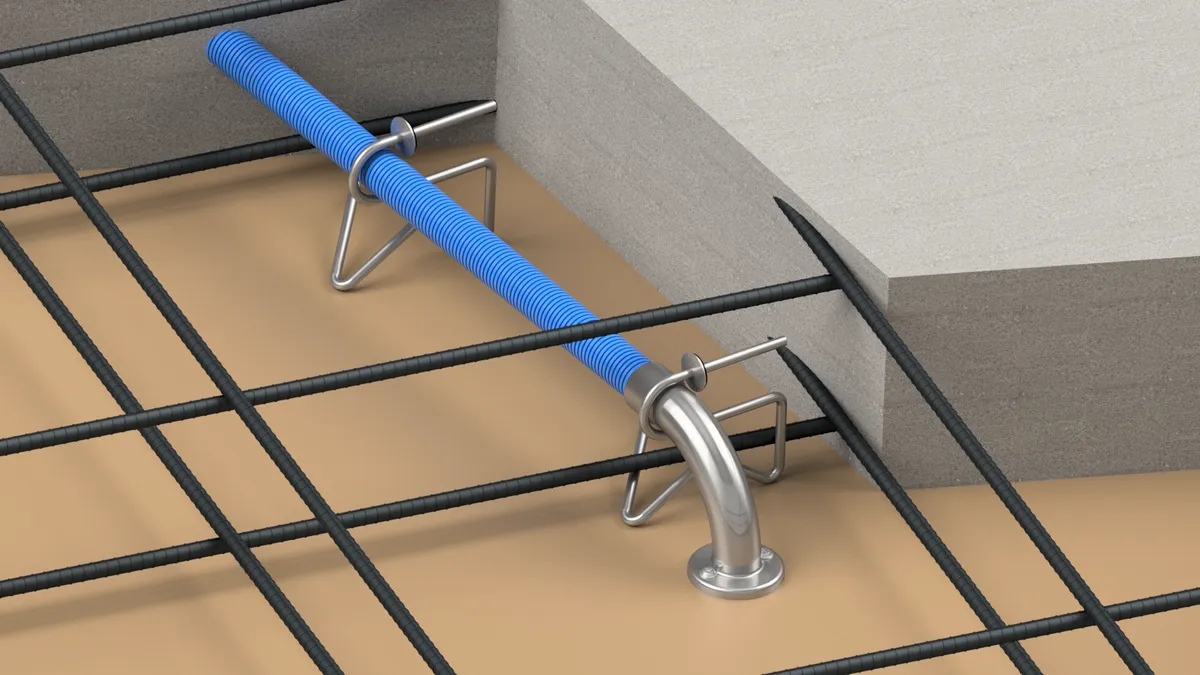

321
CIP Chair Support
chair support in the form
322

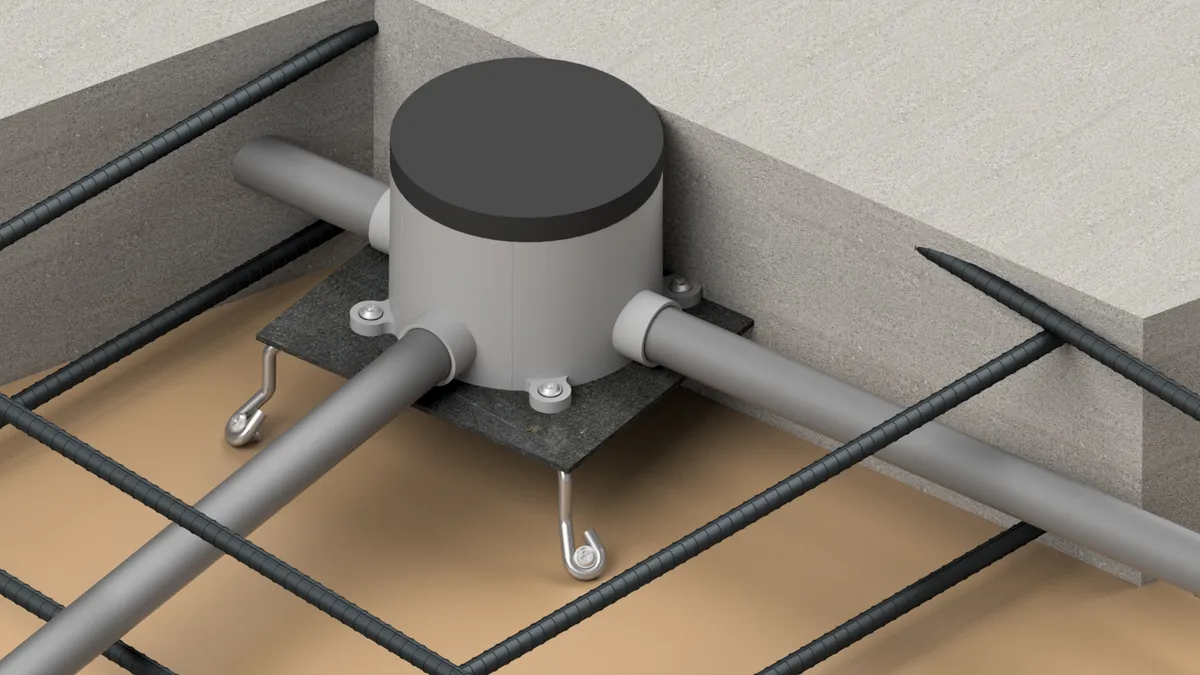

Table Top Box Support
CIP box support
323

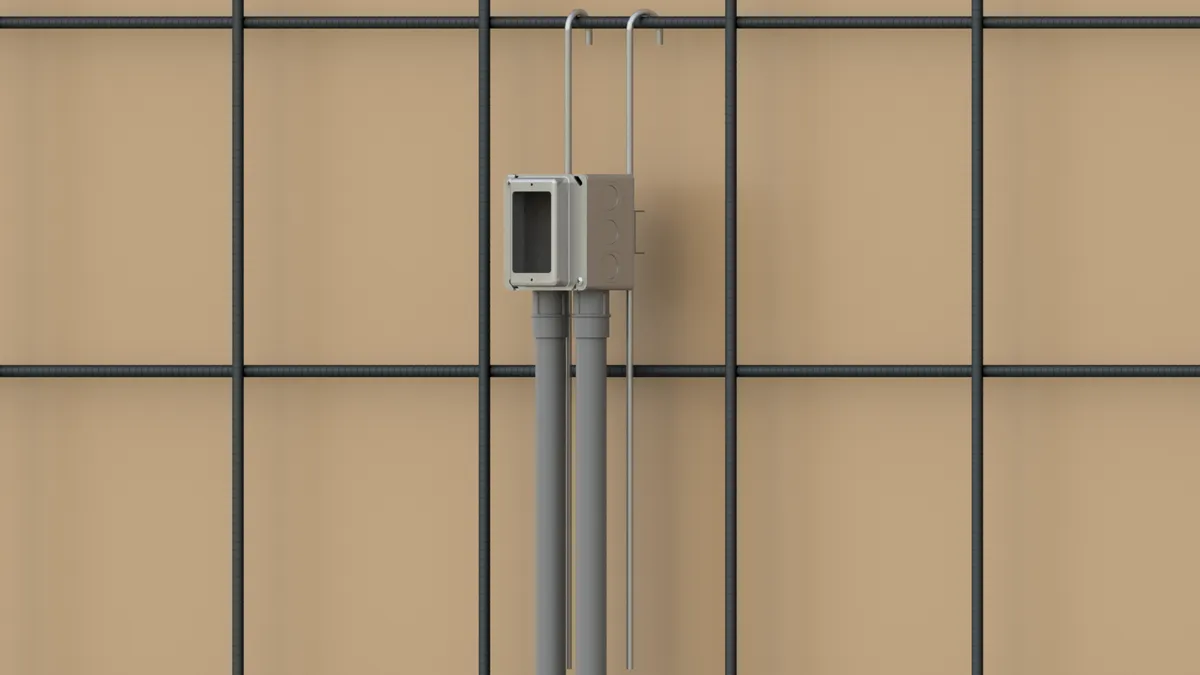

Wall Box Hook
CIP box support, wall forms

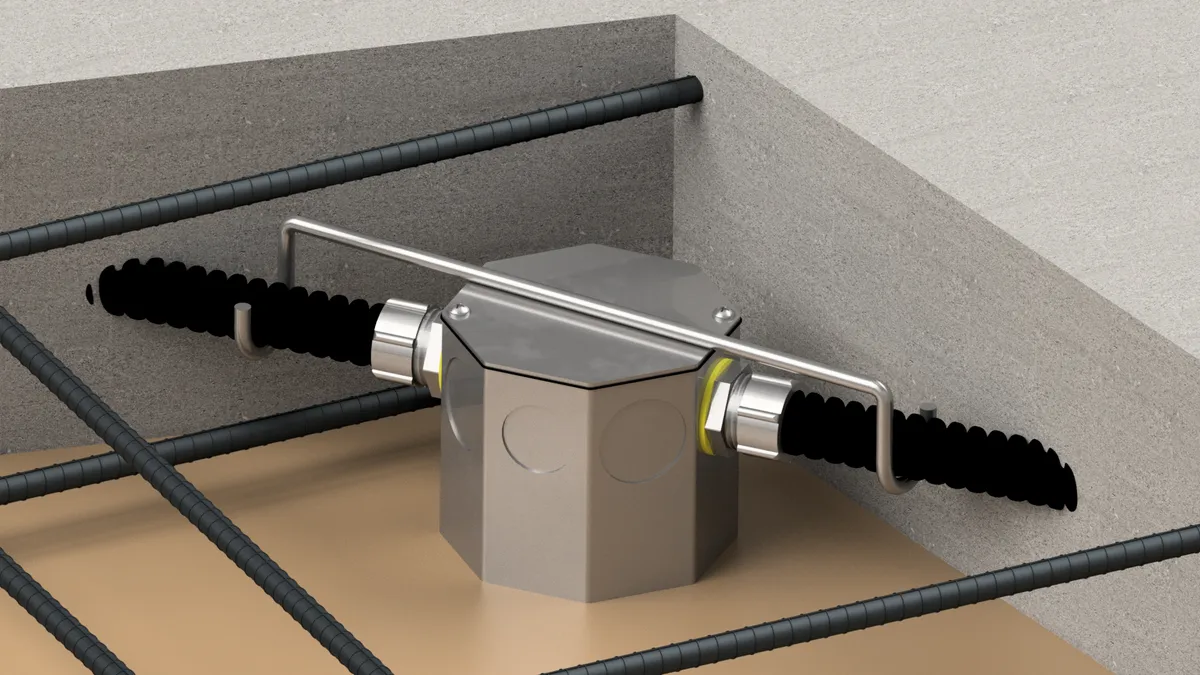

324
Robey Rod
CIP box support
340

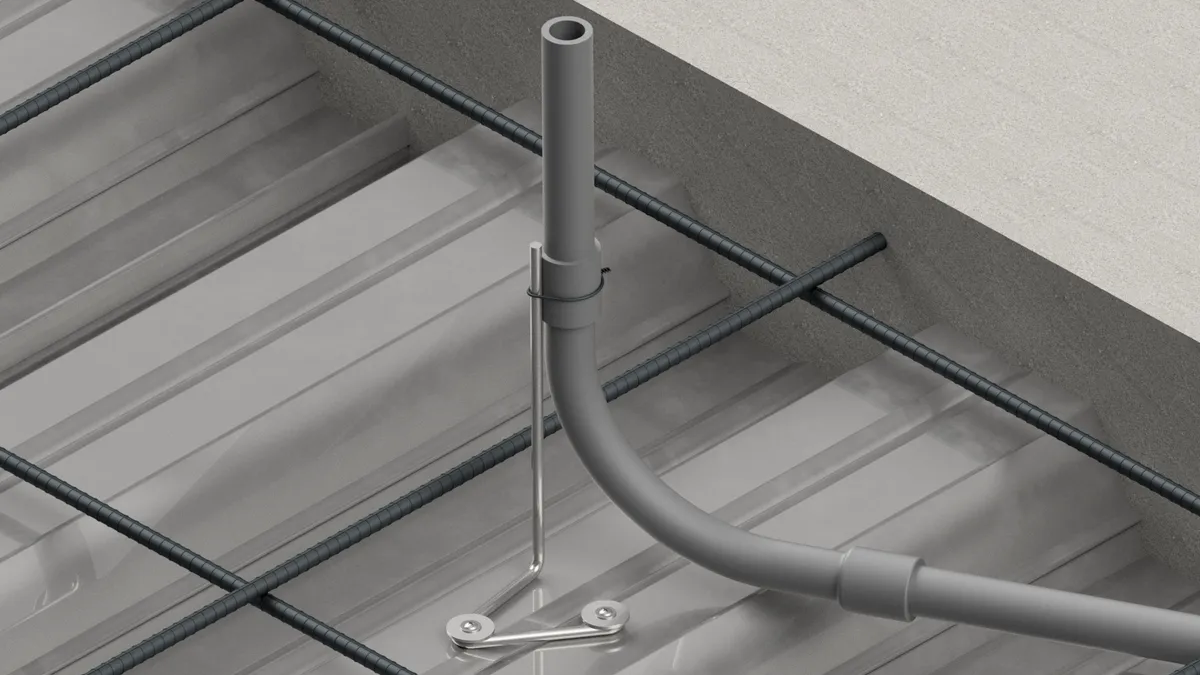

Steel Deck Tree
tree for steel deck pours

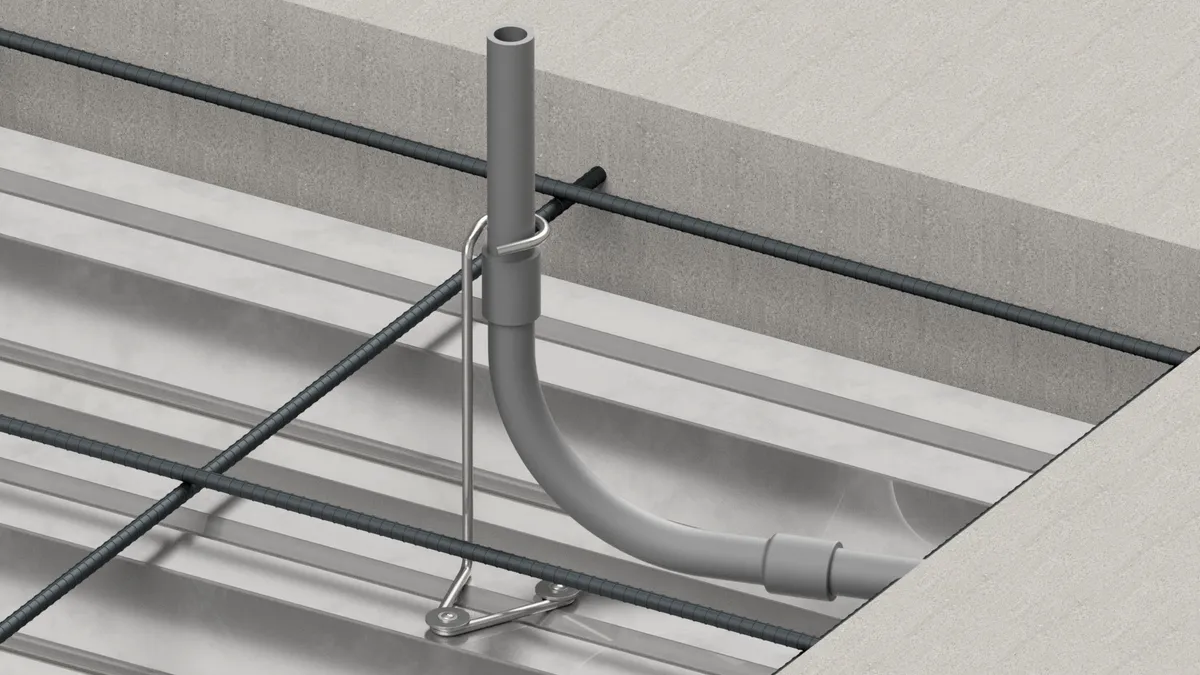

341
Steel Deck Tree with Loop
looped tree for steel deck pours
370

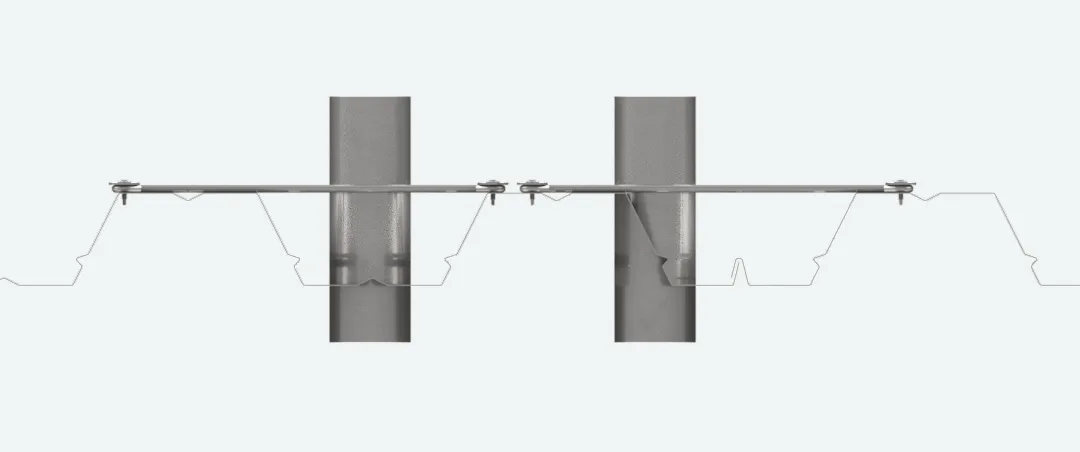

Simple HD Metal Deck Sleeve
deck sleeve for pipe penetrations

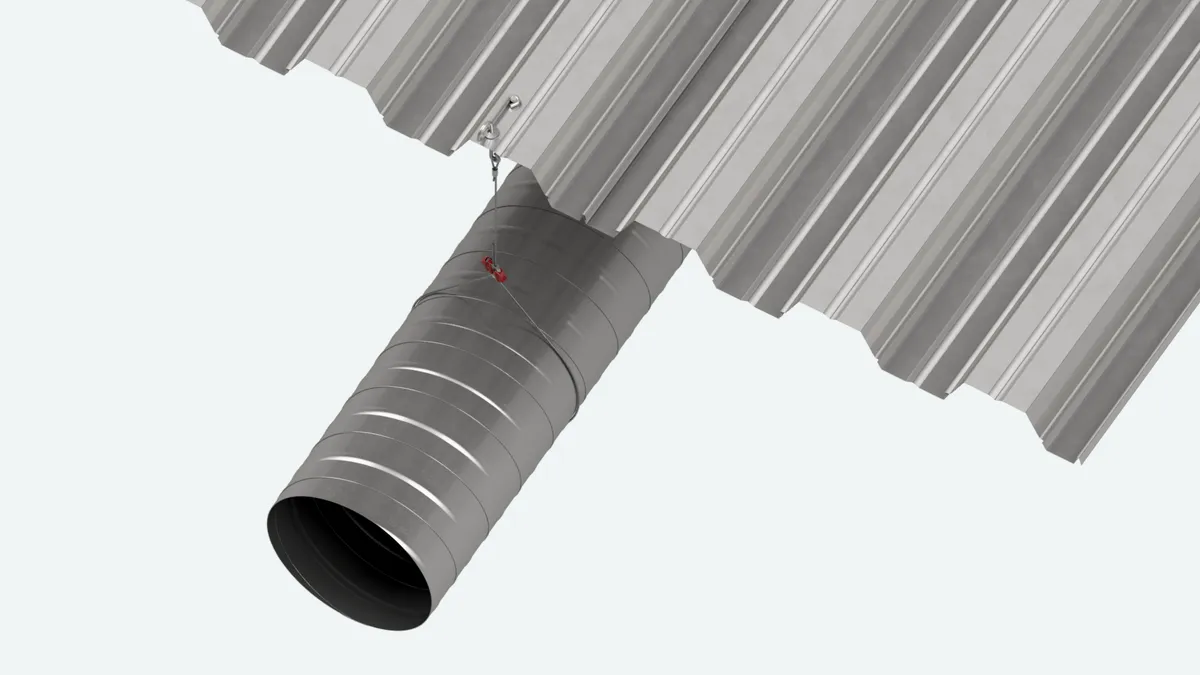

380
CIP Loop
cast-in loop, hangs the rod after the pour

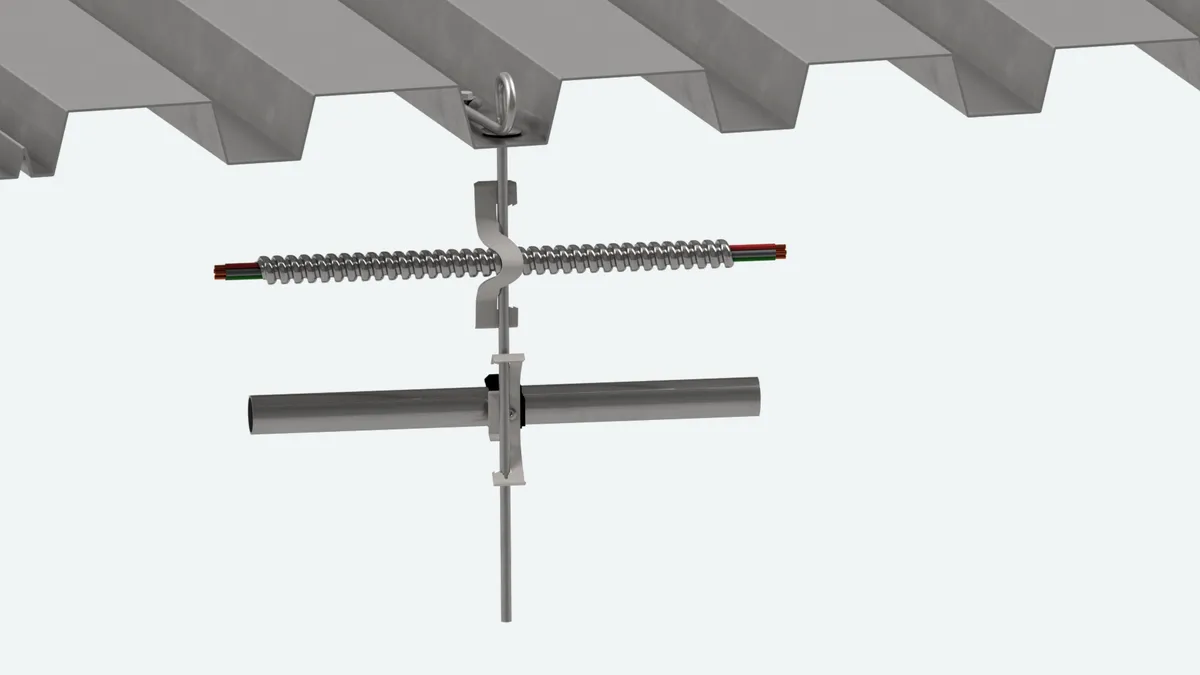

381
CIP Straight Rod
cast-in straight rod

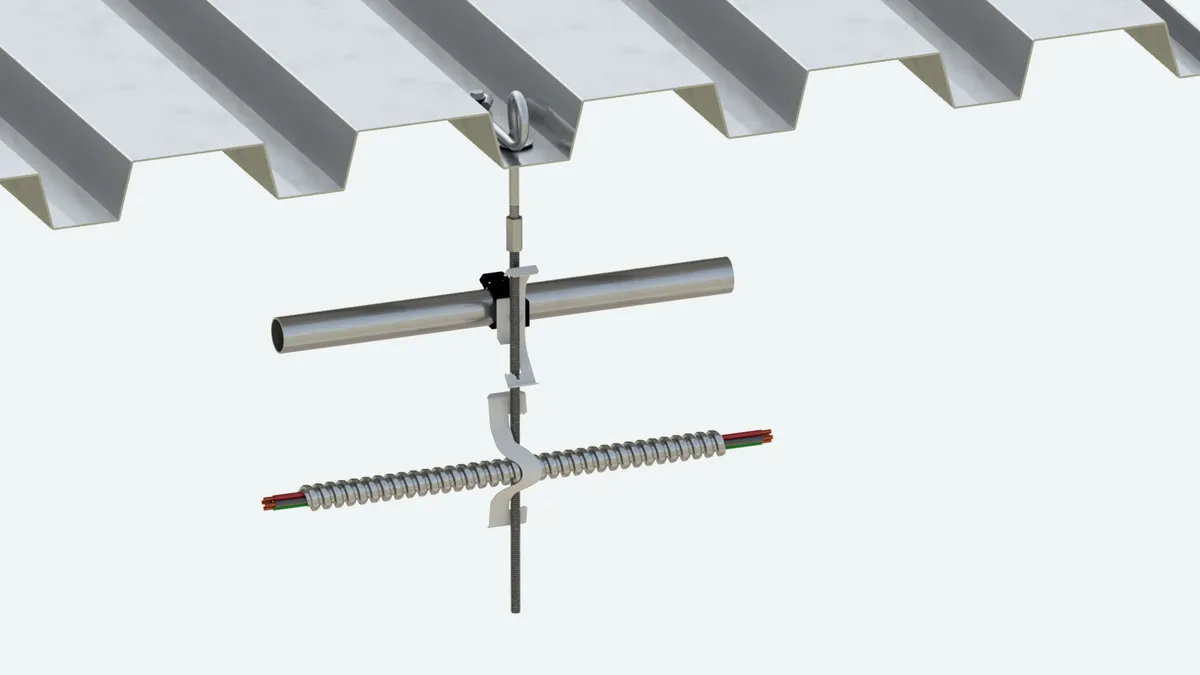

382
CIP Threaded Rod
cast-in threaded rod

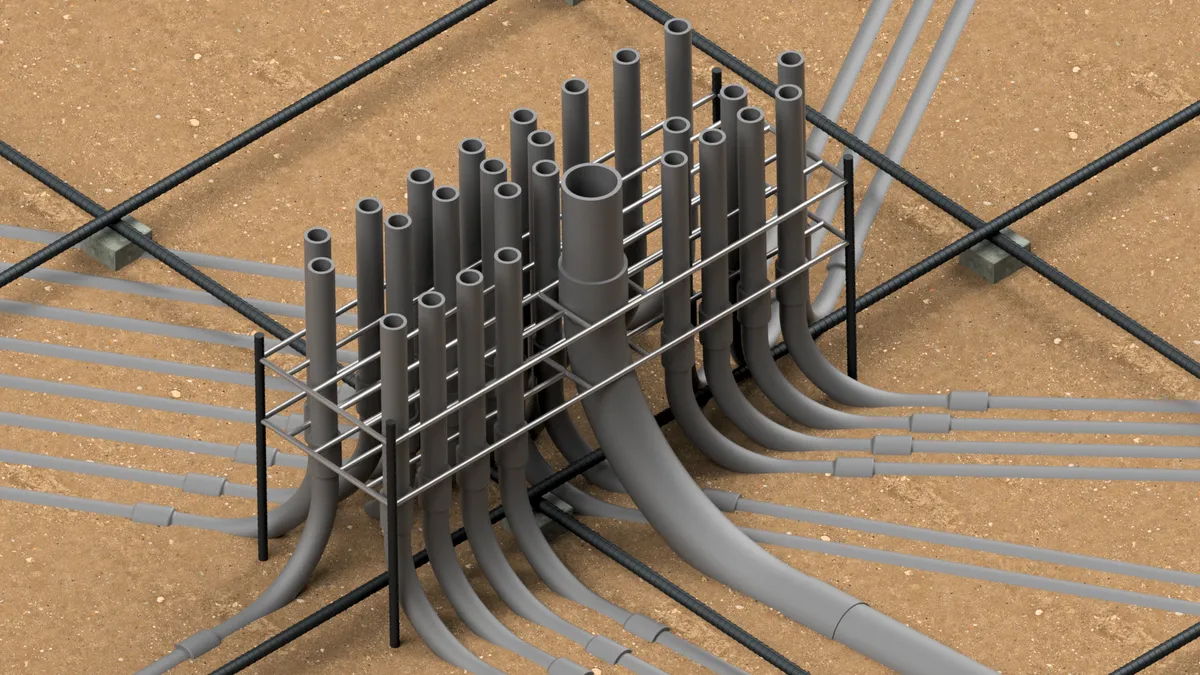

430
CIP Panel Cage
panel cage for pipe and conduit
In the dirt
401

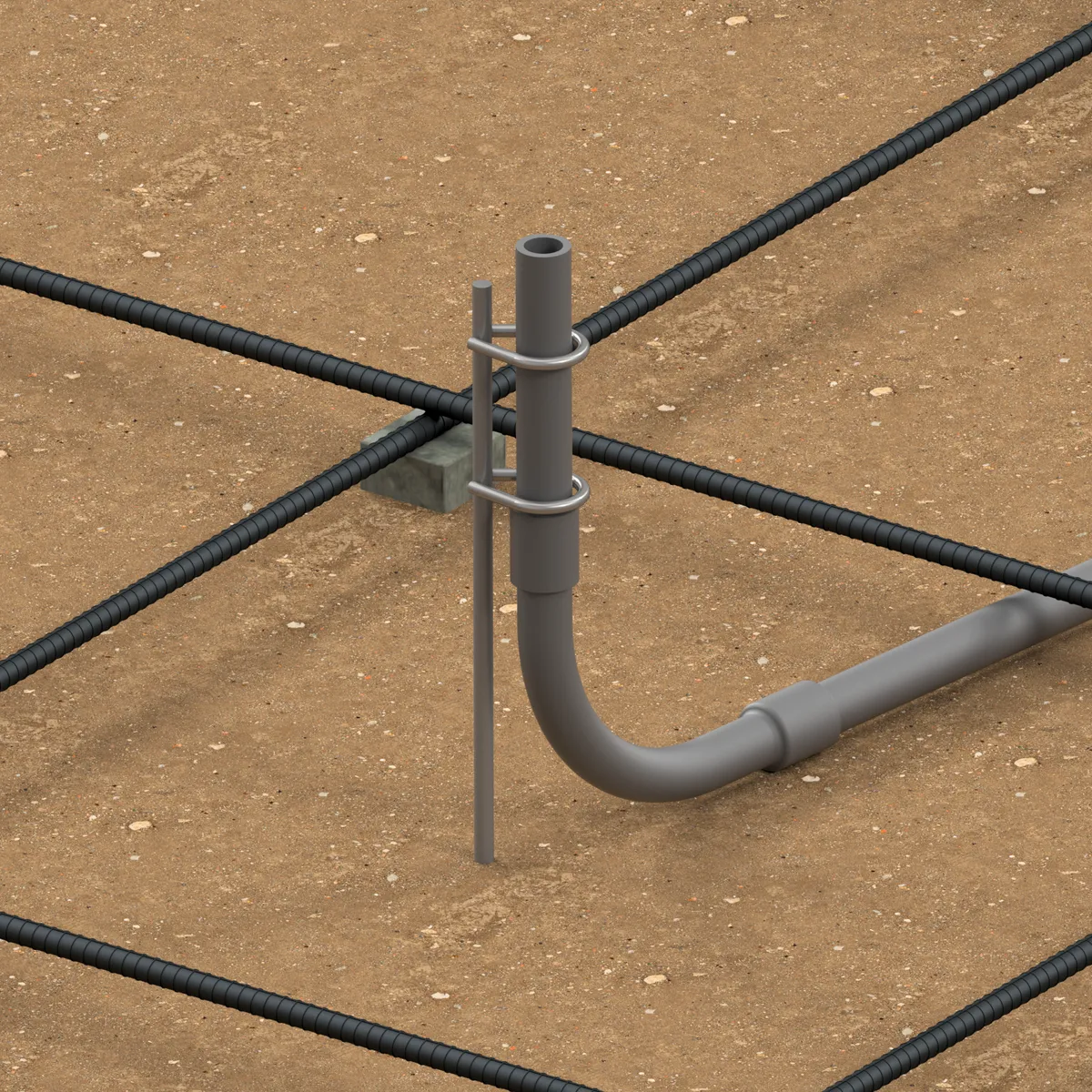

SOG Support with Loop
single loop, set before the slab

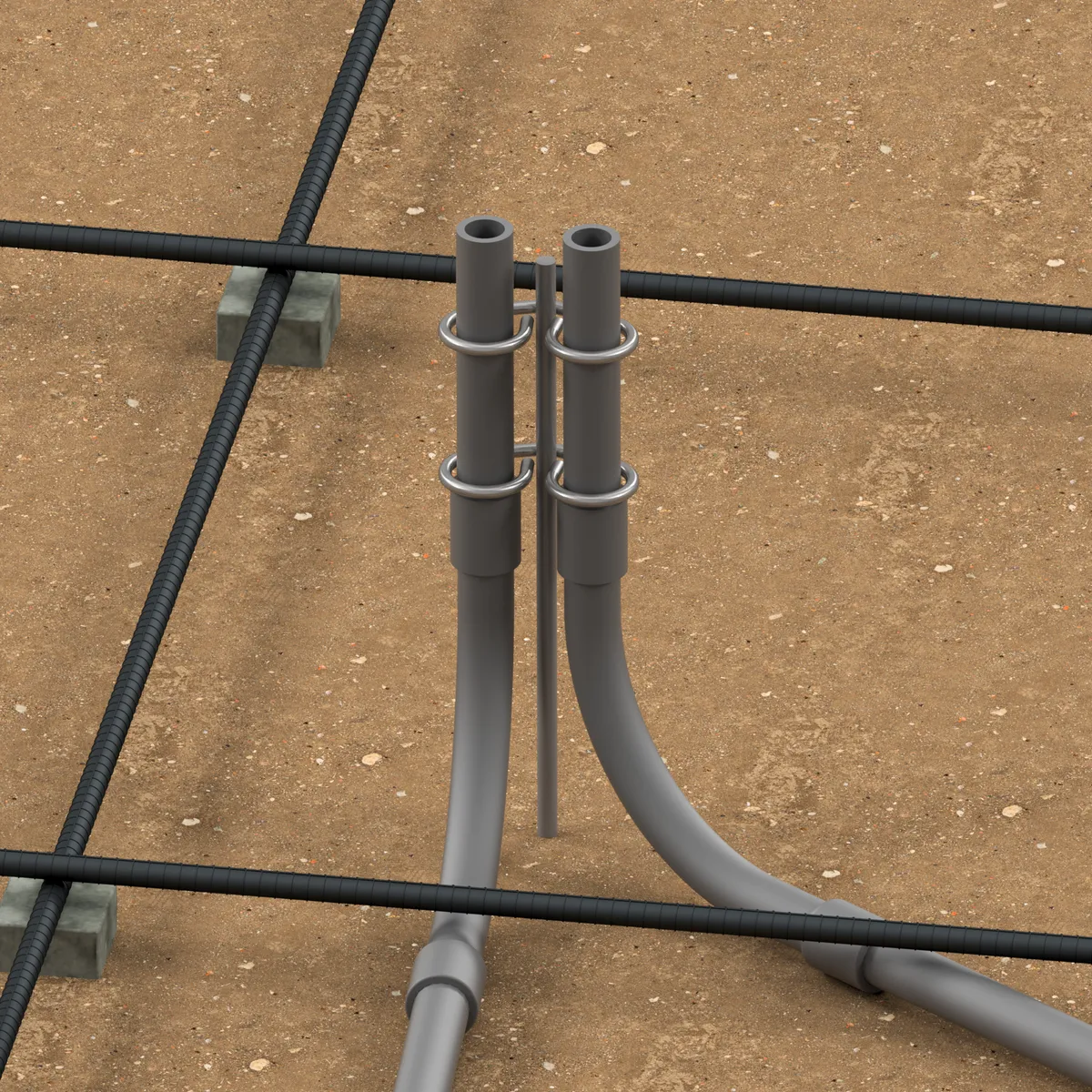

402
SOG Support with 2 Loops
two loops per support
403

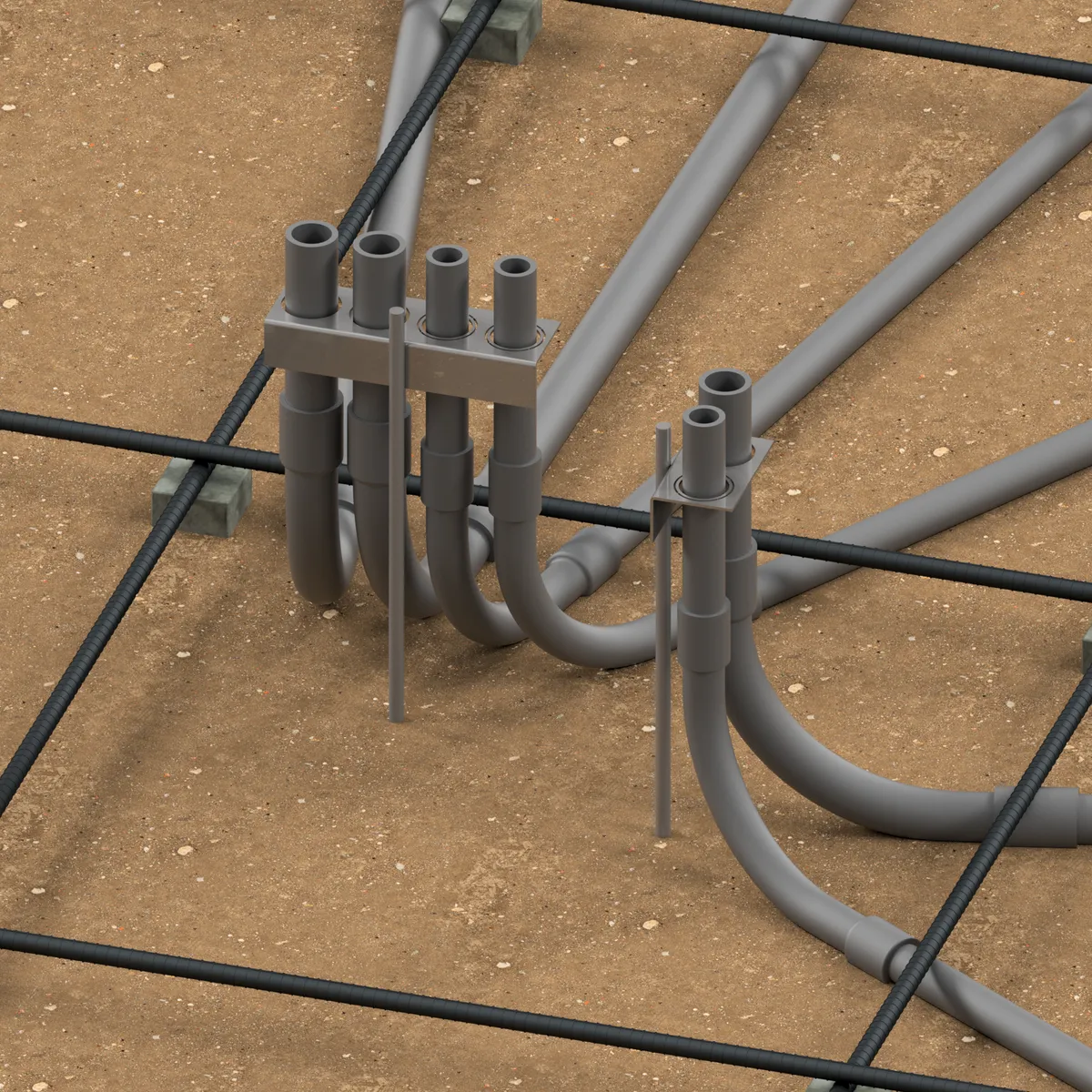

SOG KO Support
knockout support for slab-on-grade pours

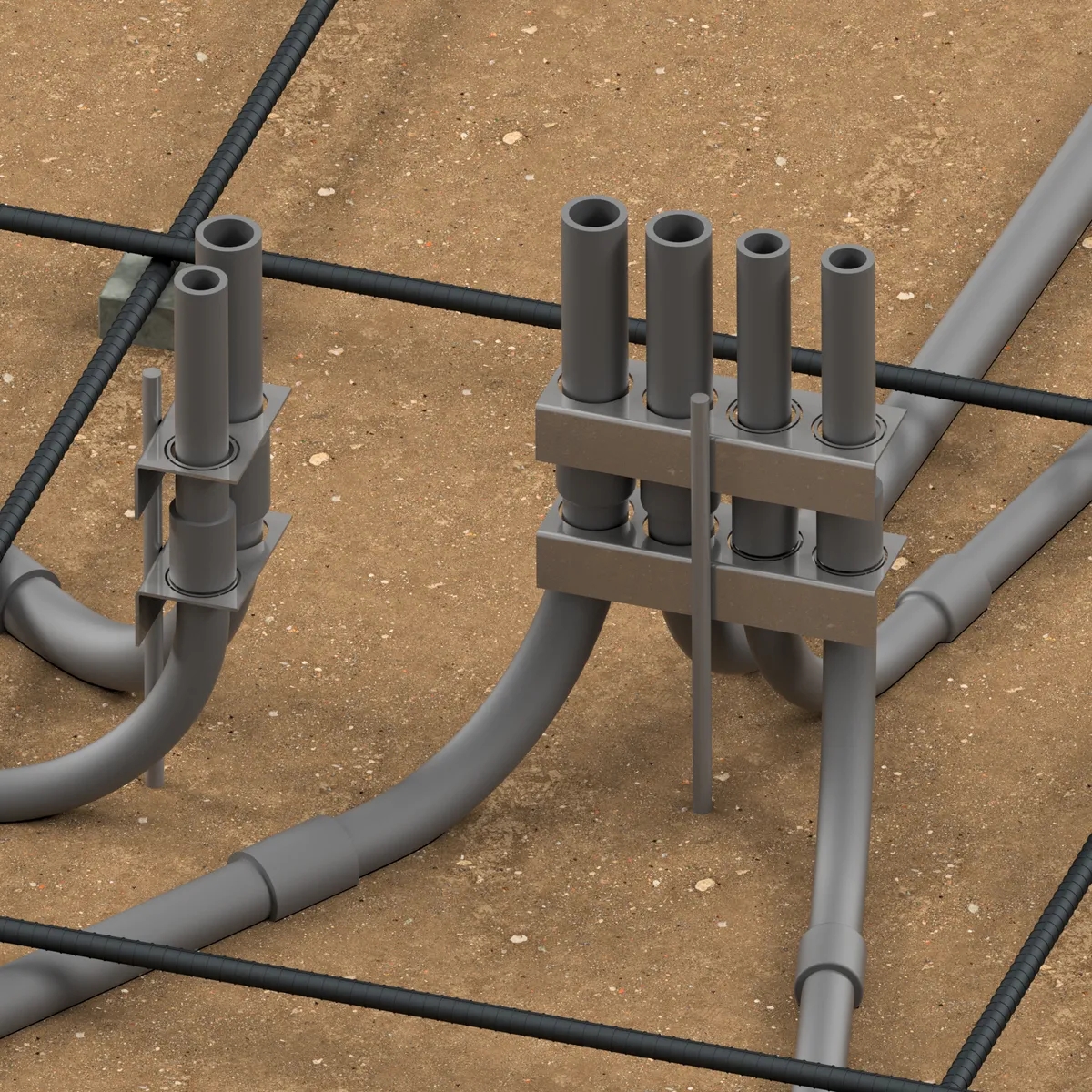

404
SOG 2-Tier KO Support
two knockout tiers in the slab
405

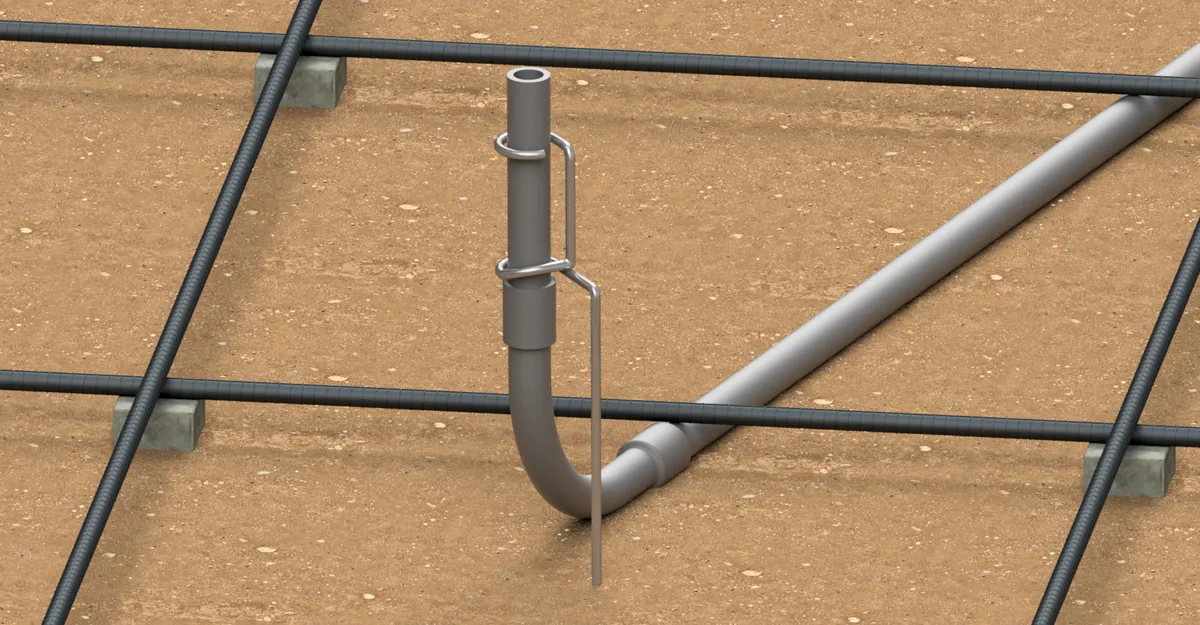

SOG Slick Rod Support
slick rod, set before the slab
406

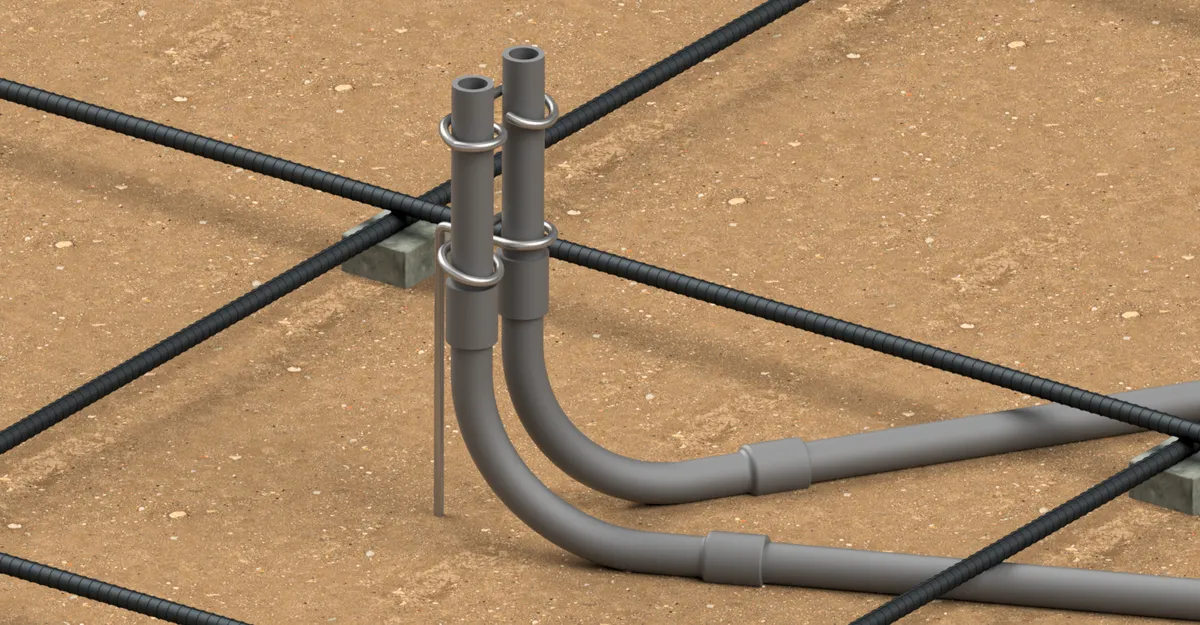

SOG 2-Tier Dbl Loop Slick Rod
two tiers, double loop
412

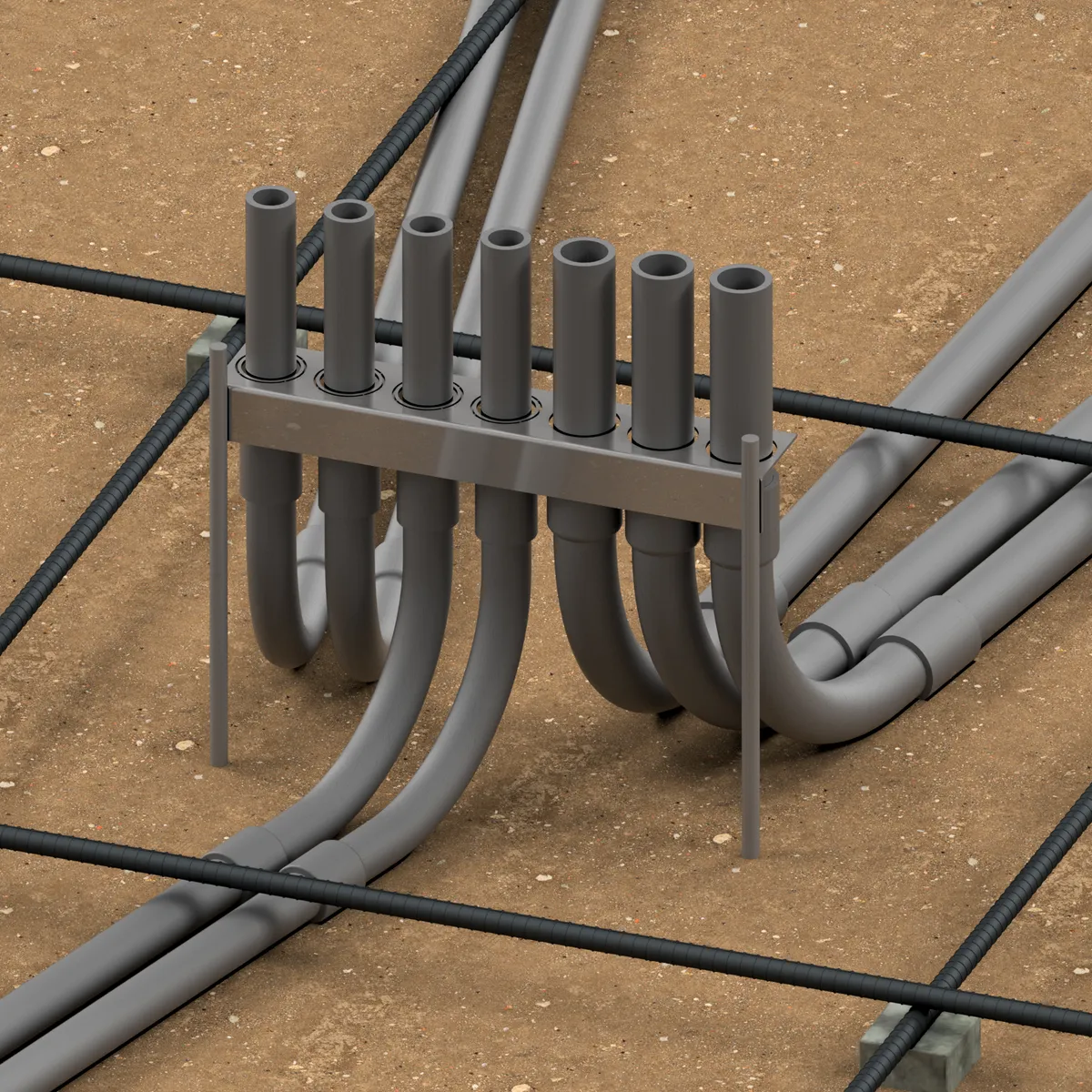

SOG KO Trap
knockout trapeze for slab-on-grade

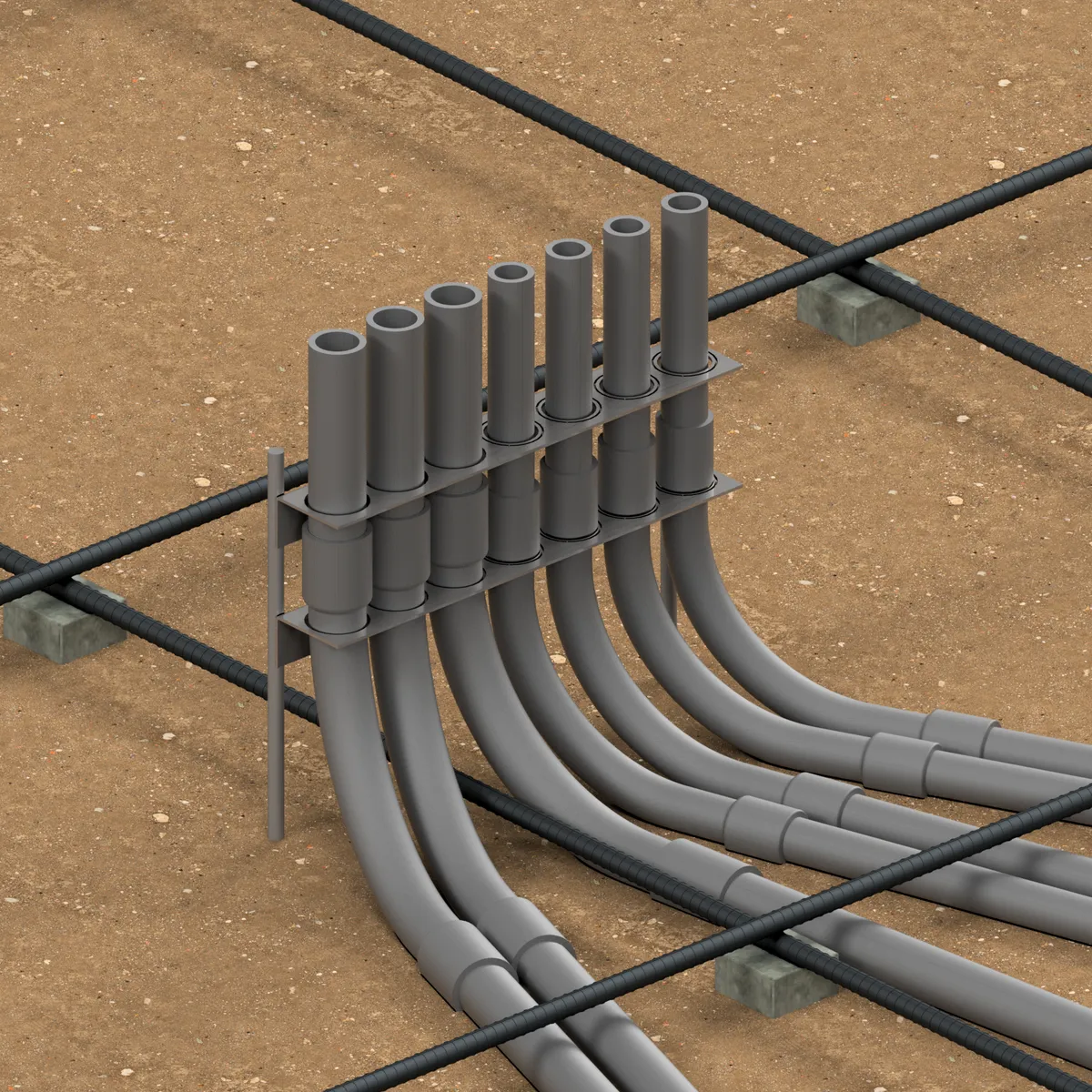

413
SOG KO Trap, 2-tier
two trapeze tiers in the slab

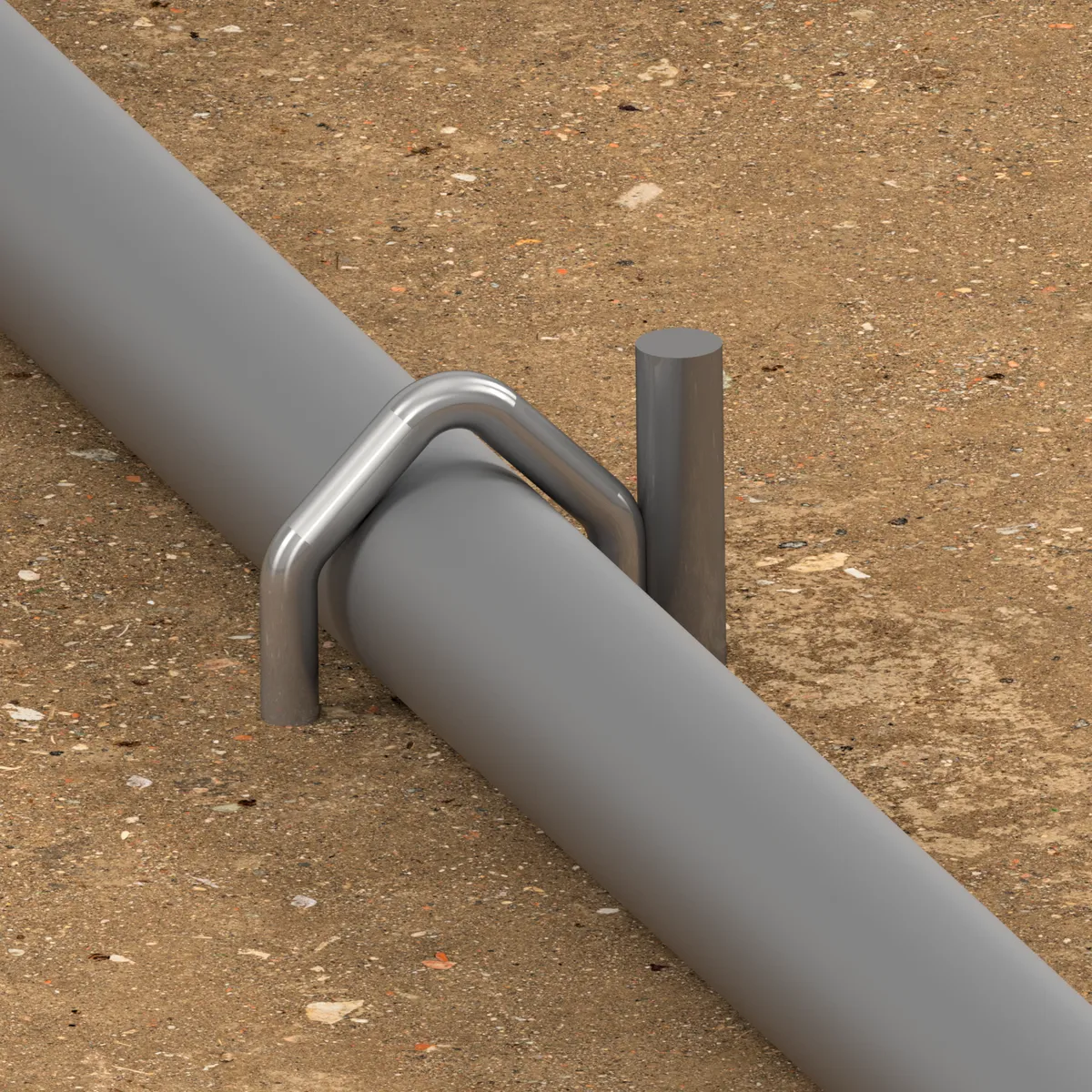

420
Simple Candy Cane
candy-cane profile stub-up

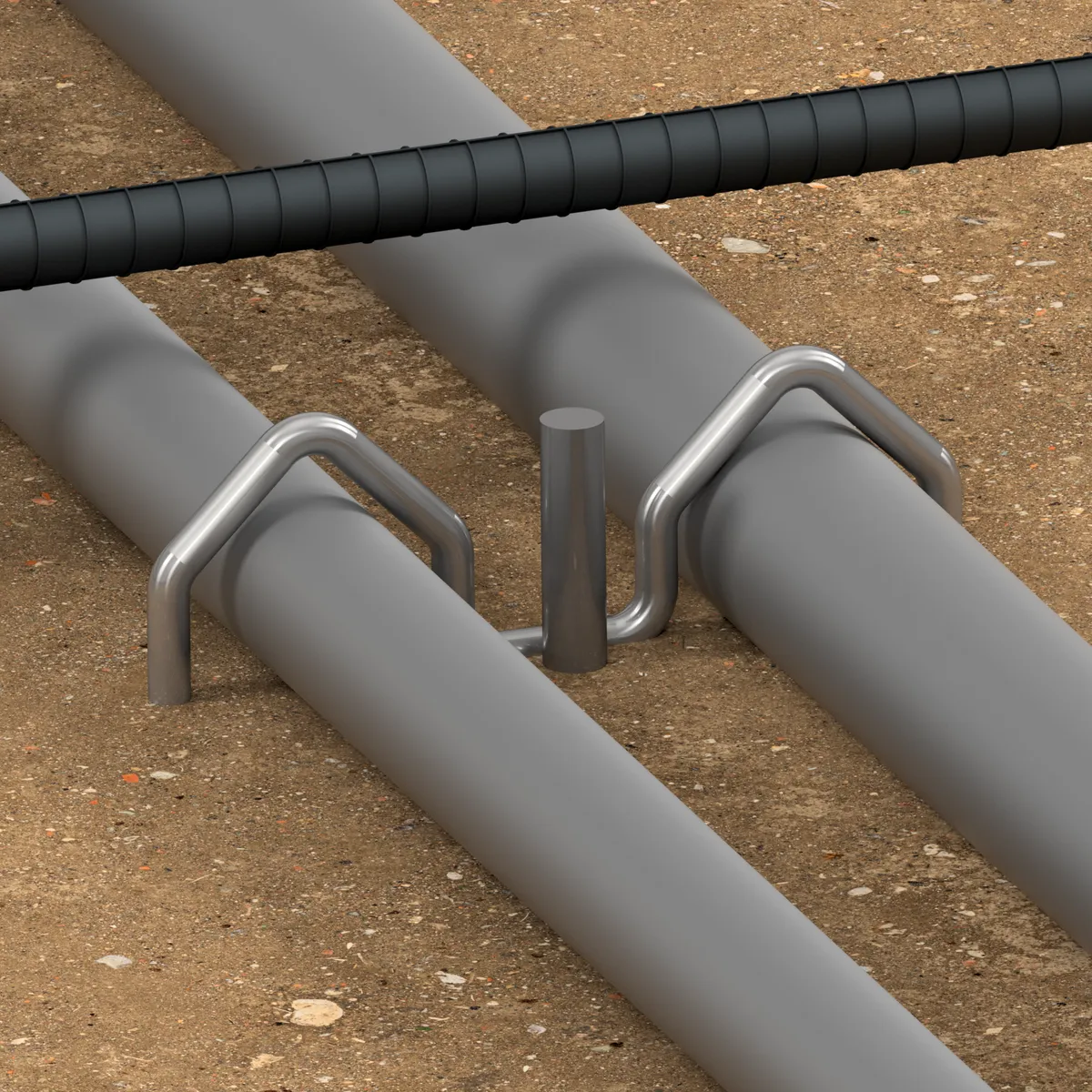

421
Simple DBL Loop Candy Cane
double loop candy cane

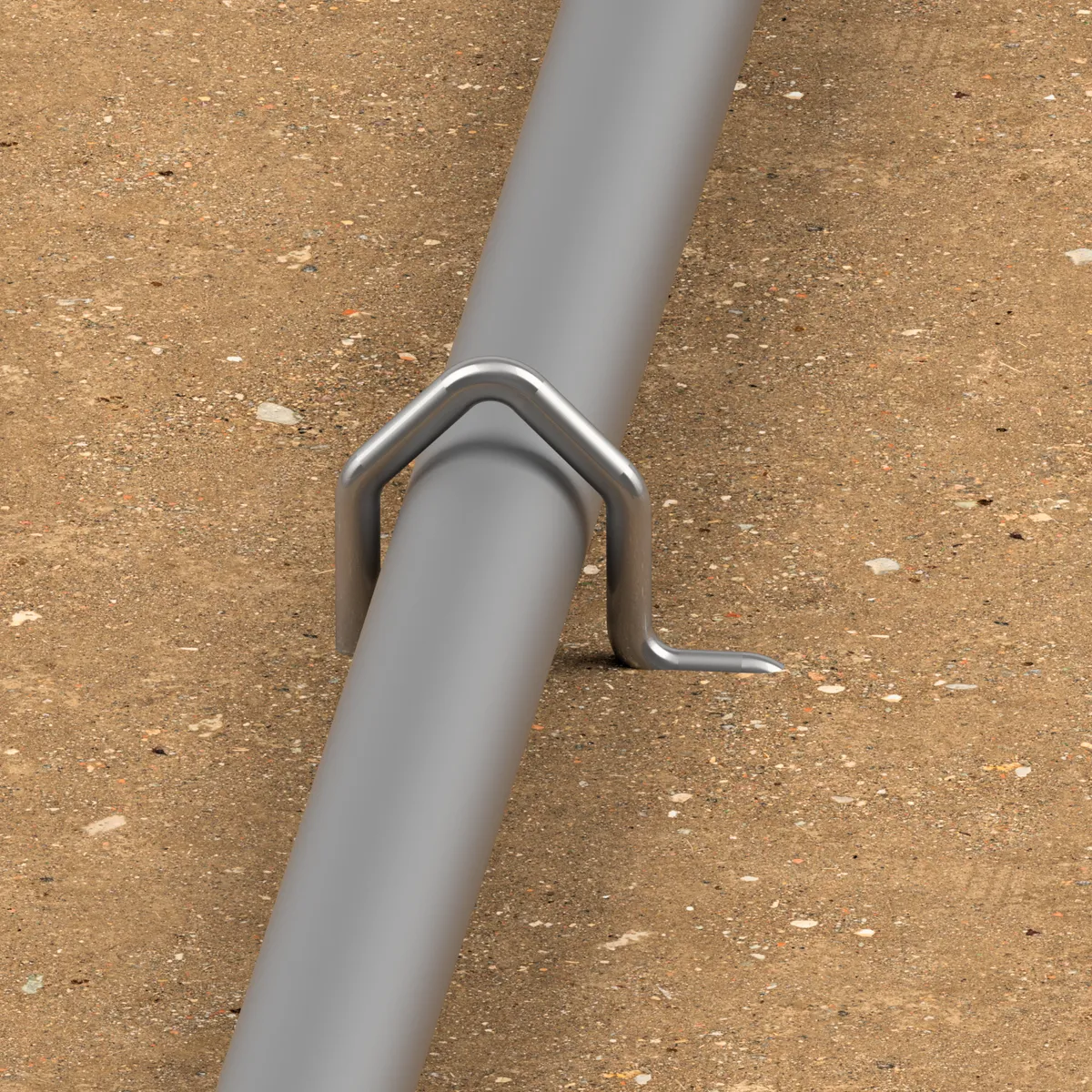

422
Simple Pipe Anchor
1-1/2″ ID
423

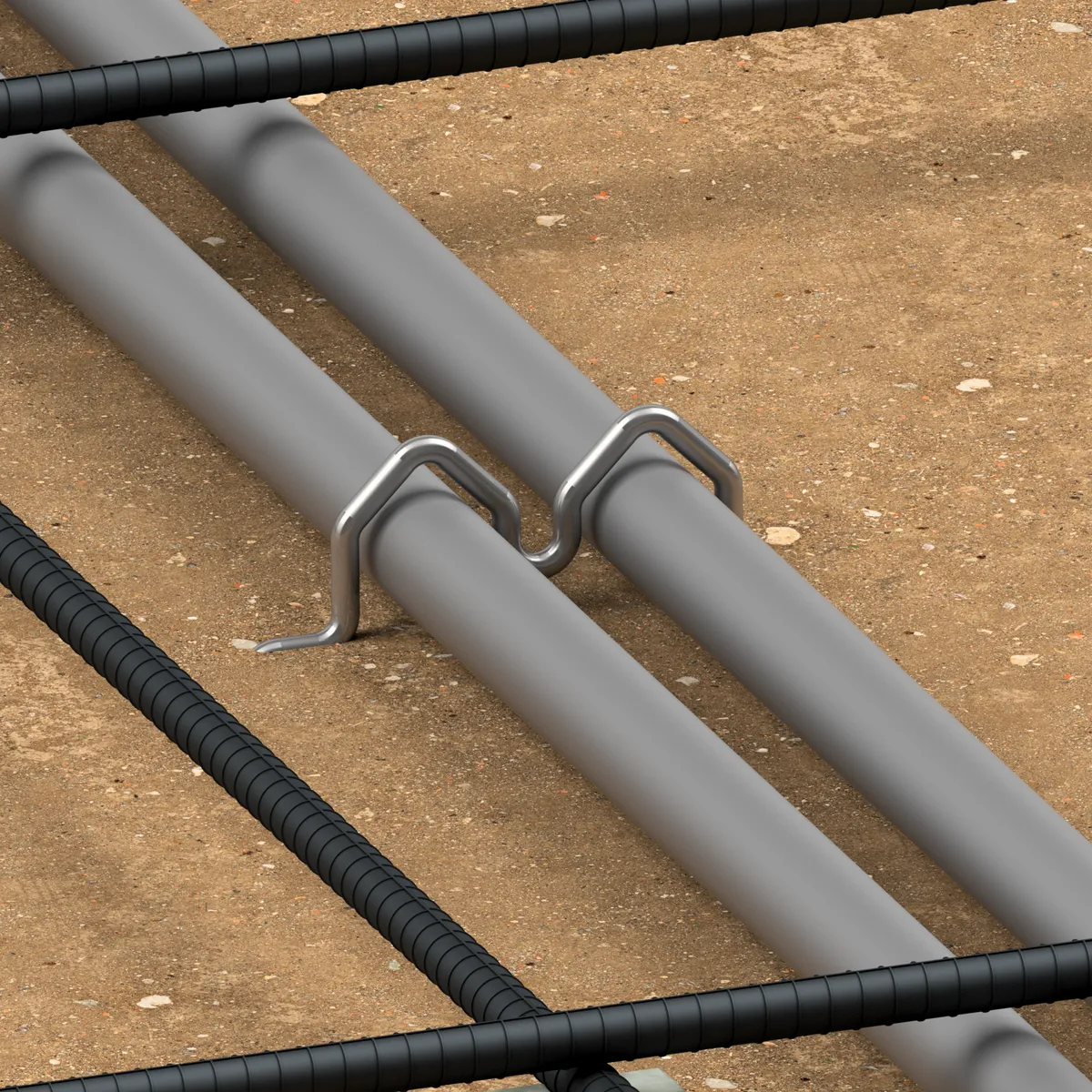

Simple DBL Loop Pipe Anchor
two loops per anchor
SC cable line
Swaged assemblies, #2 to #4 cable, terminated with the fitting the job needs, plus the devices that lock and carry them.

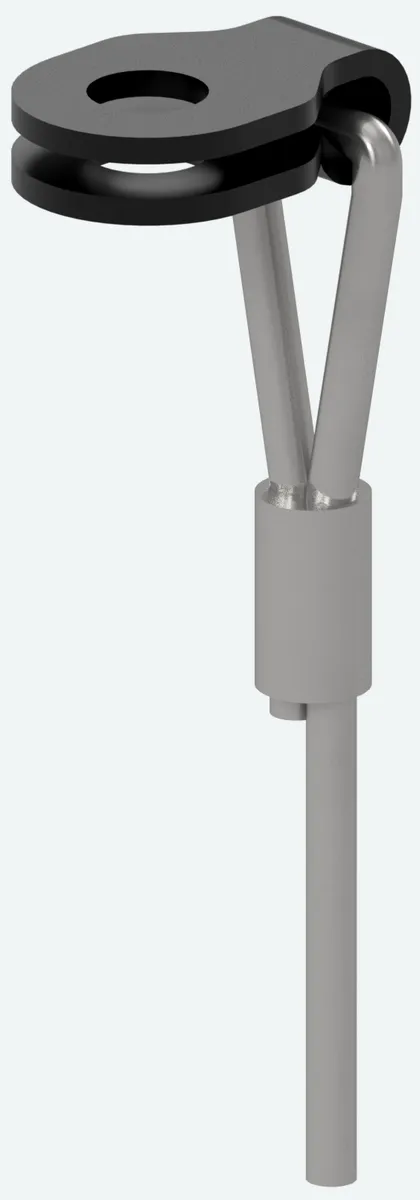

The Snap
cable locking device

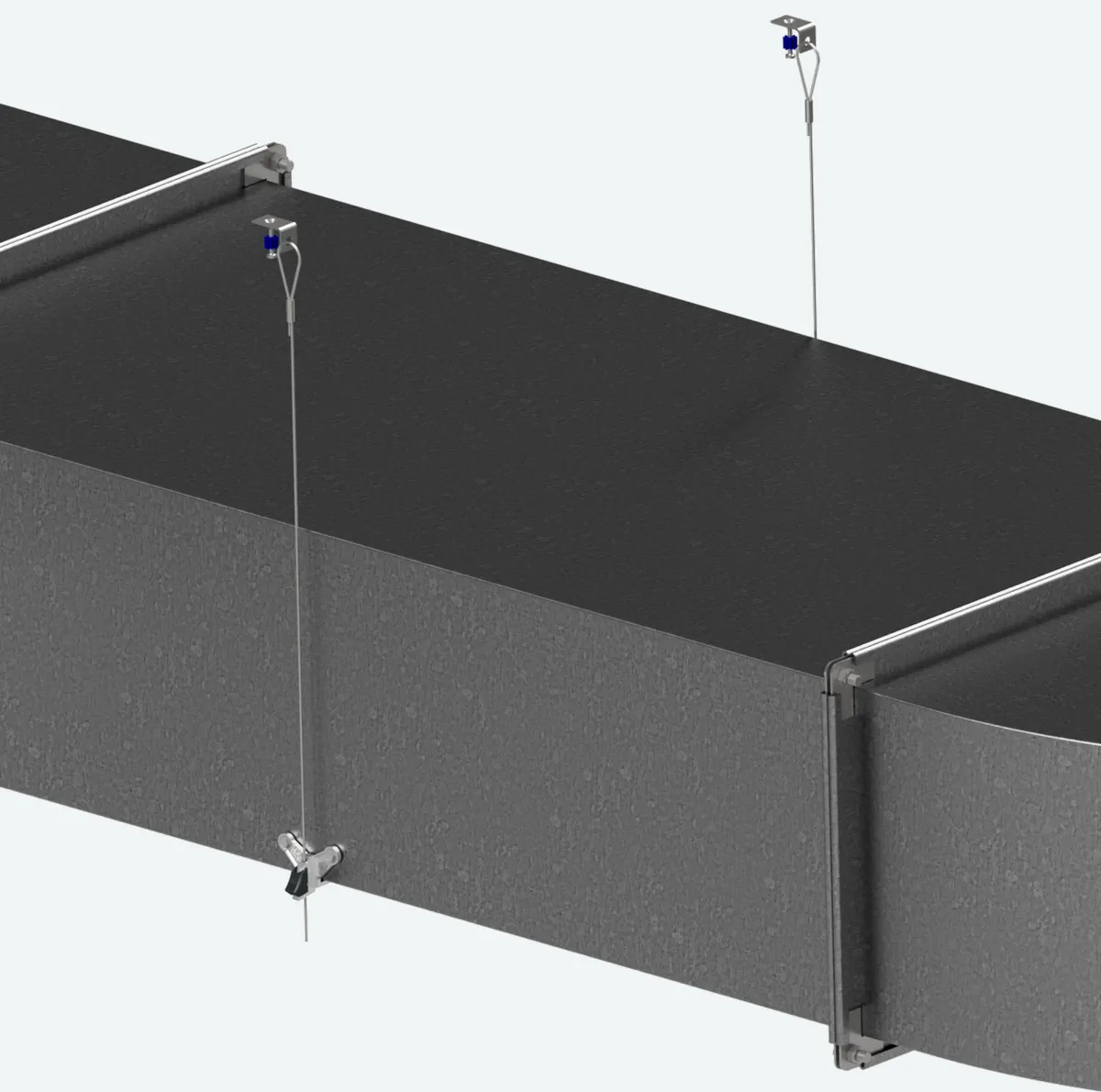

DS Device Supports
device on top, cables down below

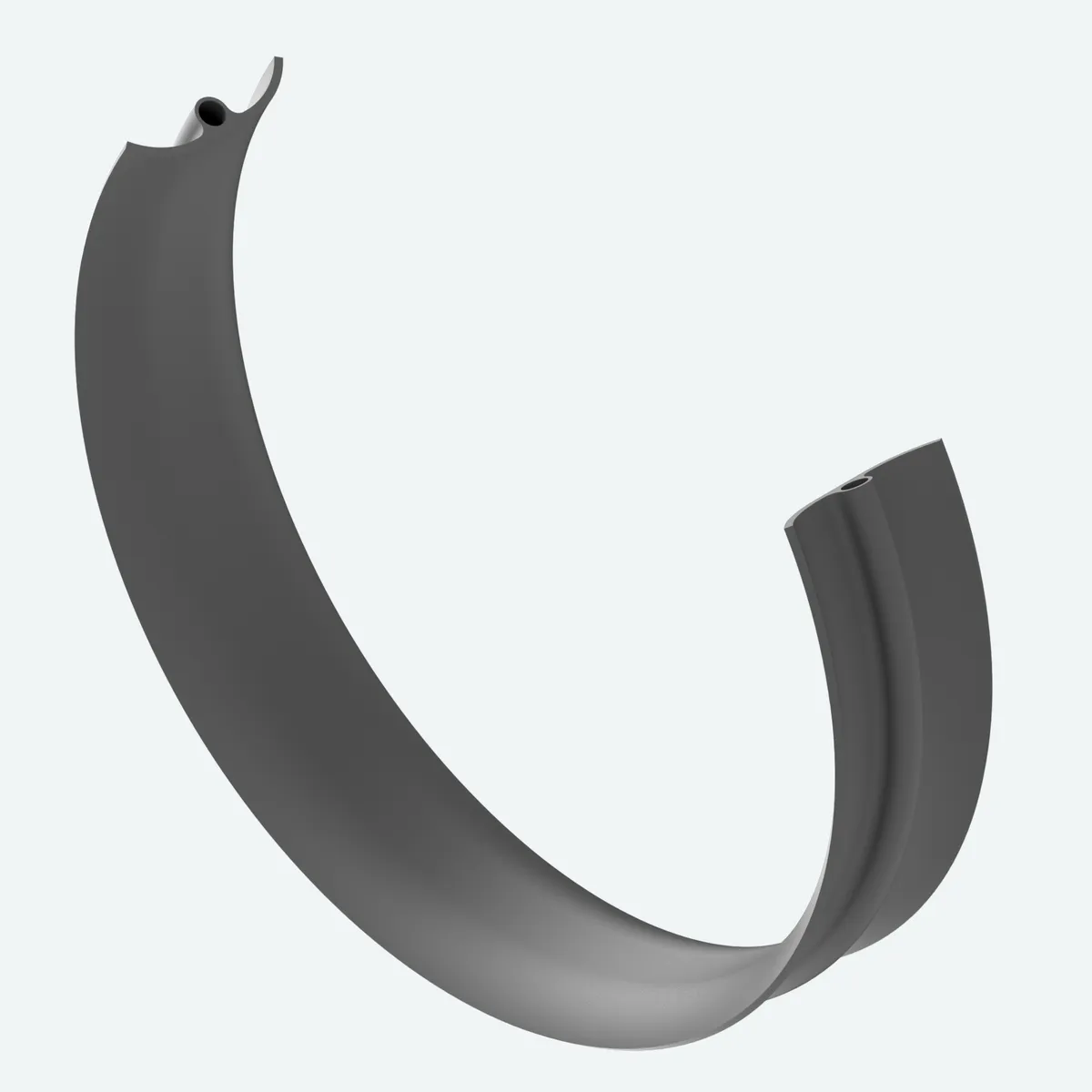

Flex Saddle
saddle support for cable runs

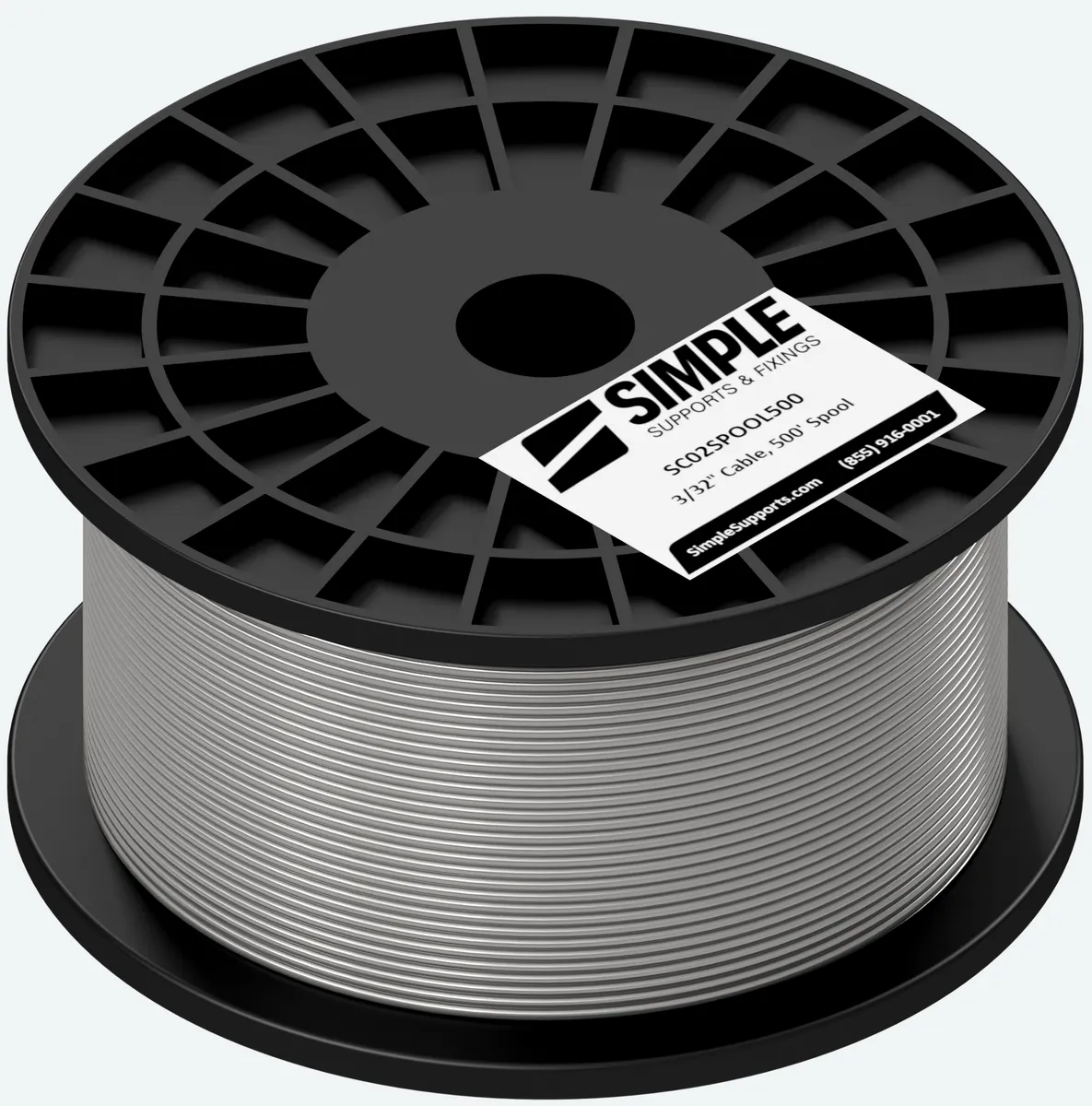

Cable Spools
#2 and #3 bulk cable

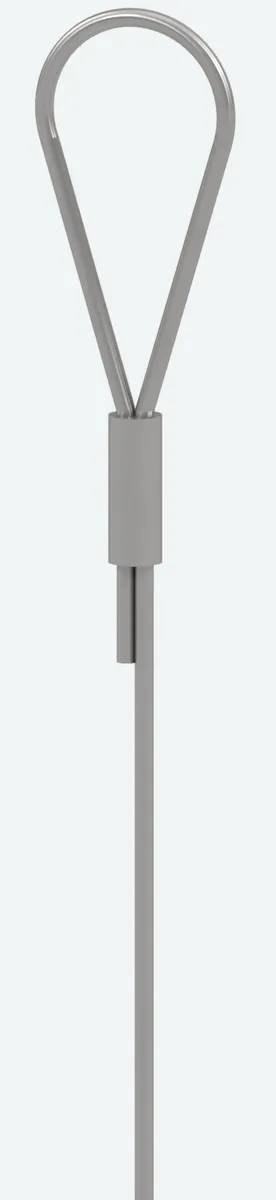

Swaged Loop
loop end, all cable sizes

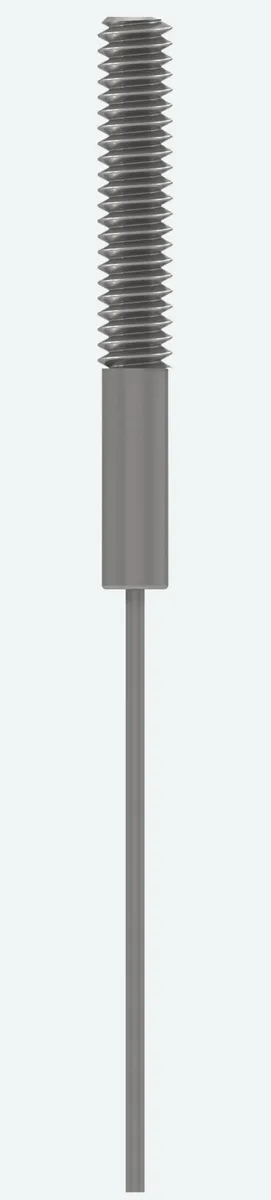

Threaded Stud
3/8″ x 3″ and 3/8″ x 6″

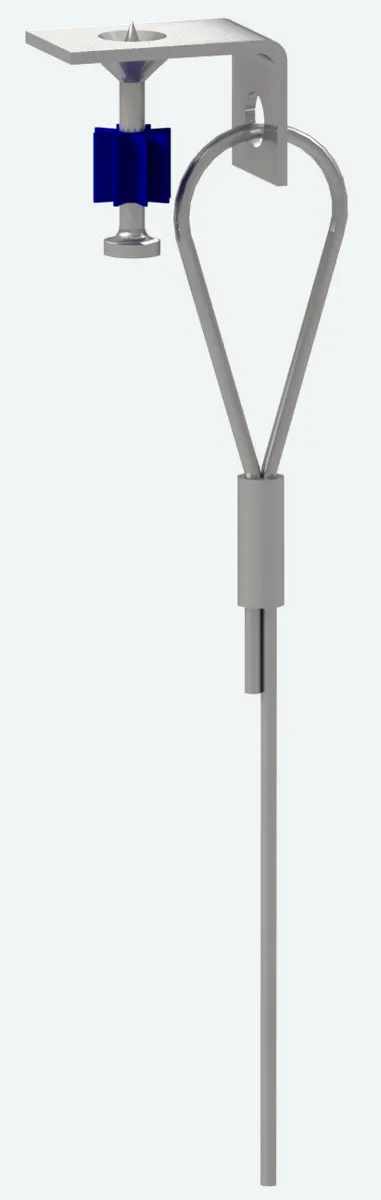

Pin and Clip
1″ and 1-1/4″ pins

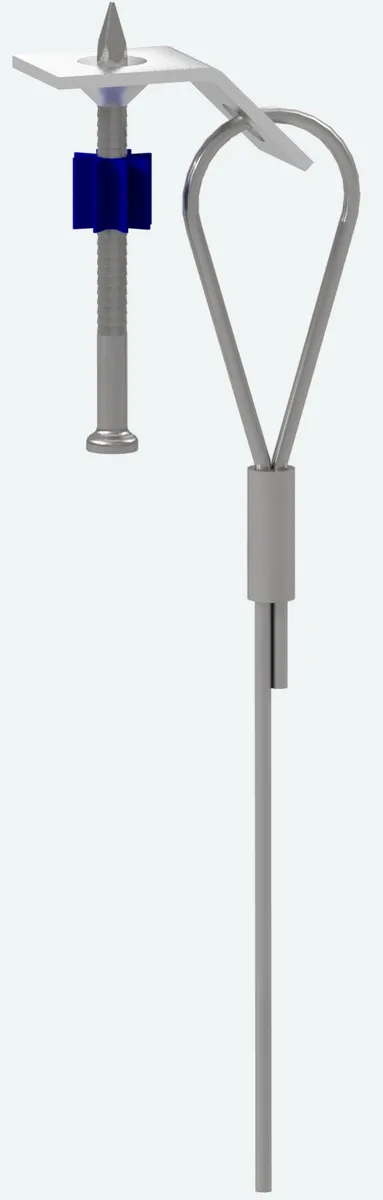

Timberpin and Clip
for wood structure

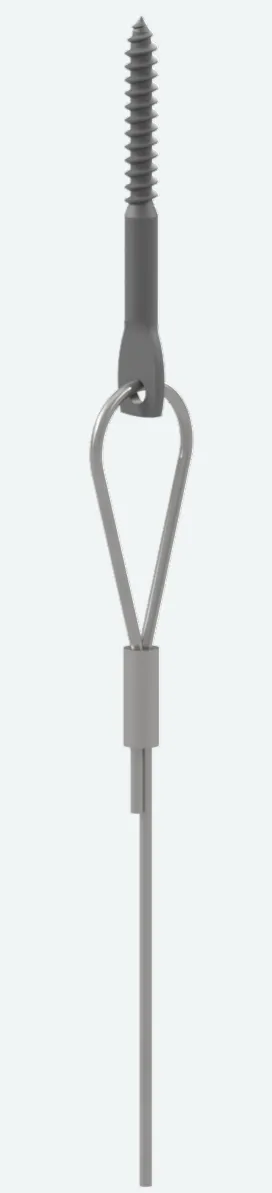

Wood Eye Lag
1/4″ x 3″

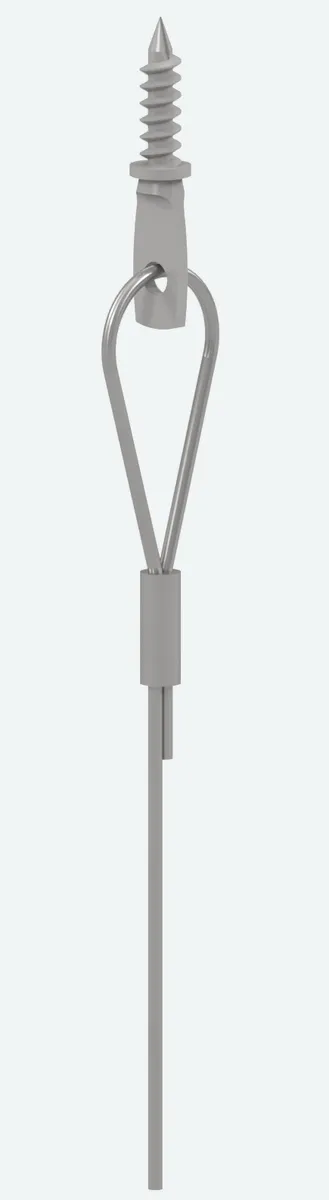

Metal Eye Lag
1/4″ x 3/4″

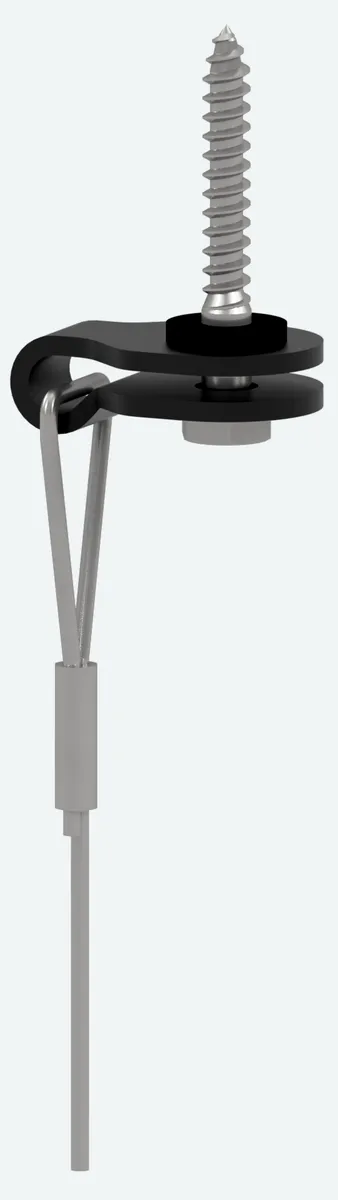

Snap with Wood Hex Lag
1/4″ x 3″ lag with snap

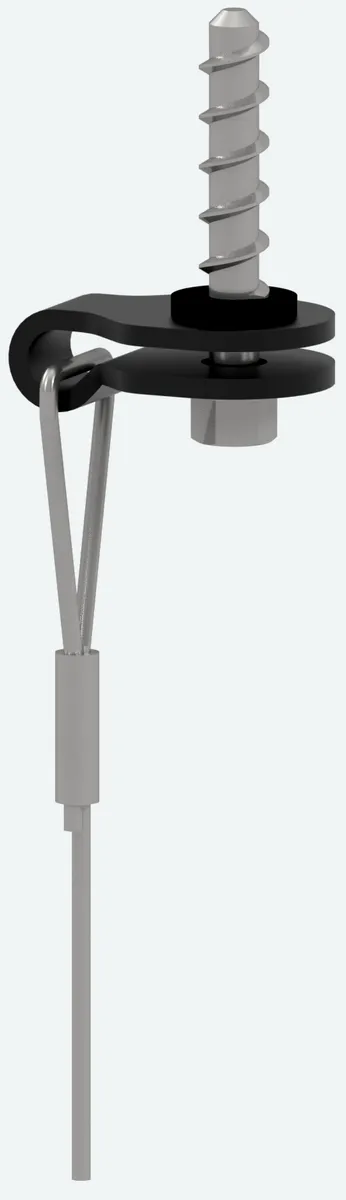

Snap with Screw Anchor
1/4″ and 3/8″ anchors

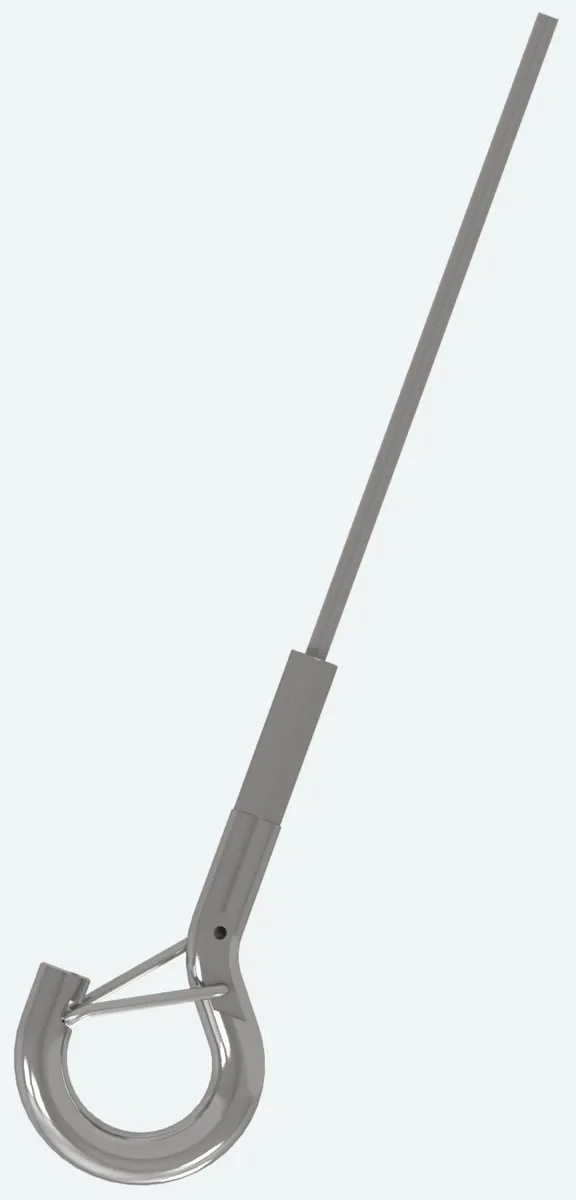

Snaphook Connection
snaphook end

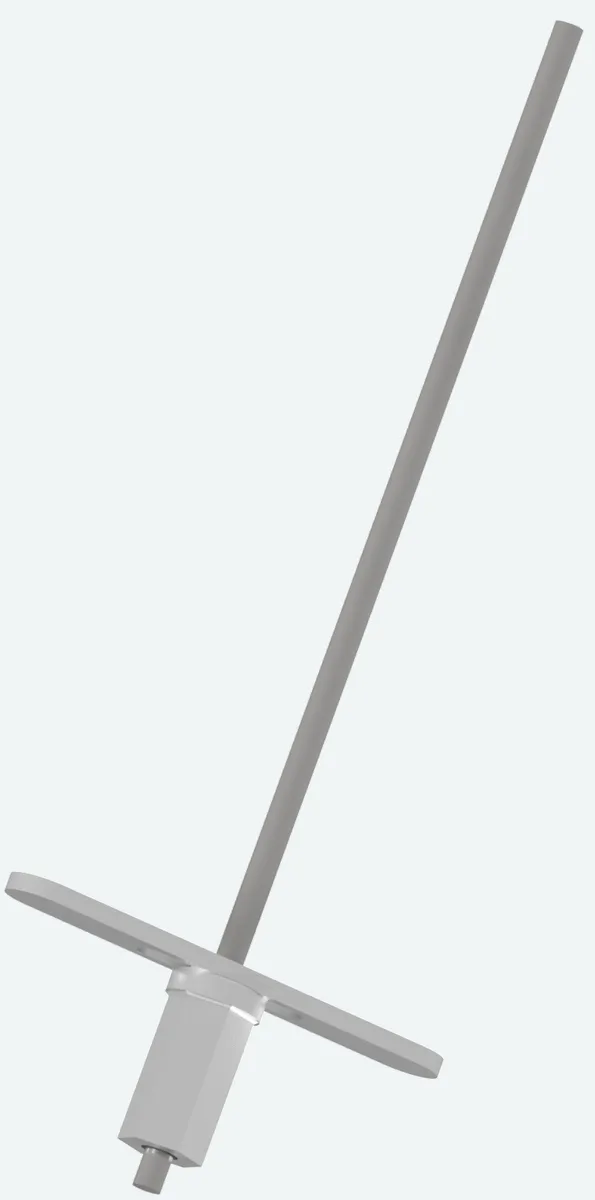

Toggle Connection
toggle end

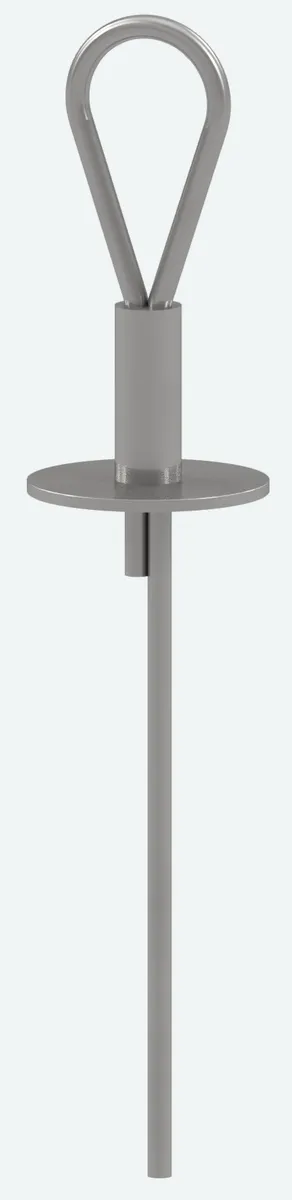

Cast-in-Place Loop
CPL, set before the pour

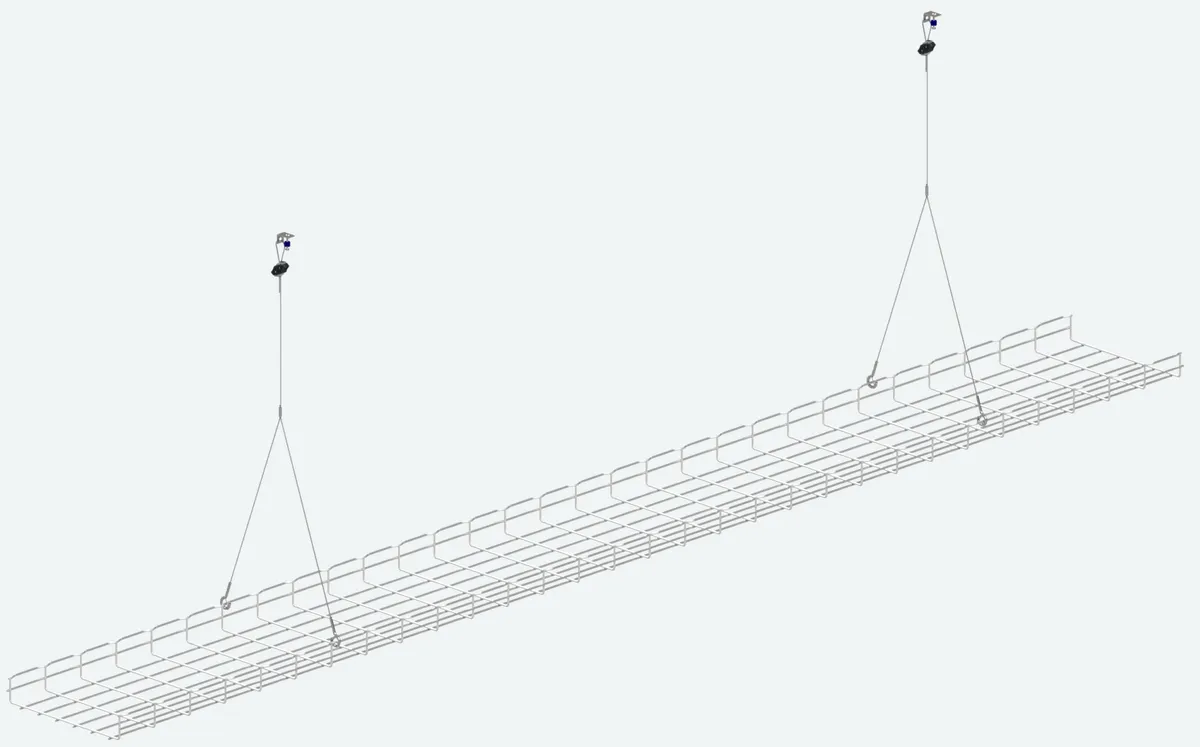

Y Assemblies
snaphook and toggle, two-drop
See it here, price it today
Every card is a family we build to the callout. Send the spec or the drawing and we’ll quote the exact part.
