Utility connections
Clip on and move on.
Field-connected top ends for existing structure: a snaphook that clips to what is already there, and threaded studs that go into a form-pour or deck insert.
Assemblies ship individually wrapped and color coded by size, so a box of thirty does not arrive as a tangled mess. Sold 10/bag through 20′ and 5/bag at 35′.
Give us the size, drop and service and we’ll spec the part number and price the build.
Snaphook over angle iron.
Before you install
ICC-ES EvaluatedPMG-1840
Manufactured to ASTM A1023 and ASTM A931. ICC-ES Evaluated under listing PMG-1840, Hangers for Pipe, Duct and Conduit Support, to ICC-ES LC1041 and MSS SP-163-2025. Rated loads are for the support assembly only, at a 4:1 factor of safety; attachment to structure is evaluated separately by the design professional or the authority having jurisdiction. Dry locations only, not for fire-protection piping.
Part numbers
Read the callout
Assemblies are sold 10/bag through 20′ and 5/bag at 35′. Devices are ordered separately unless you ask for them packed with the assembly.
Add X2 or X3 at the end of the part number for double or triple tie cables. Many other options are available. Just let us know and we will get you specifically what works for your job!
| Part number | Description | Cable | Length | Pack |
|---|---|---|---|---|
| SC0206SNK | 3/32″ Cable, 6′, Snaphook Connection | #2 | 6′ | 10/bag |
| SC0212SNK | 3/32″ Cable, 12′, Snaphook Connection | #2 | 12′ | 10/bag |
| SC0220SNK | 3/32″ Cable, 20′, Snaphook Connection | #2 | 20′ | 10/bag |
| SC0235SNK | 3/32″ Cable, 35′, Snaphook Connection | #2 | 35′ | 5/bag |

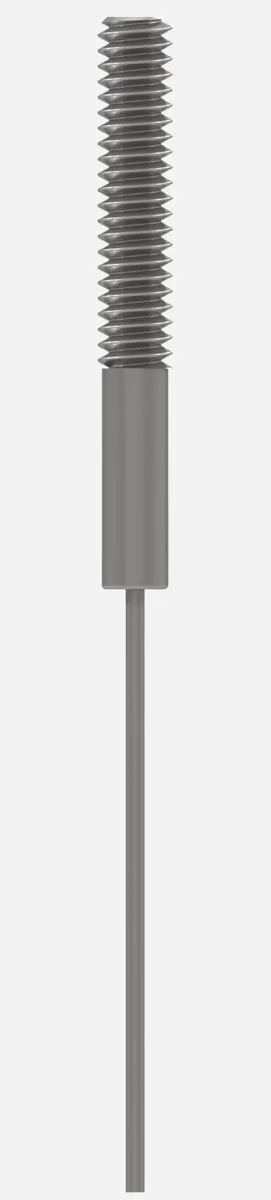

| Part number | Description | Cable | Length | Pack |
|---|---|---|---|---|
| SC0206ST383 | 3/32″ Cable, 6′, 3/8″ × 3″ Threaded Stud | #2 | 6′ | 10/bag |
| SC0212ST383 | 3/32″ Cable, 12′, 3/8″ × 3″ Threaded Stud | #2 | 12′ | 10/bag |
| SC0220ST383 | 3/32″ Cable, 20′, 3/8″ × 3″ Threaded Stud | #2 | 20′ | 10/bag |
| SC0235ST383 | 3/32″ Cable, 35′, 3/8″ × 3″ Threaded Stud | #2 | 35′ | 5/bag |
| SC0306ST383 | 1/8″ Cable, 6′, 3/8″ × 3″ Threaded Stud | #3 | 6′ | 10/bag |
| SC0312ST383 | 1/8″ Cable, 12′, 3/8″ × 3″ Threaded Stud | #3 | 12′ | 10/bag |
| SC0320ST383 | 1/8″ Cable, 20′, 3/8″ × 3″ Threaded Stud | #3 | 20′ | 10/bag |
| SC0335ST383 | 1/8″ Cable, 35′, 3/8″ × 3″ Threaded Stud | #3 | 35′ | 5/bag |

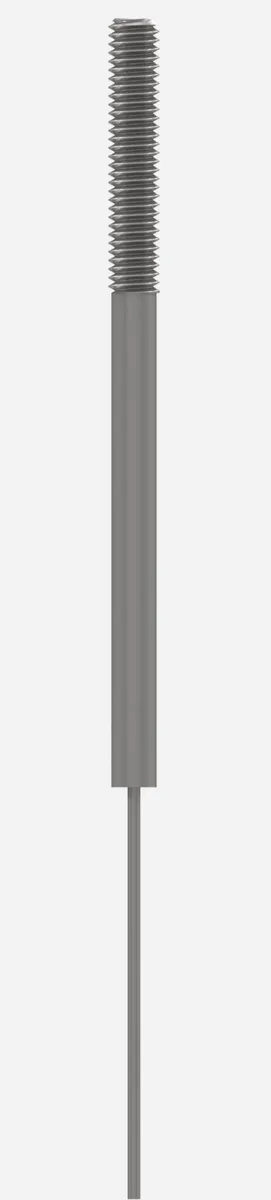

| Part number | Description | Cable | Length | Pack |
|---|---|---|---|---|
| SC0206ST386 | 3/32″ Cable, 6′, 3/8″ × 6″ Threaded Stud | #2 | 6′ | 10/bag |
| SC0212ST386 | 3/32″ Cable, 12′, 3/8″ × 6″ Threaded Stud | #2 | 12′ | 10/bag |
| SC0220ST386 | 3/32″ Cable, 20′, 3/8″ × 6″ Threaded Stud | #2 | 20′ | 10/bag |
| SC0235ST386 | 3/32″ Cable, 35′, 3/8″ × 6″ Threaded Stud | #2 | 35′ | 5/bag |
| SC0306ST386 | 1/8″ Cable, 6′, 3/8″ × 6″ Threaded Stud | #3 | 6′ | 10/bag |
| SC0312ST386 | 1/8″ Cable, 12′, 3/8″ × 6″ Threaded Stud | #3 | 12′ | 10/bag |
| SC0320ST386 | 1/8″ Cable, 20′, 3/8″ × 6″ Threaded Stud | #3 | 20′ | 10/bag |
| SC0335ST386 | 1/8″ Cable, 35′, 3/8″ × 6″ Threaded Stud | #3 | 35′ | 5/bag |
Downloads
Technical data sheets
One sheet per part: the allowable tension load by cable size and base material, the attachment specification where the sheet rates a fastener, and the notes. Each part page carries the same tables.
Accessories
Ordered alongside any group
Before you install
Limits that apply on every job
Follow capacity limits
Never overload SSF Cable Assemblies. Refer to the Technical Data Sheets for complete assembly capacities.
Take angle reductions
Assemblies not installed vertically take the published angle reduction, applied to the assembly rating. When cable is looped around round duct, the resulting angle shall not exceed 60°. Y-Accessories and Y-Assemblies may not be installed at angles greater than 60°.
Never join two cables
Never join 2 cables into a single device. Voids engineering and warranty.
Do not use for lifting
Static overhead support only. Not for lifting, rigging, or fall protection.
Dry indoor use only
Not for wet, chlorinated, or otherwise corrosive environments. Use SSF cable only; plastic-coated and third-party cables are not permitted with SSF devices.
Do not paint cables. Keep cables clean.
Install in final position before painting. Devices cannot be adjusted after paint contacts the cable. Cables must be free of oil and fireproofing prior to device installation.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and price the build.
