Electrical
Everything for hanging MC cable, conduit, and cable tray: overhead, in the wall, in the pour, and in the dirt.
Overhead
Simple Straight Rod
1-1/4″ pin, 90° foot, 24 to 42″ overall
Simple Stacker
retention leg for 0.625 and 0.750″ OD MC cable
Threaded Rod Support
1-1/4″ pin, 1/4″ all-thread, 24 to 42″ overall
MC Trapeze
1-1/4″ pin, 90° foot, 12″ wide
Simple Trapeze
trapeze for MC runs
Simple Locked-in Trapeze
locked-in trapeze for conduit
Simple Cantilever Trapeze
cantilever trapeze for MC or VRF piping
Simple HD MC Trapeze
heavy-duty trapeze for MC runs
Simple HD MC Trapeze, 2-tier
two tiers of MC on one drop
Simple Pitchfork Stacker
stacked multi-run pitchfork
Simple Pitchfork
1-1/4″ pin, 90° foot, 24 and 36″ overall
DAS Antenna Support
in-building antenna coverage, hospital basements and below-grade

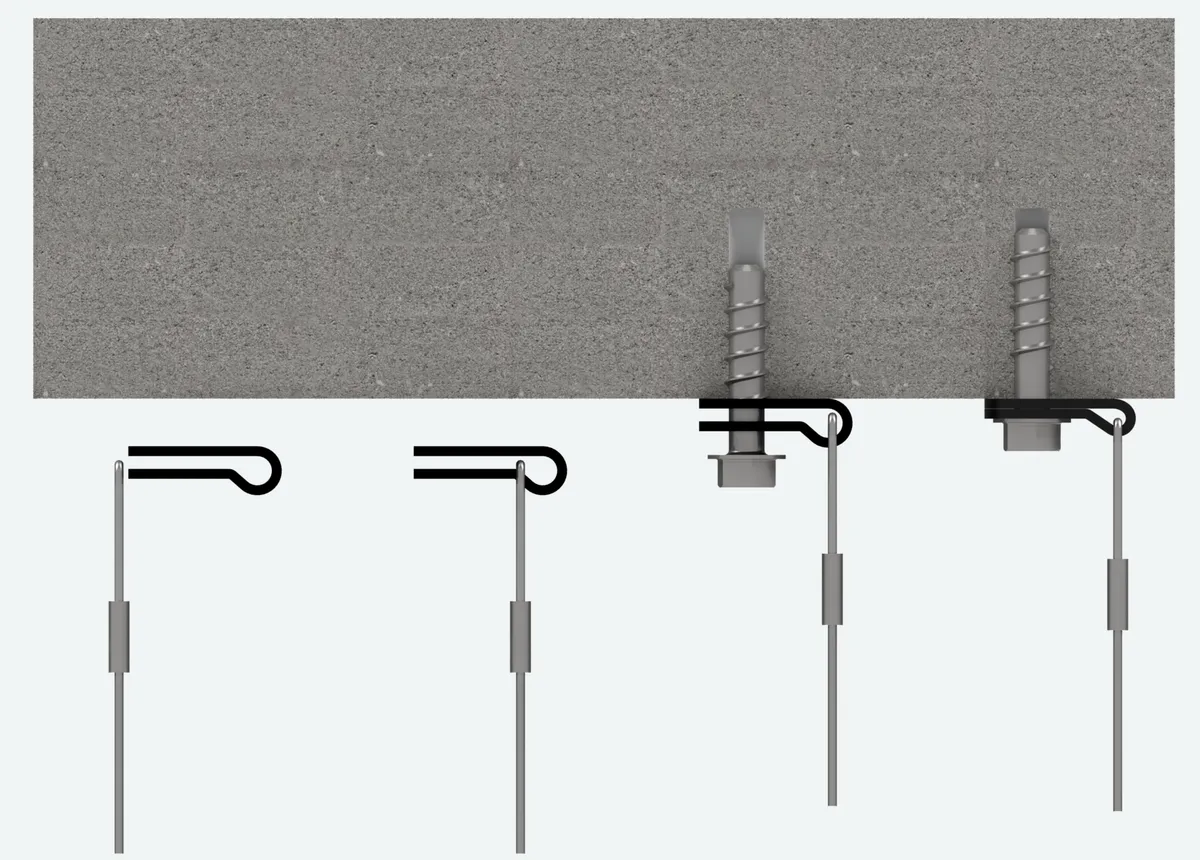

SC Cable Suspension
swaged assemblies, #2 to #4 cable, fittings to suit
View the systemIn the wall
Simple Spanner
16 and 24″ stud spacing
Simple Fixed Spanner
fixed-width stud bay span
Simple Adjustable Spanner
adjustable stud bay span
Cast in place
CIP Tree
8 to 12″ tall
Single Loop CIP Tree
loop IDs to suit conduit and pipe
Double Loop CIP Tree
two loops per tree
CIP Trapeze
3 to 4″ tall, 8 to 12″ wide
CIP 2-tiered Trapeze
two tiers in the form
CIP KO Support
knockout sizes 1.25 to 1.50″, 5 to 12 holes
CIP KO Support HD
heavy-duty, up to 21″ wide
CIP 2-tier KO Support
two knockout tiers
Street 90 Support
by trade size
KO L-Metal Channel
1.00 to 1.50″ KO sizes
CIP Chair Support
chair support in the form
Table Top Box Support
CIP box support
Wall Box Hook
CIP box support, wall forms
Robey Rod
CIP box support
Steel Deck Tree
tree for steel deck pours
Steel Deck Tree with Loop
looped tree for steel deck pours
CIP Loop
cast-in loop, hangs the rod after the pour
CIP Straight Rod
cast-in straight rod
CIP Threaded Rod
cast-in threaded rod
CIP Panel Cage
panel cage for pipe and conduit
In the dirt
SOG Support with Loop
single loop, set before the slab
SOG Support with 2 Loops
two loops per support
SOG KO Support
knockout support for slab-on-grade pours
SOG 2-Tier KO Support
two knockout tiers in the slab
SOG Slick Rod Support
slick rod, set before the slab
SOG 2-Tier Dbl Loop Slick Rod
two tiers, double loop
SOG KO Trap
knockout trapeze for slab-on-grade
SOG KO Trap, 2-tier
two trapeze tiers in the slab
Simple Candy Cane
candy-cane profile stub-up
Simple DBL Loop Candy Cane
double loop candy cane
Spec it and we’ll price it
Every support is built to the callout. Send the drawing and we’ll quote the assembly.
855-916-0001 · Mon–Fri
