Timberpin and clip
Straight into the framing.

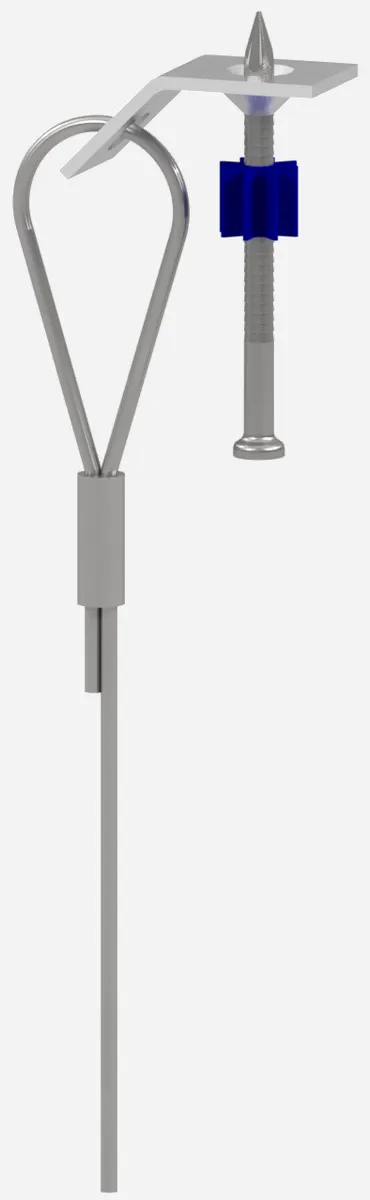

A pin and clip for engineered lumber, driven rather than threaded.
Assemblies ship individually wrapped and color coded by size, so a box of thirty does not arrive as a tangled mess. Sold 10/bag through 20′ and 5/bag at 35′.
Give us the size, drop and service and we’ll spec the part number and price the build.
Timberpin and clip.
Allowable tension load
Manufactured to ASTM A1023 and ASTM A931. This assembly is outside the scope of ICC-ES listing PMG-1840; refer to the Technical Data Sheet for capacities. Dry locations only, static overhead support only.
Allowable tension load
Capacities from the Technical Data Sheet
Allowable tension loads per Technical Data Sheet R0.1. This assembly is outside the scope of ICC-ES listing PMG-1840, so the sheet is the published source.
| Cable | Cable capacity | Solid sawn, glulam and CLT |
|---|---|---|
| #2, 3/32″ | 175 | 142 |
| #3, 1/8″ | 320 | 142 |

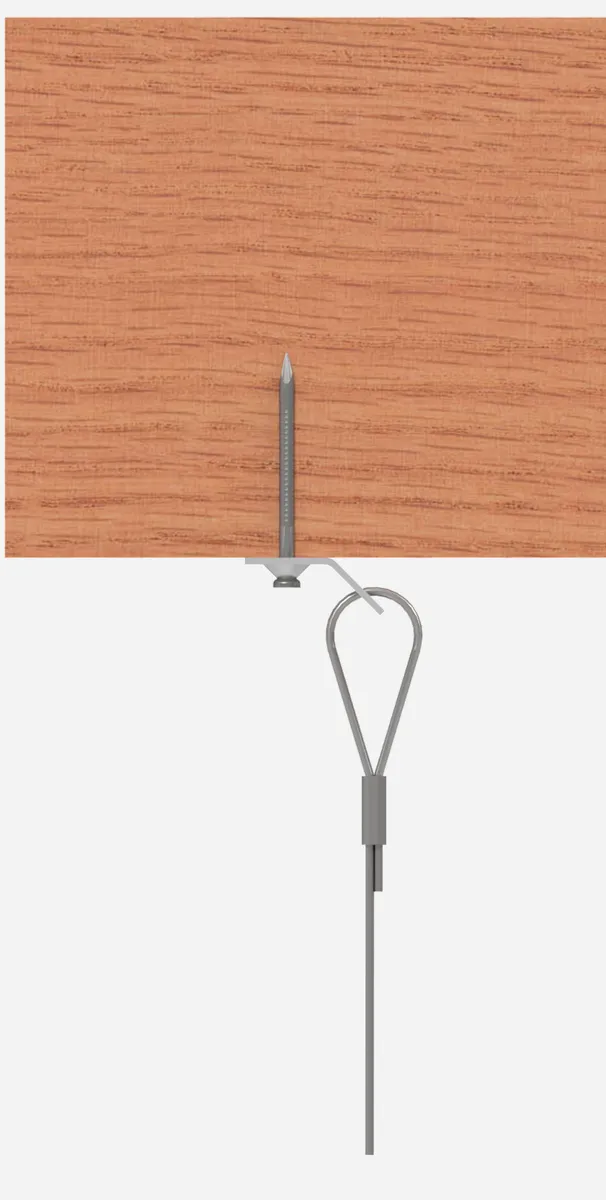

- Solid sawn, glulam and CLT: 0.177″ ring shank pin, 2-1/4″ penetration, panel face in CLT
Values are the allowable withdrawal of the Timberpin at 2-1/4″ penetration. Derived with the AWC Connection Calculator per the 2024 NDS, ASD, equation 12.2-5 for post-frame ring shank nails, including the 1.25 uncoated carbon steel factor of 12.2.3.2(b), CD = 0.90 for permanent load. Spruce-pine-fir governs; glulam takes the specific gravity of its lamination species. Not for installation in the narrow edge of cross-laminated timber, nor in end grain; nail withdrawal is not permitted there per 2024 NDS 12.2.3.4. Connection to structure must be reviewed by the structural engineer of record.
Wood connections
Other fixings in this group
Part numbers
Read the callout
Assemblies are sold 10/bag through 20′ and 5/bag at 35′. Devices are ordered separately unless you ask for them packed with the assembly.
Add X2 or X3 at the end of the part number for double or triple tie cables. Many other options are available. Just let us know and we will get you specifically what works for your job!
| Part number | Description | Cable | Length | Pack |
|---|---|---|---|---|
| SC0206TP | 3/32″ Cable, 6′, Timberpin and Clip | #2 | 6′ | 10/bag |
| SC0212TP | 3/32″ Cable, 12′, Timberpin and Clip | #2 | 12′ | 10/bag |
| SC0220TP | 3/32″ Cable, 20′, Timberpin and Clip | #2 | 20′ | 10/bag |
| SC0235TP | 3/32″ Cable, 35′, Timberpin and Clip | #2 | 35′ | 5/bag |
| SC0306TP | 1/8″ Cable, 6′, Timberpin and Clip | #3 | 6′ | 10/bag |
| SC0312TP | 1/8″ Cable, 12′, Timberpin and Clip | #3 | 12′ | 10/bag |
| SC0320TP | 1/8″ Cable, 20′, Timberpin and Clip | #3 | 20′ | 10/bag |
| SC0335TP | 1/8″ Cable, 35′, Timberpin and Clip | #3 | 35′ | 5/bag |
Before you install
Limits that apply on every job
Follow capacity limits
Never overload SSF Cable Assemblies. Refer to the Technical Data Sheets for complete assembly capacities.
Take angle reductions
Assemblies not installed vertically take the published angle reduction, applied to the assembly rating. When cable is looped around round duct, the resulting angle shall not exceed 60°. Y-Accessories and Y-Assemblies may not be installed at angles greater than 60°.
Never join two cables
Never join 2 cables into a single device. Voids engineering and warranty.
Do not use for lifting
Static overhead support only. Not for lifting, rigging, or fall protection.
Dry indoor use only
Not for wet, chlorinated, or otherwise corrosive environments. Use SSF cable only; plastic-coated and third-party cables are not permitted with SSF devices.
Do not paint cables. Keep cables clean.
Install in final position before painting. Devices cannot be adjusted after paint contacts the cable. Cables must be free of oil and fireproofing prior to device installation.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and price the build.
