L23Device100/box

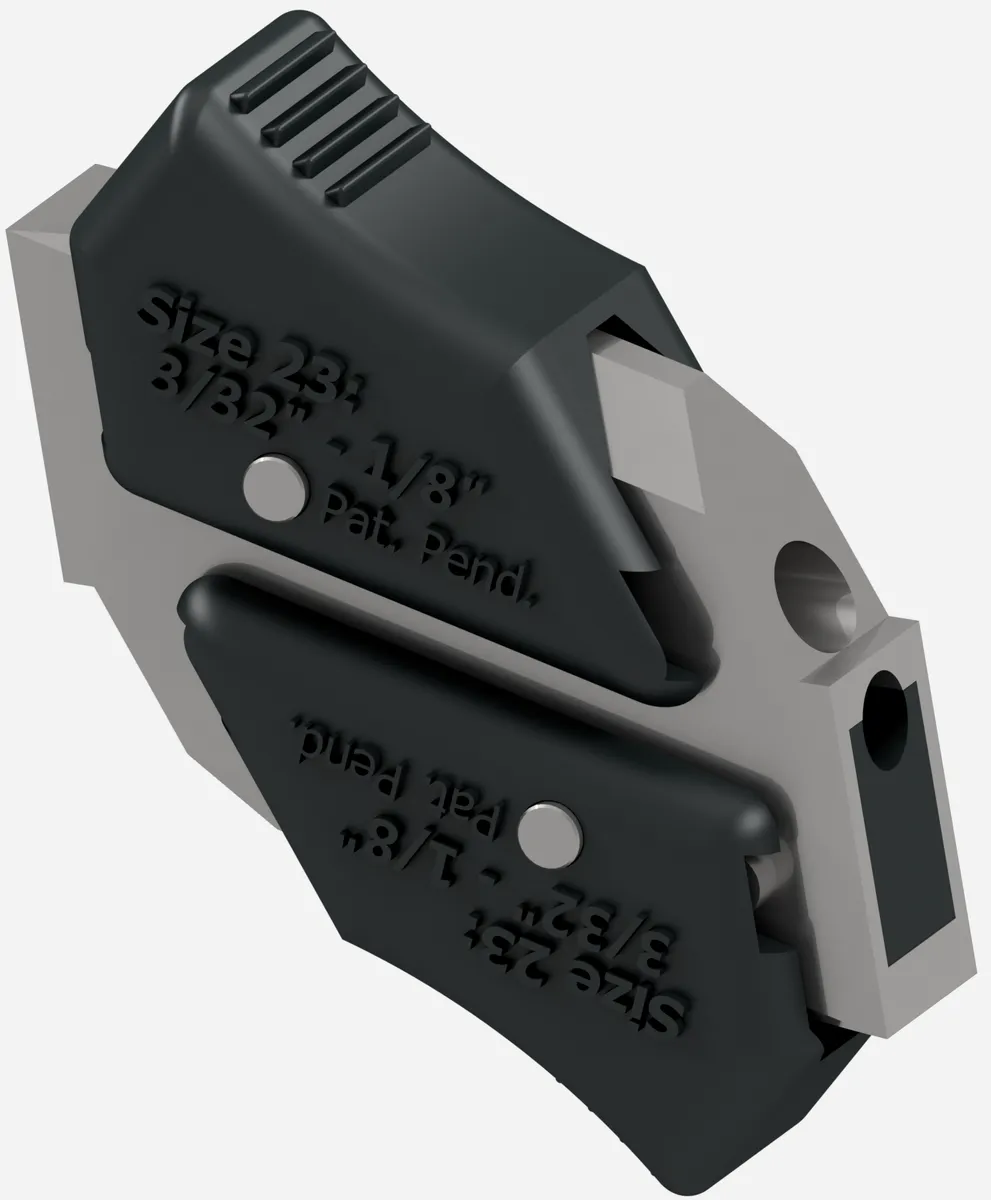

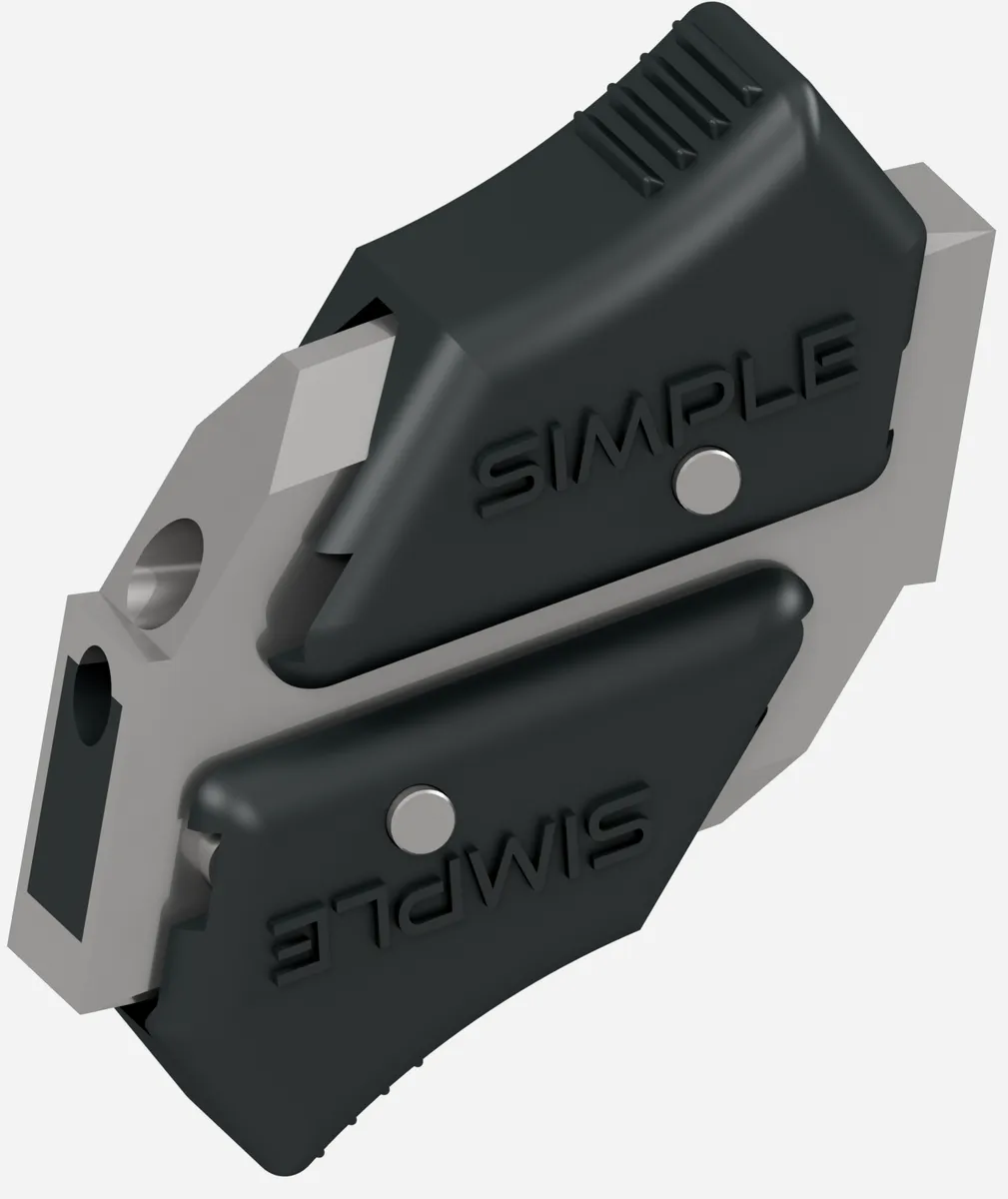

L23 Football

Easy to release.

One L23 works with either #2 or #3 cable. The cable feeds in through the entry hole and back through the opposite side to make the loop.

To release, push the Release Tabs forward. When cable is looped around round duct, the resulting angle shall not exceed 60°.

Request a quote Tech data sheet (PDF)Call 855-916-0001

Give us the size, drop and service and we’ll spec the part number and price the build.

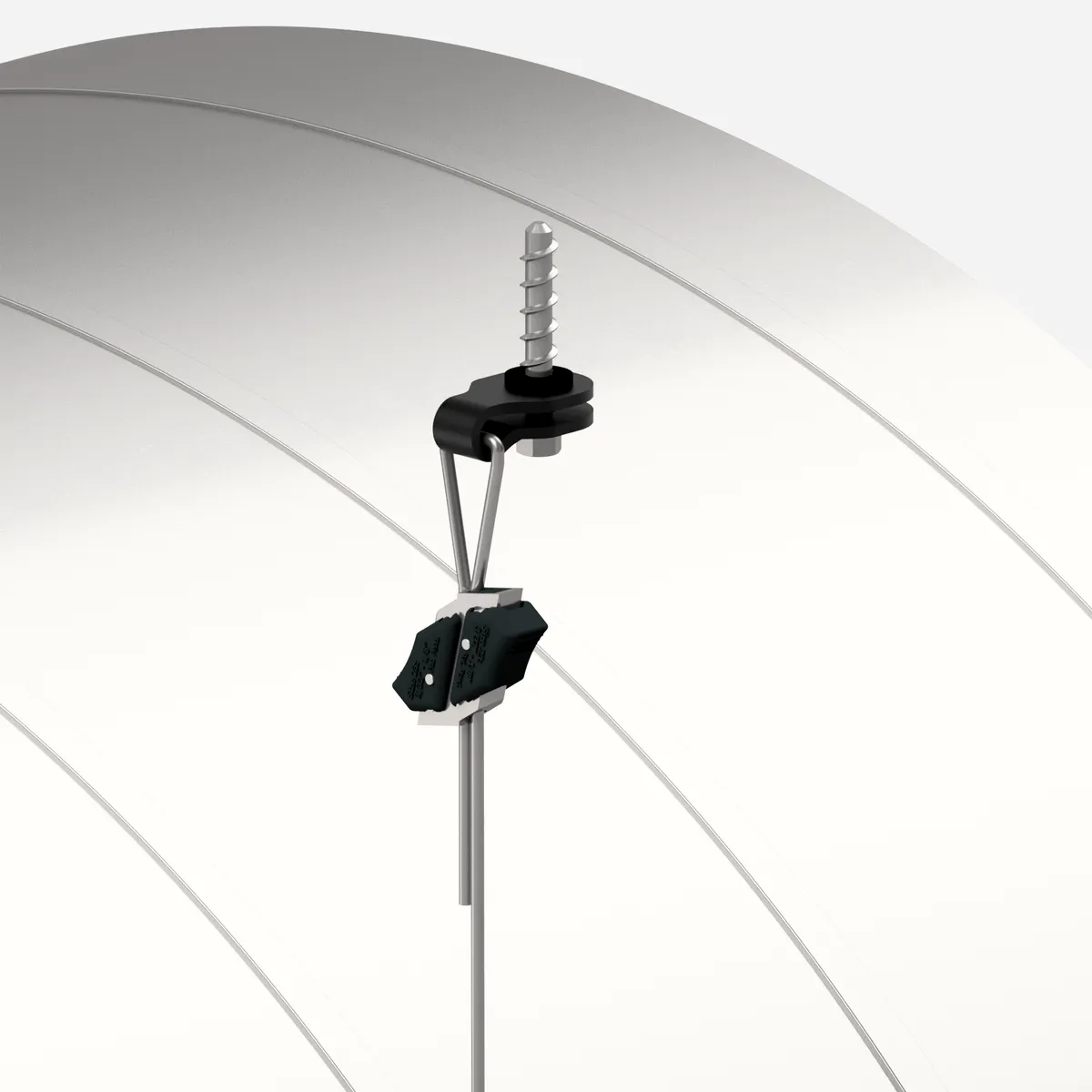

L23 Football set on a #3 cable below a screw-anchor top fixing

L23 on a #3 cable, hung from a Snap and screw anchor.

Rated capacity

175 lbs

#2, 3/32″ cable · 100/box

320 lbs

#3, 1/8″ cable · 100/box

One device

Works with either #2 or #3 cable

QR code linking to ICC-ES PMG listing PMG-1840

ICC-ES Evaluated
PMG-1840

Manufactured to ASTM A1023 and ASTM A931. ICC-ES Evaluated under listing PMG-1840, Hangers for Pipe, Duct and Conduit Support, to ICC-ES LC1041 and MSS SP-163-2025. Rated loads are for the support assembly only, at a 4:1 factor of safety; attachment to structure is evaluated separately by the design professional or the authority having jurisdiction. Dry locations only, not for fire-protection piping.

Applications

Round duct, flex duct and cable tray

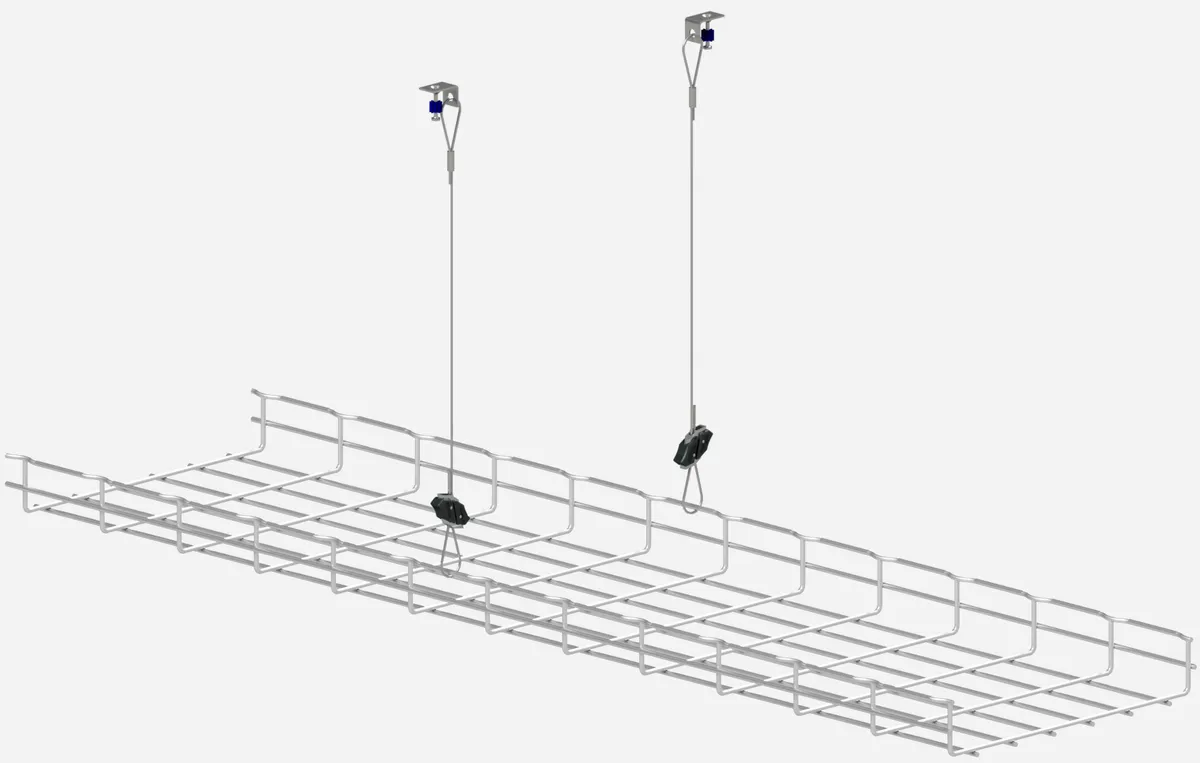

Cable tray

Flex duct

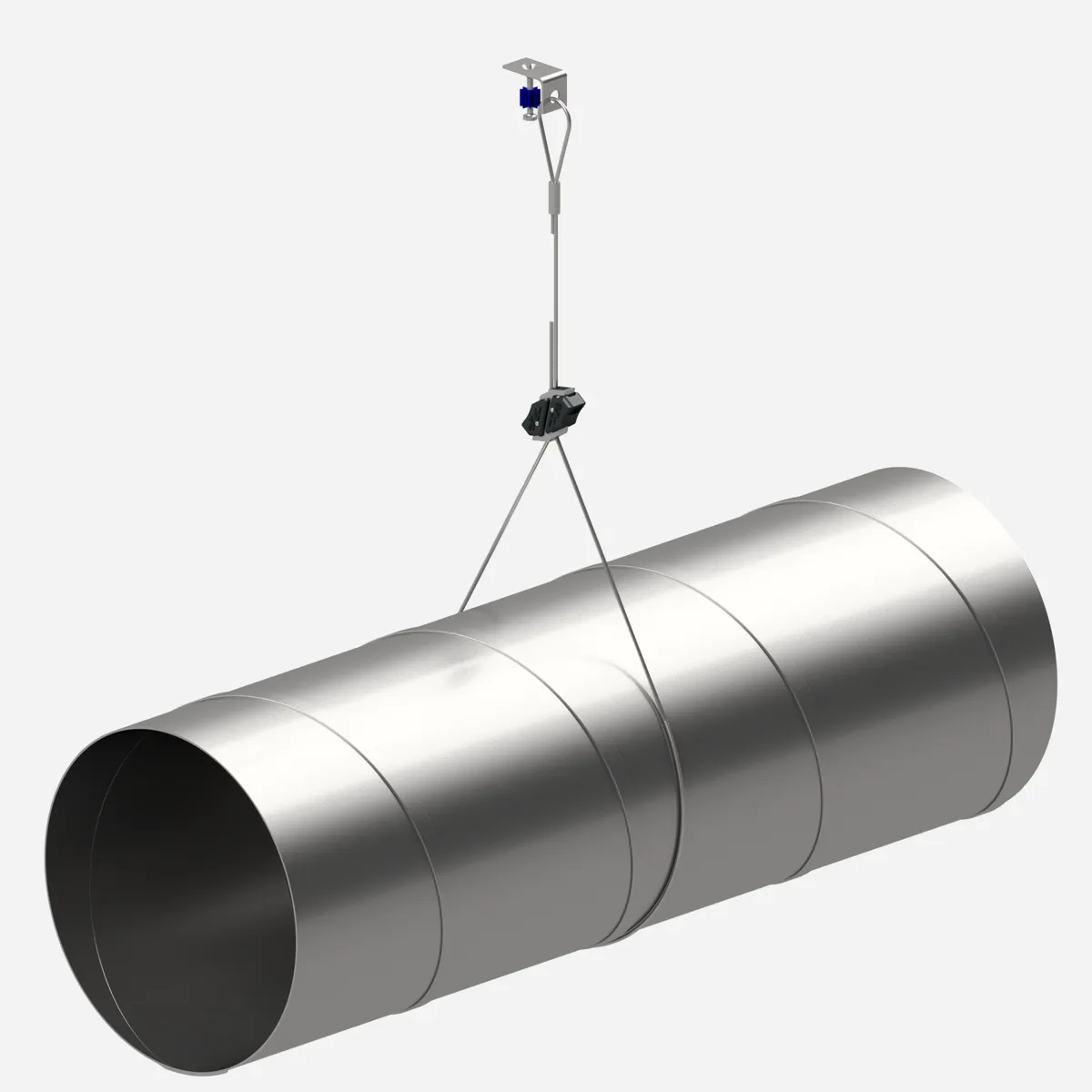

Round duct

Instructions

Three moves

01
Install the cable by inserting it through the cable entry hole.
02
To create the loop, feed the cable back through the cable entry hole on the opposite side.
03
To release the cable, push the Release Tabs forward.

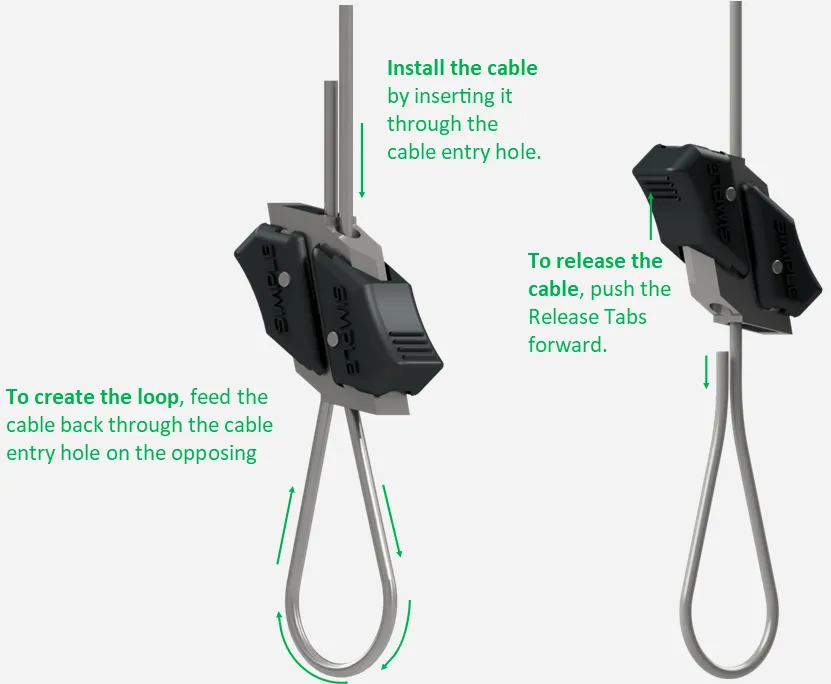

L23 installation sequence with numbered steps

Part numbers

Footballs are sold 100/box

Devices are sold by the box, cable end fixings by the bag. Cables are sold separately unless the contractor specifically asks for them packed together.

L23 Football, L23
Part number	Description	Capacity	Pack
L23	#2, 3/32″ cable	175 lbs	100/box
L23	#3, 1/8″ cable	320 lbs	100/box

Angled installation

Reduction factors

Multiply the assembly rating by the factor shown, then round down to the nearest 5 lbs. Maximum 60° from vertical. The reduction is taken on the assembly, not on the device rating alone. Multipliers 1.000, 0.966, 0.866, 0.707, 0.500 (PMG-1840 Table 2).

L23 Football, values in lbs
Cable	0° (vertical)	15°	30°	45°	60°
#2 (3/32″)	175	165	150	120	85
#3 (1/8″)	320	305	275	225	160

Sizing

How to determine the cable lengths required

SSF stock lengths are 6′, 12′, 20′ and 35′. The table value is the smallest stock length that satisfies the calculated required cable length for the given duct diameter and drop length. Custom lengths are available.

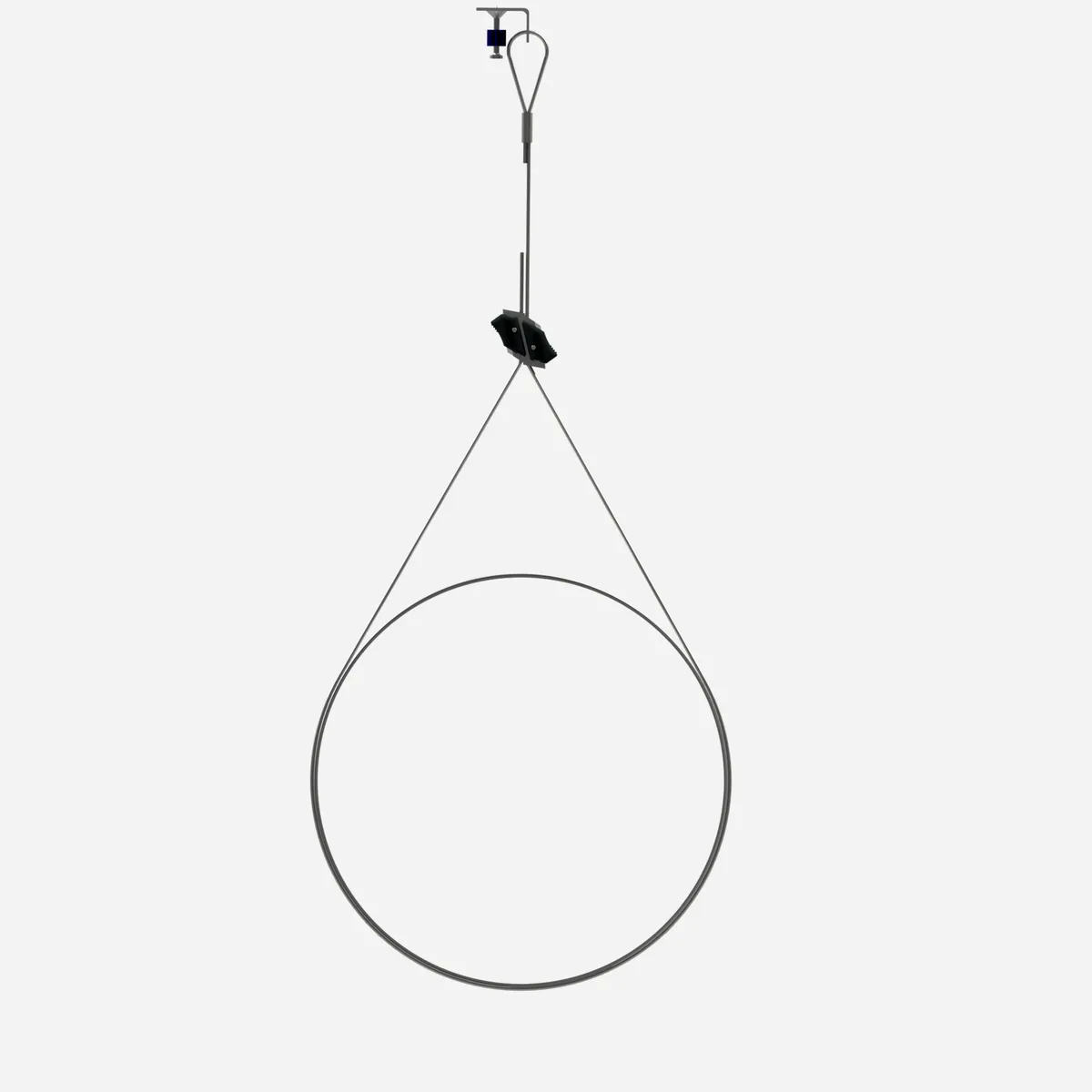

Round duct, 36″ max, with L23
Duct dia.	Circ. (in)	Offset (in)	6′	8′	10′	12′	14′	16′	18′	20′
12″	37.7	6.0	12′	20′	20′	20′	20′	35′	35′	35′
14″	44.0	7.0	12′	20′	20′	20′	20′	35′	35′	35′
16″	50.3	8.0	12′	20′	20′	20′	20′	35′	35′	35′
18″	56.5	9.0	12′	20′	20′	20′	20′	35′	35′	35′
20″	62.8	10.0	20′	20′	20′	20′	35′	35′	35′	35′
22″	69.1	11.0	20′	20′	20′	20′	35′	35′	35′	35′
24″	75.4	12.0	20′	20′	20′	20′	35′	35′	35′	35′
26″	81.7	13.0	20′	20′	20′	35′	35′	35′	35′	35′
28″	88.0	14.0	20′	20′	20′	35′	35′	35′	35′	35′
30″	94.2	15.0	20′	20′	20′	35′	35′	35′	35′	35′
32″	100.5	16.0	20′	20′	35′	35′	35′	35′	35′	35′
34″	106.8	17.0	20′	20′	35′	35′	35′	35′	35′	35′
36″	113.1	18.0	20′	20′	35′	35′	35′	35′	35′	35′

Offset is the distance from the top of the duct to the L23, and equals one half of the duct diameter. A 3″ minimum tail is required after the noose returns through the device. Cable diameter is selected based on weight per linear foot of ductwork and hanger spacing.

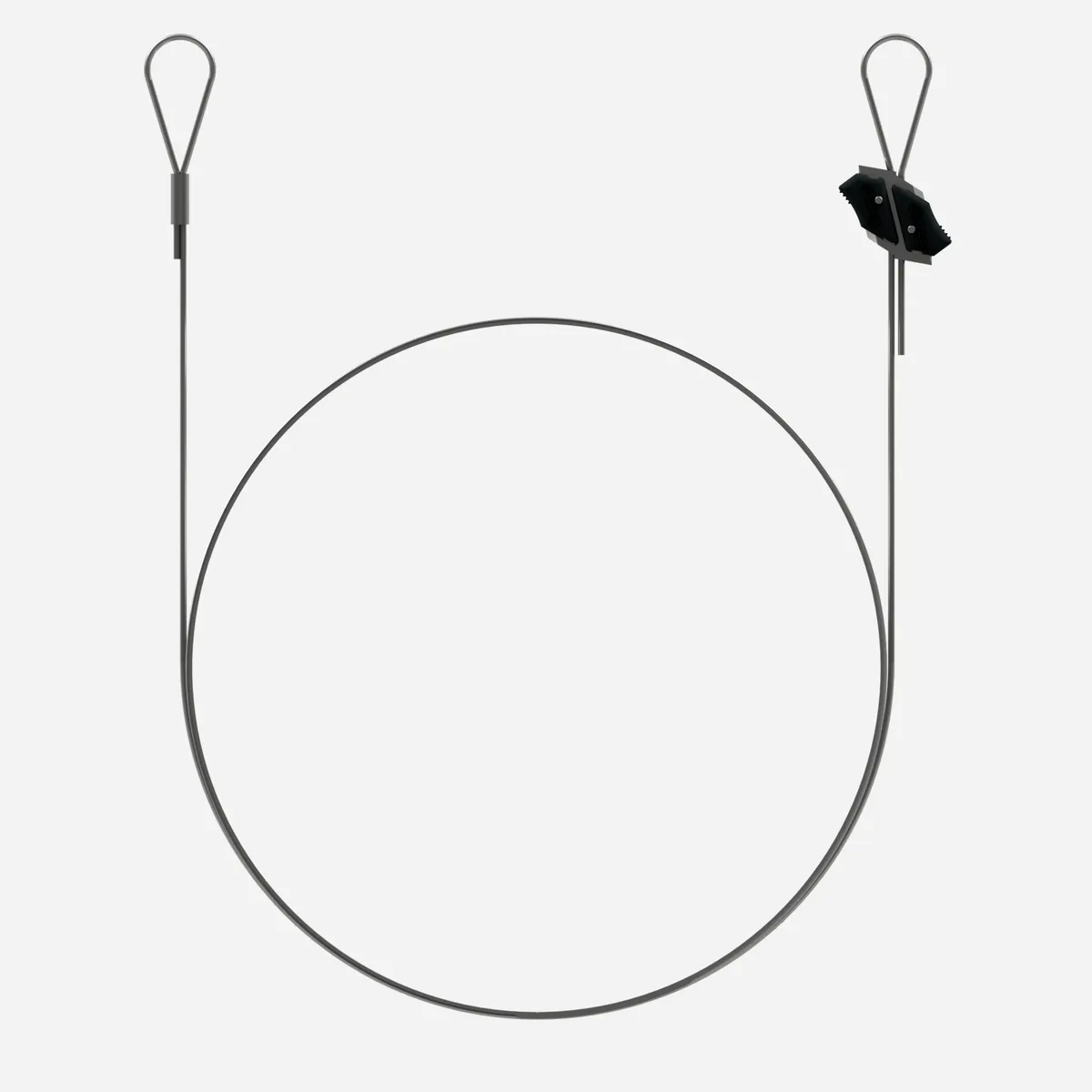

Round duct over 36″, or oval duct of any size, with L23
Duct dia.	Circ. (in)	6′	8′	10′	12′	14′	16′	18′	20′
38″	119.4	35′	35′	35′	37′*	41′*	45′*	49′*	53′*
40″	125.7	35′	35′	35′	38′*	42′*	46′*	50′*	54′*
44″	138.2	35′	35′	35′	39′*	43′*	47′*	51′*	55′*
46″	144.5	35′	35′	36′*	40′*	44′*	48′*	52′*	56′*
48″	150.8	35′	35′	36′*	40′*	44′*	48′*	52′*	56′*
50″	157.1	35′	35′	37′*	41′*	45′*	49′*	53′*	57′*
52″	163.4	35′	35′	38′*	42′*	46′*	50′*	54′*	58′*
56″	175.9	35′	35′	39′*	43′*	47′*	51′*	55′*	59′*
60″	188.5	35′	36′*	40′*	44′*	48′*	52′*	56′*	60′*

The cable runs down one drop, under the duct and back up the other, so a 3″ tail is required at each L23, two tails in total. An asterisk means the requirement exceeds the 35′ stock length: order a custom length at the value shown, rounded up to the next whole foot.

Before you install

Limits that apply on every job

Follow capacity limits

Never overload SSF Cable Assemblies. Refer to the Technical Data Sheets for complete assembly capacities.

Take angle reductions

Assemblies not installed vertically take the published angle reduction, applied to the assembly rating. When cable is looped around round duct, the resulting angle shall not exceed 60°. Y-Accessories and Y-Assemblies may not be installed at angles greater than 60°.

Never join two cables

Never join 2 cables into a single device. Voids engineering and warranty.

Do not use for lifting

Static overhead support only. Not for lifting, rigging, or fall protection.

Dry indoor use only

Not for wet, chlorinated, or otherwise corrosive environments. Use SSF cable only; plastic-coated and third-party cables are not permitted with SSF devices.

Do not paint cables. Keep cables clean.

Install in final position before painting. Devices cannot be adjusted after paint contacts the cable. Cables must be free of oil and fireproofing prior to device installation.
