Simple Stacker

Overhead stacker for EMT or MC/AC cable up to 2-1/2 in.: the hooked release opens to install the run, then secures it high and tight, one hook per run up the rod.

Request a quoteDownloadsCall 855-916-0001

Give us the size, drop and service and we’ll spec the part number and quote the build.

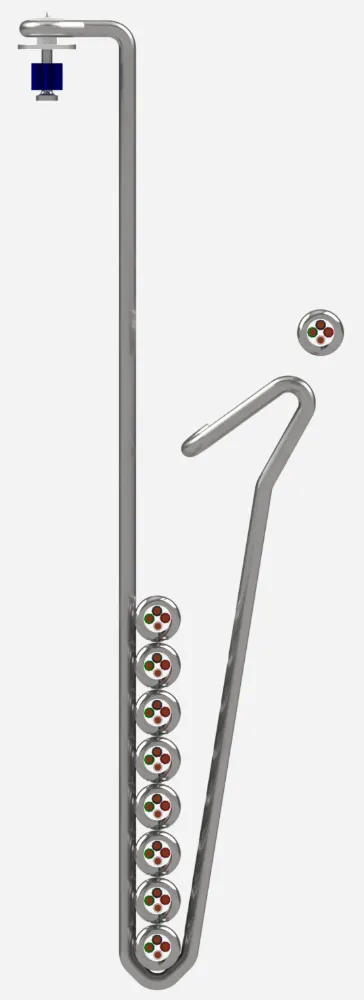

MC/AC cable stacked up the rod

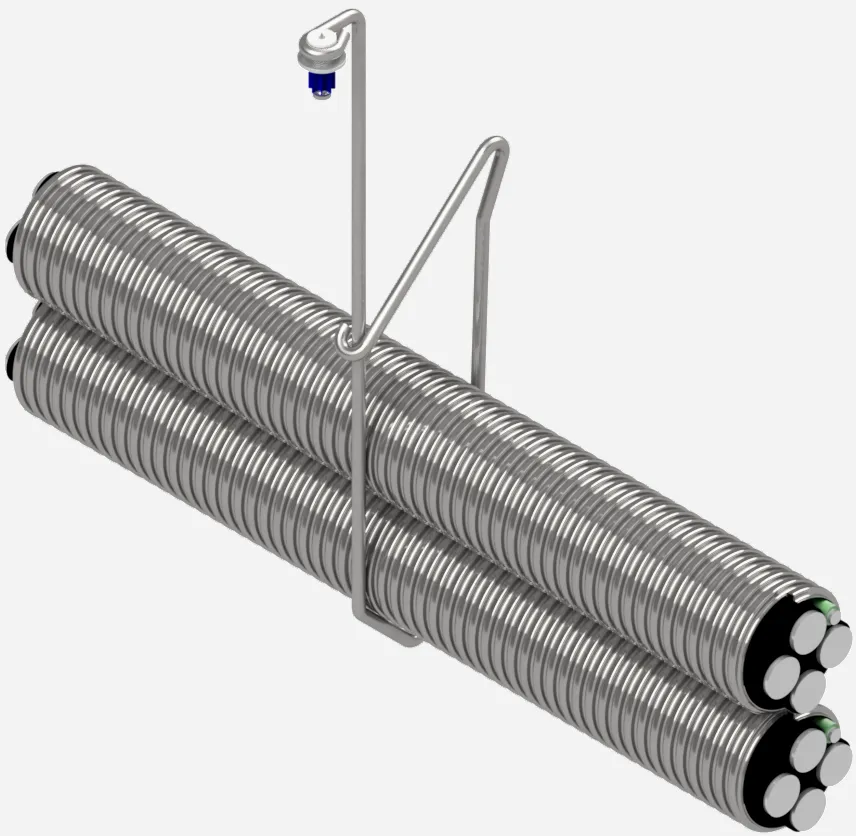

MC/AC cable stacked up the rod.

Rated capacity

90 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
5/8 to 2-1/2 in.
EMT or MC size, one hook per run up the rod.
4:1
Minimum factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239
ICC-ES PMG mark of conformityQR code linking to ICC-ES PMG listing PMG-1840ICC-ES Evaluated
PMG-1840

The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.

Ready to ship

Stock parts, ready to order

Need something specific? Build a custom part number →
Ready to ship101A01B01C24D08E01

Simple Stacker, 24 in. drop length, 8 in. return length, 5/8 in.

A
A01 PD157-114W · 1-1/4" x 0.157 Pin, 1" Embed
B
B01 90 deg foot (S90)
C
C24 Drop length 24 in.
D
D08 Return length 8 in.
E
E01 EMT or MC size 5/8 in.

Assembly capacity: 90 lbs 4000psi NWC · 90 lbs 3000psi LWC with Metal Deck

Ready to ship101A01B01C24D08E02

Simple Stacker, 24 in. drop length, 8 in. return length, 3/4 in.

A
A01 PD157-114W · 1-1/4" x 0.157 Pin, 1" Embed
B
B01 90 deg foot (S90)
C
C24 Drop length 24 in.
D
D08 Return length 8 in.
E
E02 EMT or MC size 3/4 in.

Assembly capacity: 90 lbs 4000psi NWC · 90 lbs 3000psi LWC with Metal Deck

Ready to ship101A01B01C36D10E01

Simple Stacker, 36 in. drop length, 10 in. return length, 5/8 in.

A
A01 PD157-114W · 1-1/4" x 0.157 Pin, 1" Embed
B
B01 90 deg foot (S90)
C
C36 Drop length 36 in.
D
D10 Return length 10 in.
E
E01 EMT or MC size 5/8 in.

Assembly capacity: 90 lbs 4000psi NWC · 90 lbs 3000psi LWC with Metal Deck

Ready to ship101A01B01C36D10E02

Simple Stacker, 36 in. drop length, 10 in. return length, 3/4 in.

A
A01 PD157-114W · 1-1/4" x 0.157 Pin, 1" Embed
B
B01 90 deg foot (S90)
C
C36 Drop length 36 in.
D
D10 Return length 10 in.
E
E02 EMT or MC size 3/4 in.

Assembly capacity: 90 lbs 4000psi NWC · 90 lbs 3000psi LWC with Metal Deck

Custom order

Build a custom part number

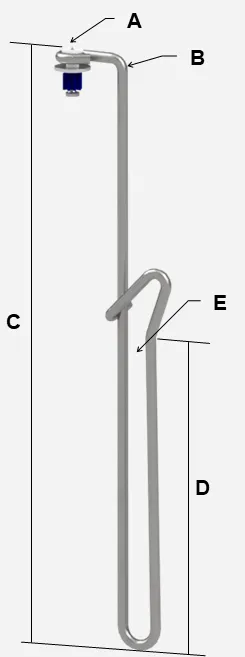

Simple Stacker with callouts
A
Fastener
A01 · PD157-114W
1-1/4" x 0.157 Pin, 1" Embed.
B
Footprint
B01 · 90 deg foot (S90)
S90 footprint, rated 90 lbs per ICC-ES PMG-1840 Table 1. Mounts to the underside of the structure; the fastener loads in tension.
C
Drop length
C24 · 24 in.
D
Return length
D08 · 8 in.
E
EMT or MC size
E01 · 5/8 in.
EMT or MC size, 5/8 to 2-1/2 in.

Ready to ship options are available above. Any other combination is built to order.

Part number101A01B01C24D08E01Ready to ship
Configured assembly capacity (tension)
SubstrateFastener (tension)AssemblyGoverned by
4000psi NWC275 lbs90 lbsSupport
3000psi LWC with Metal Deck115 lbs90 lbsSupport

Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.

03 · Notes

From the Technical Data Sheet

  • Enables airflow to eliminate bundling limitations. NEC 310.15(C)(1)(d).
  • Rigid connection to structure eliminates the need to tie off to the ceiling grid below. NEC 300.11(A).
  • Finish: zinc plated.
  • Support spacing governed by the applicable local building code.
  • Dry locations only, per the listing.
  • Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
  • The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
  • Drawings not to scale.
