102POverheadPlumbing and mechanical
Simple Threaded Rod
Threaded rod support for copper and steel pipe, single hung on a clevis hanger or as a trapeze drop: the S90T threaded footprint carries 1/4 in. or 3/8 in. all-thread rod to the fastener.
Give us the size, drop and service and we’ll spec the part number and quote the build.

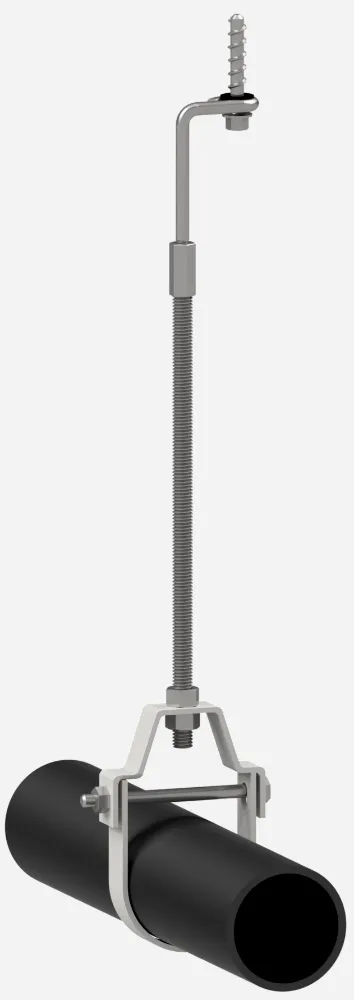

2 in. clevis hanger and pipe.
Rated capacity
70 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
3 - 120 in.
Overall length, 1/4 in. or 3/8 in. all-thread rod.
4:1
Minimum factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239
ICC-ES EvaluatedPMG-1840
The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.
Custom order
Build a custom part number
- A
- Fastener
- A01 · PD157-114W
- 1-1/4" x 0.157 Pin, 1" Embed.
- B
- Footprint
- B01 · 90 deg threaded foot (S90T)
- S90T footprint, rated 90 lbs per ICC-ES PMG-1840 Table 1. Mounts to the underside of the structure; the fastener loads in tension.
- C
- Rod size
- C01 · 1/4 in. all-thread
- Rod size: C01 1/4 in. or C02 3/8 in. all-thread
- D
- Overall length
- D24 · 24 in.
- Overall length, 3 in. to 120 in.
Built to order. Any length up to 10' on request.
Part number102A01B01C01D24Built to order
| Substrate | Fastener (tension) | Assembly | Governed by |
|---|---|---|---|
| 4000psi NWC | 275 lbs | 70 lbs | Support |
| 3000psi LWC with Metal Deck | 115 lbs | 70 lbs | Support |
Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.
03 · Notes
From the Technical Data Sheet
- Rigid connection to structure; listed for the support of plumbing and mechanical piping under the IPC, UPC, IMC and UMC and their California editions (ICC-ES PMG-1840).
- Finish: zinc plated.
- Support spacing per the applicable plumbing or mechanical code (IPC 308.5, UPC 313.3).
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- Drawings not to scale.
