Simple Lasso

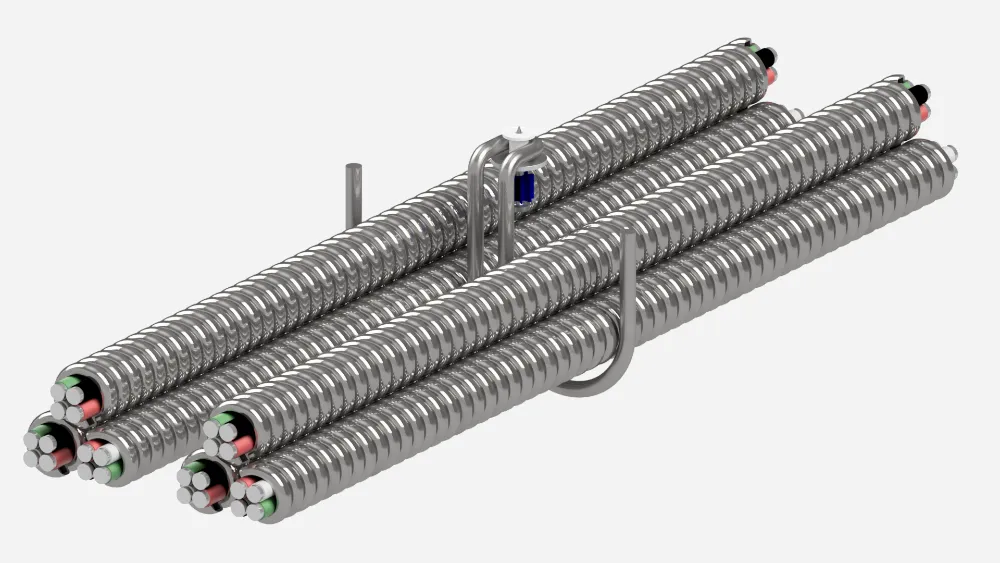

Secures a bundle of MC/AC cable or flexible conduit with one shot; select the lasso ID for the bundle.
Give us the size, drop and service and we’ll spec the part number and quote the build.
MC/AC cable bundles.
Rated capacity
50 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
5/8 - 3 in.
Lasso ID, sized to the bundle.
4:1
Minimum factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239
ICC-ES EvaluatedPMG-1840
The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.
Custom order

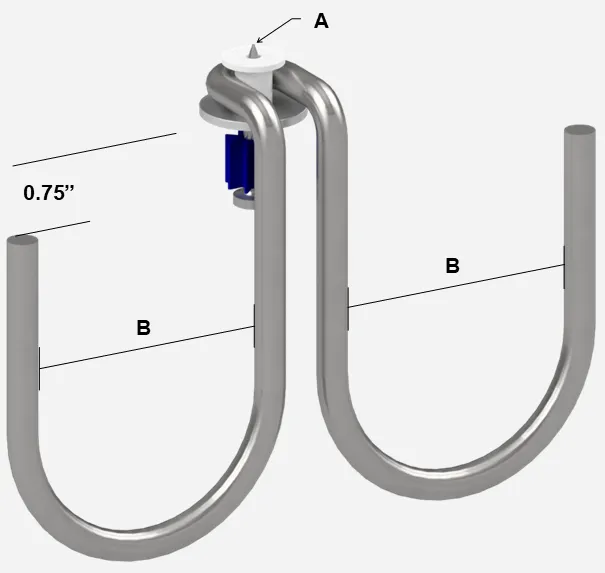

Build a custom part number
- A
- Fastener
- A01 · PD157-114W
- 1-1/4" x 0.157 Pin, 1" Embed.
- B
- Lasso size
- B01 · 1 in. lasso ID
- Selected size: 1 in. lasso ID.
Built to order.
Part number115A01B01Built to order
| Substrate | Fastener (tension) | Assembly | Governed by |
|---|---|---|---|
| 4000psi NWC | 275 lbs | 50 lbs | Support |
| 3000psi LWC with Metal Deck | 115 lbs | 50 lbs | Support |
Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.
03 · Notes
From the Technical Data Sheet
- Secures MC/AC cable and flexible conduit bundles.
- Bundling: NEC 310.15(C)(1) requires ampacity adjustment where cables are bundled longer than 24 in. without maintaining spacing. Per 310.15(C)(1)(d) no adjustment applies to MC/AC cable without an overall jacket, 12 AWG copper, not more than three current-carrying conductors per cable and not more than 20 current-carrying conductors in the bundle; above 20, 310.15(C)(1)(e) applies a 60 percent factor.
- Designed for demanding high-rise construction.
- Rigid connection to structure eliminates the need to tie off to the ceiling grid below. NEC 300.11(A).
- Finish: zinc plated.
- Support spacing governed by the applicable local building code.
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- Drawings not to scale.
