Simple Trapeze
MC/AC trapeze: pull the cables through the support and keep everything high and tight.
Give us the size, drop and service and we’ll spec the part number and quote the build.

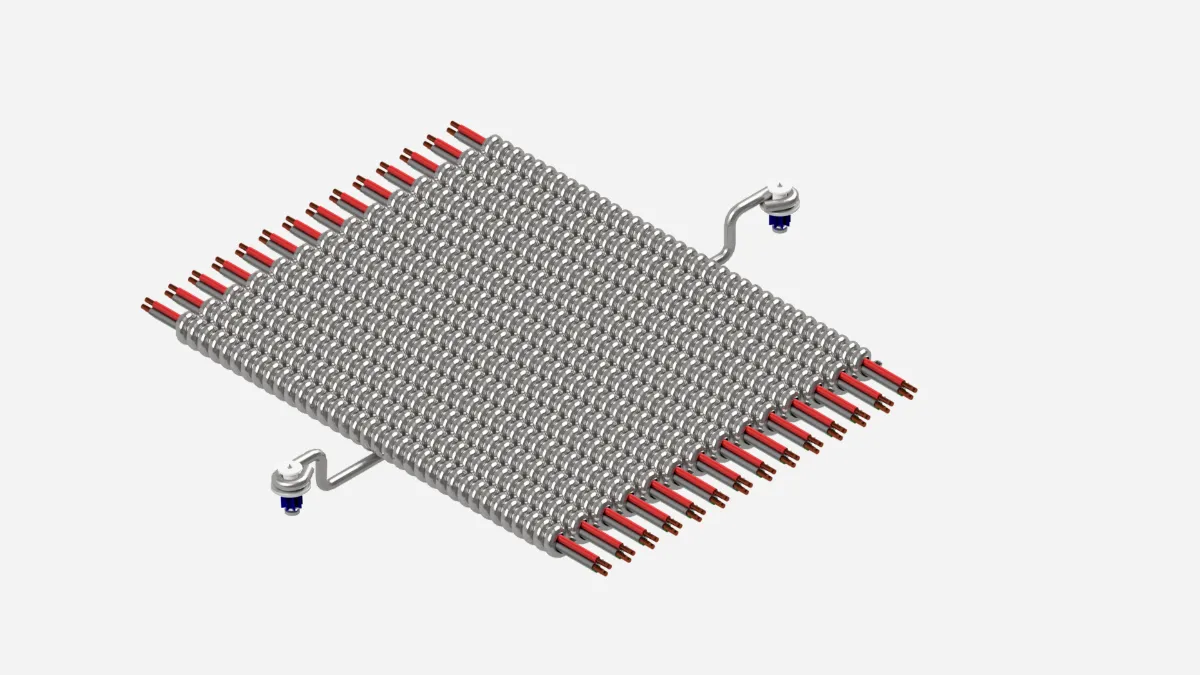

MC/AC cable on the trapeze.
Rated capacity
ICC-ES EvaluatedPMG-1840
The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.
Custom order

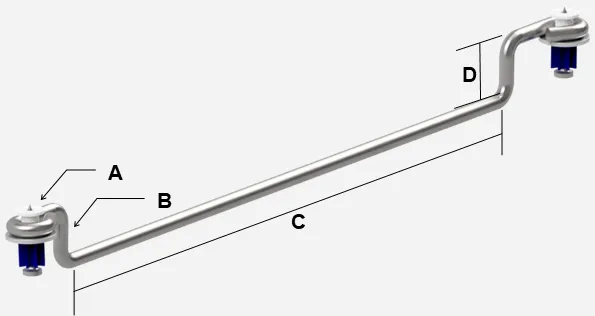

Build a custom part number
- A
- Fastener
- A01 · PD157-114W
- 1-1/4" x 0.157 Pin, 1" Embed.
- B
- Footprint
- B01 · 90 deg foot (S90)
- S90 footprint, rated 90 lbs per ICC-ES PMG-1840 Table 1. Mounts to the underside of the structure; the fastener loads in tension.
- C
- Width
- C12 · 12 in.
- Width, 4 in. to 18 in.
- D
- Drop length
- D08 · 8 in.
Built to order; see the quick order guide.
| Substrate | Fastener (tension) | Each rod | Assembly | Governed by |
|---|---|---|---|---|
| 4000psi NWC | 275 lbs | 90 lbs | 100 lbs | Support |
| 3000psi LWC with Metal Deck | 115 lbs | 90 lbs | 100 lbs | Support |
Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.
Capacity by width
Published load by width
| Width | 4 in. | 6 in. | 8 in. | 10 in. | 12 in. | 14 in. | 16 in. | 18 in. |
|---|---|---|---|---|---|---|---|---|
| Uniform load | 100 lbs | 100 lbs | 90 lbs* | 70 lbs* | 60 lbs* | 50 lbs* | 45 lbs* | 40 lbs* |
Uniform load over the 0.250 in. rod crossbar. * = crossbar bending governs (else the rated load). A single centered point load is limited to half the tabulated value; the configured assembly is further limited by the selected fastener per Section 01. Basis: reference document S.ROD (furnished upon request).
03 · Notes
From the Technical Data Sheet
- Enables airflow to eliminate bundling limitations. NEC 310.15(C)(1)(d).
- Rigid connection to structure eliminates the need to tie off to the ceiling grid below. NEC 300.11(A).
- Finish: zinc plated.
- Support spacing governed by the applicable local building code.
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- Drawings not to scale.
Downloads
Data sheet and ICC-ES report
