Simple Locked-in Trapeze
Conduit locks into the pre-assembled trapeze; no field fabrication.
Configured to the conduit sizes and count on the run.
Give us the size, drop and service and we’ll spec the part number and quote the build.

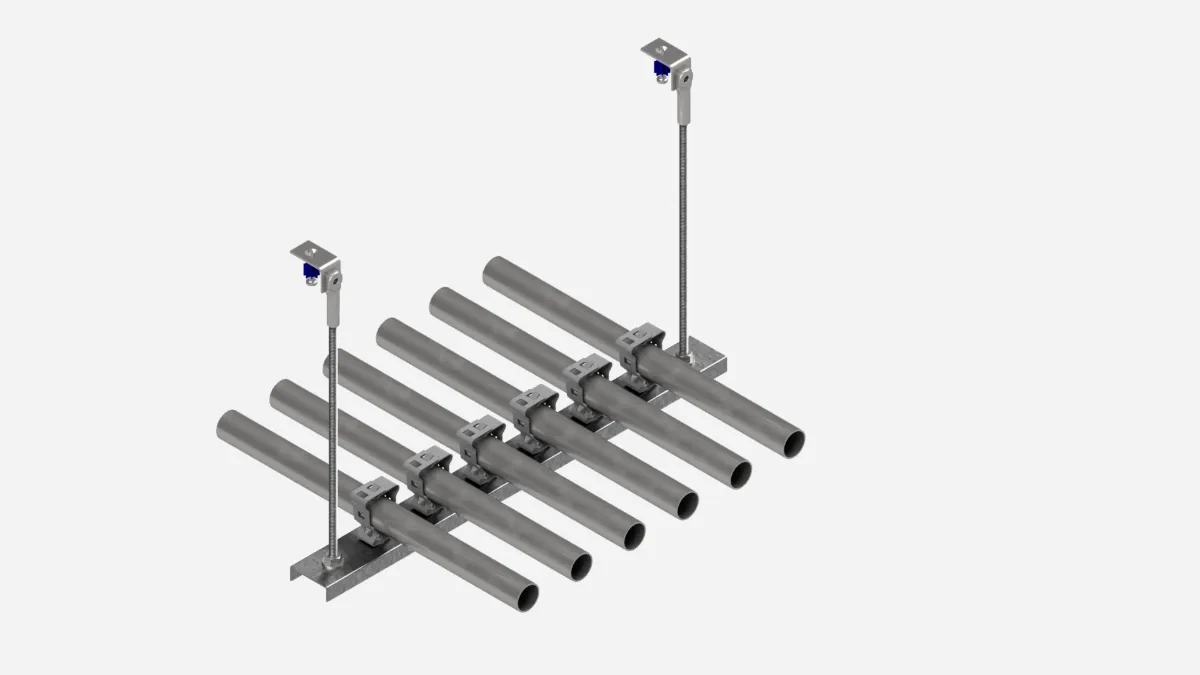

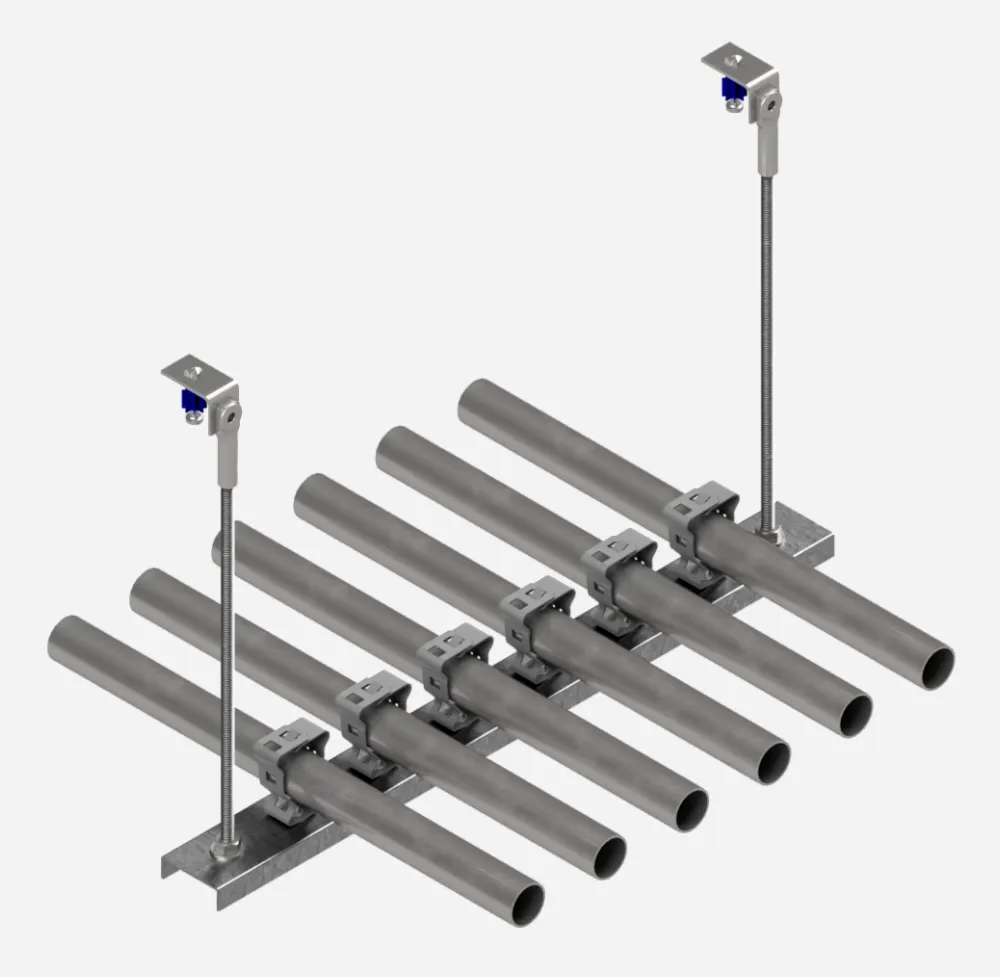

Conduit locked into the trapeze.
Rated capacity
100 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
12 to 36 in.
Width.
4:1
Minimum factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239
ICC-ES EvaluatedPMG-1840
The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.
Custom order

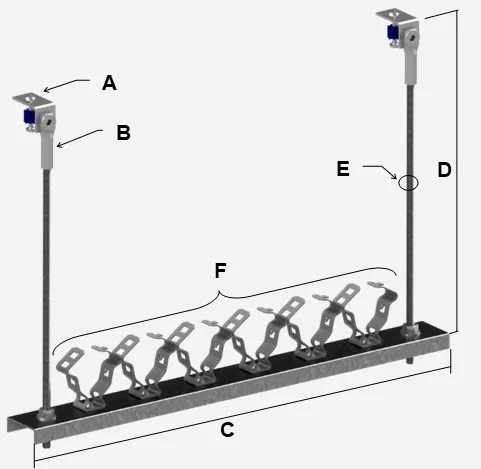

Build a custom part number
- A
- Fastener
- A18 · EC25-ACP32
- 1/4"-20 Post Nut with 1-1/4" x 0.145" Pin, 1" Embed.
- B
- Footprint on the rod
- B03
- Threaded: the all-thread rod threads directly into the post nut; no footprint.
- C
- Width
- C24 · 24 in.
- Width, 12 in. to 36 in.
- D
- Drop length
- D12 · 12 in.
- E
- Rod
- E01 · 1/4 in. all-thread rod
- F
- Conduit size
- per order
- Conduit size, 1/2 to 2 in. EMT
- G
- Number of conduits
- G01 · 1 in.
- Number of conduits
Built to order.
Part numberFinish the dimensionsFinish the dimensions to complete the part number.
| Substrate | Fastener (tension) | Assembly | Governed by |
|---|---|---|---|
| 2500psi NWC | 154 lbs | 100 lbs | Support |
| 3000psi LWC with Metal Deck | 150 lbs | 100 lbs | Support |
Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.
03 · Notes
From the Technical Data Sheet
- Conduit locks into the pre-assembled trapeze; no field fabrication.
- Configured to the conduit sizes and count on the run.
- EMT weights are calculated with 40 percent conductor fill.
- Rigid connection to structure eliminates the need to tie off to the ceiling grid below. NEC 300.11(A).
- Finish: zinc plated.
- Support spacing governed by the applicable local building code.
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- Seismic: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E and F. The capacity published here is already at or below that limit, so it is unchanged on a seismic project.
- Drawings not to scale.
