141OverheadElectrical
Simple Pitchfork

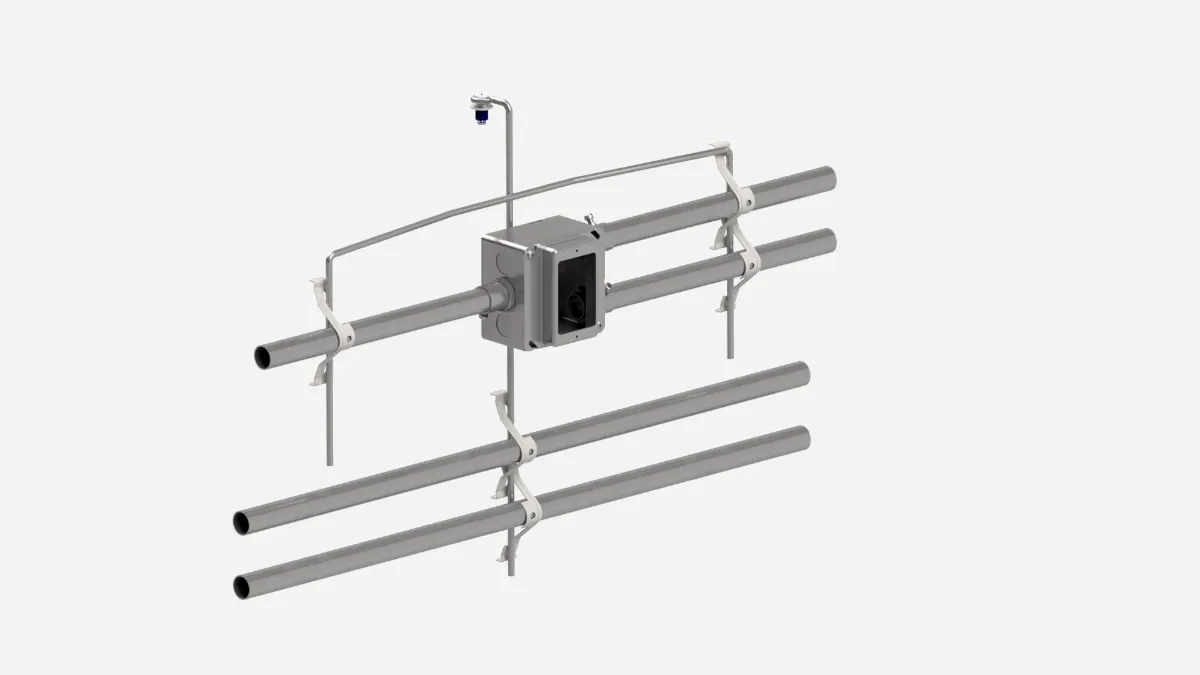

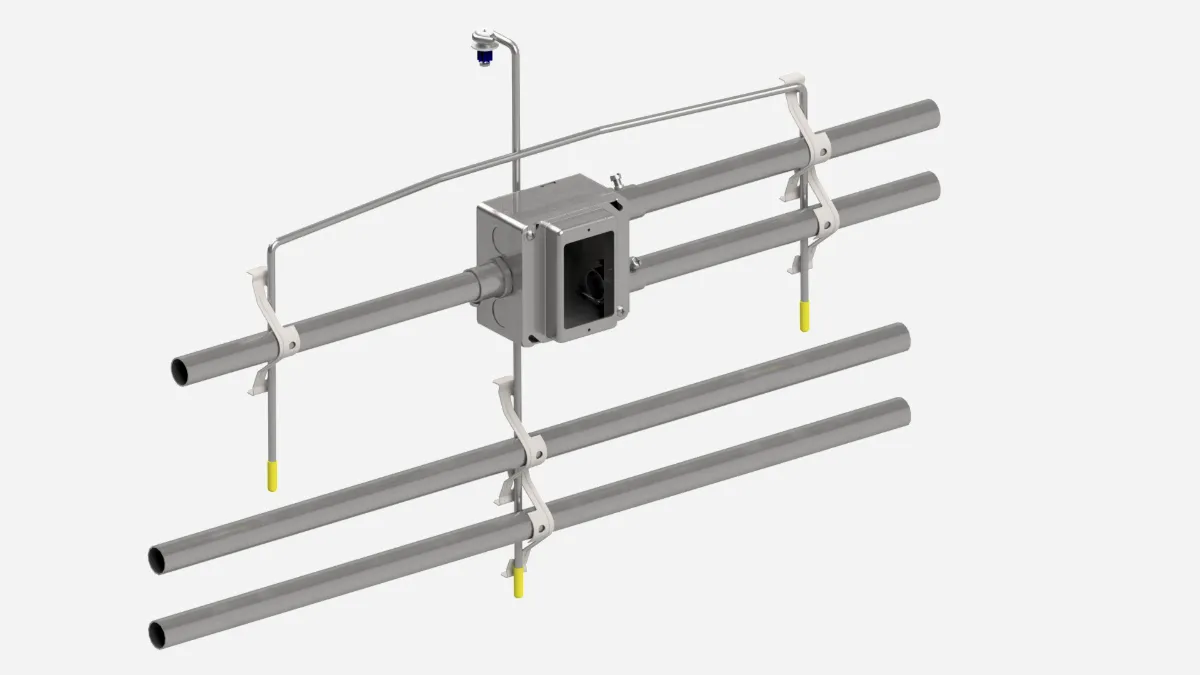

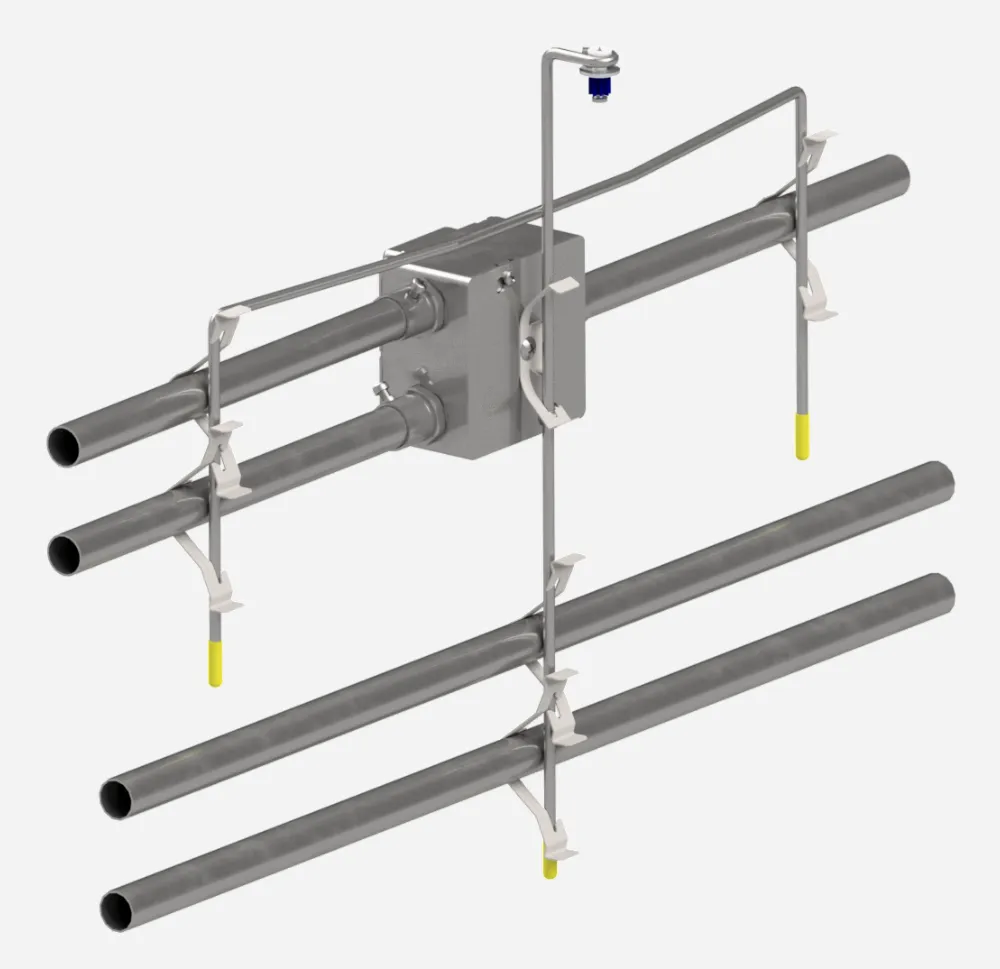

Single connection for box and branch: the crossbar carries the box on a spring steel clip.
Give us the size, drop and service and we’ll spec the part number and quote the build.
Box on the crossbar.
Rated capacity
90 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
12 - 120 in.
Drop length.
4:1
Minimum factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239
ICC-ES EvaluatedPMG-1840
The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.
Custom order

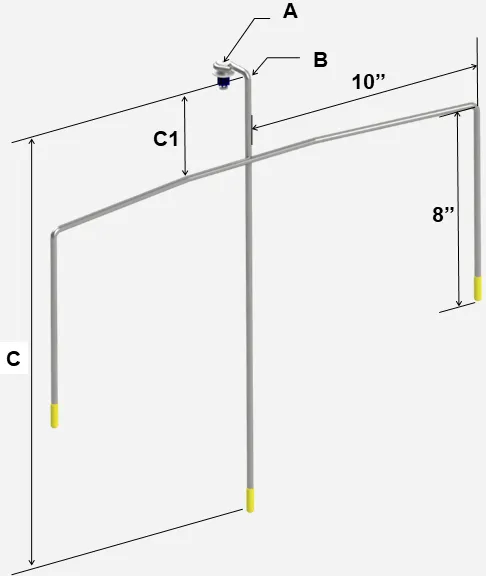

Build a custom part number
- A
- Fastener
- A01 · PD157-114W
- 1-1/4" x 0.157 Pin, 1" Embed.
- B
- Footprint
- B01 · 90 deg foot (S90)
- S90 footprint, rated 90 lbs per ICC-ES PMG-1840 Table 1. Mounts to the underside of the structure; the fastener loads in tension.
- C
- Drop length
- C24 · 24 in.
- Drop length, 12 in. to 120 in.
- C1
- Crossbar height
- C110 · 10 in.
Built to order.
Part number141A01B01C24C110Built to order
| Substrate | Fastener (tension) | Assembly | Governed by |
|---|---|---|---|
| 4000psi NWC | 275 lbs | 90 lbs | Support |
| 3000psi LWC with Metal Deck | 115 lbs | 90 lbs | Support |
Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.
03 · Notes
From the Technical Data Sheet
- Single connection for box and branch: the crossbar carries the box on a spring steel clip.
- Enables airflow to eliminate bundling limitations. NEC 310.15(C)(1)(d).
- Crossbar height 10 in. typical; fixed dimensions can be changed per order.
- Rigid connection to structure eliminates the need to tie off to the ceiling grid below. NEC 300.11(A).
- Finish: zinc plated.
- Support spacing governed by the applicable local building code.
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- Seismic: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E and F. The capacity published here is already at or below that limit, so it is unchanged on a seismic project.
- Drawings not to scale.
