Simple Adjustable Spanner, studs at 16 in. on center
- A
- A16 studs at 16 in. on center
No load rating published.
163In-wall

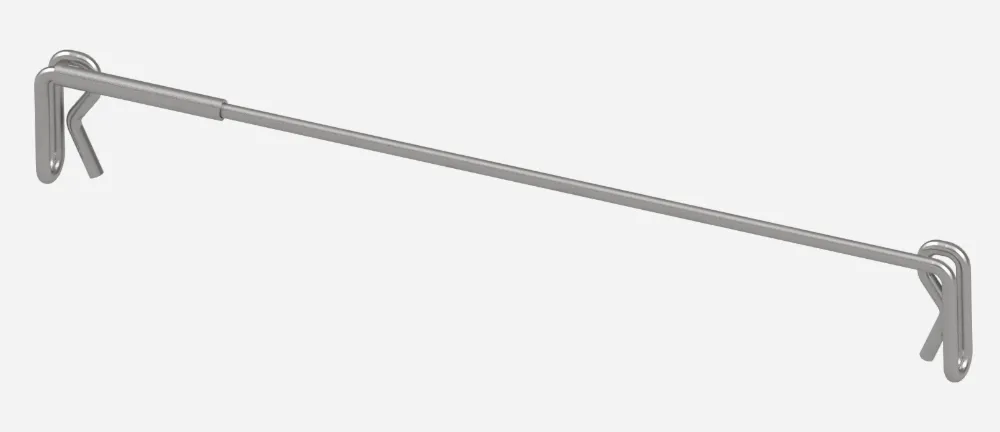

Simple Adjustable Spanner

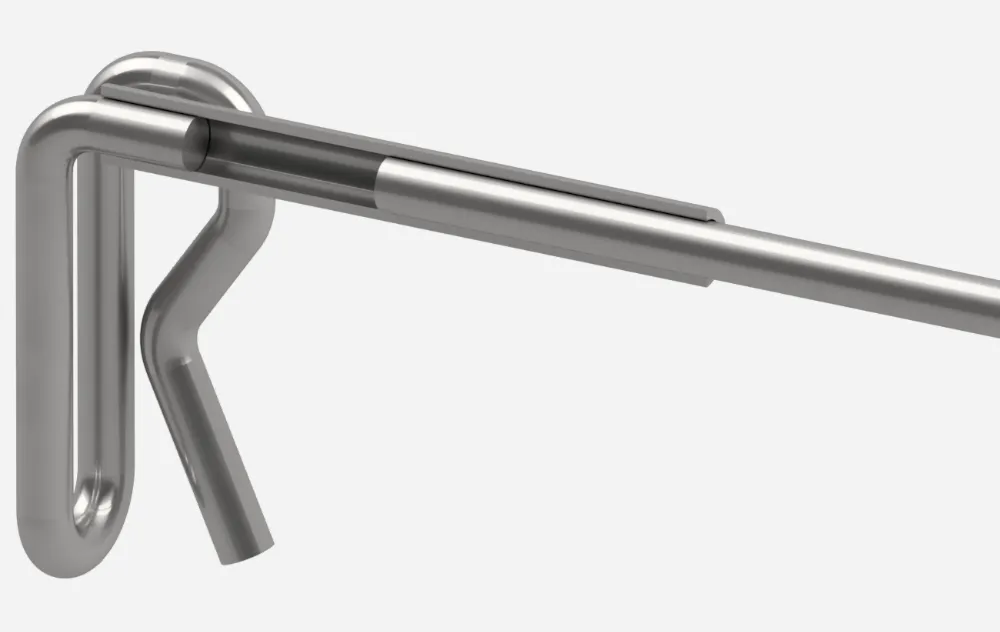

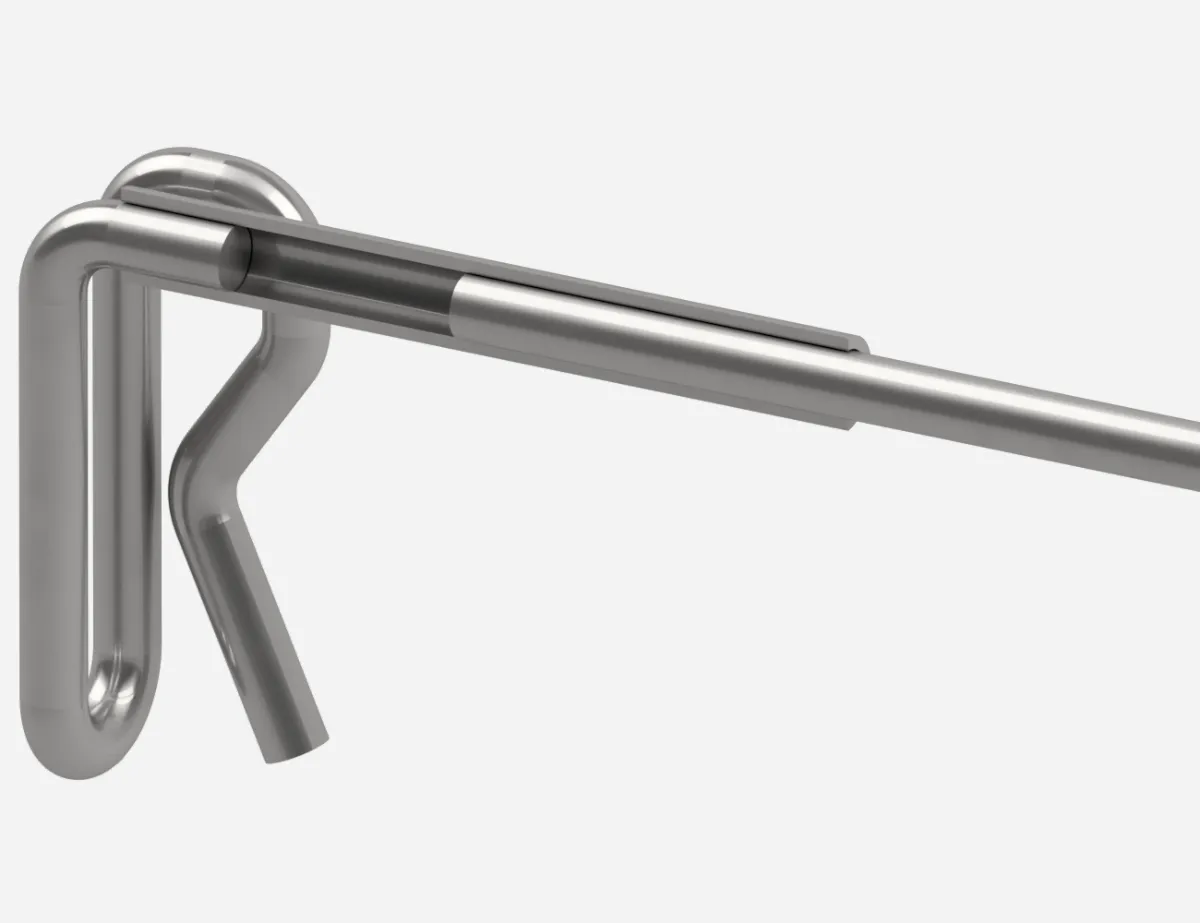

Adjustable spanner: a sleeve gives 1 in. of adjustment between the studs.
Slides through opposing stud holes and locks in place. Secures EMT, MC/AC and flexible conduit.
Give us the size, drop and service and we’ll spec the part number and quote the build.

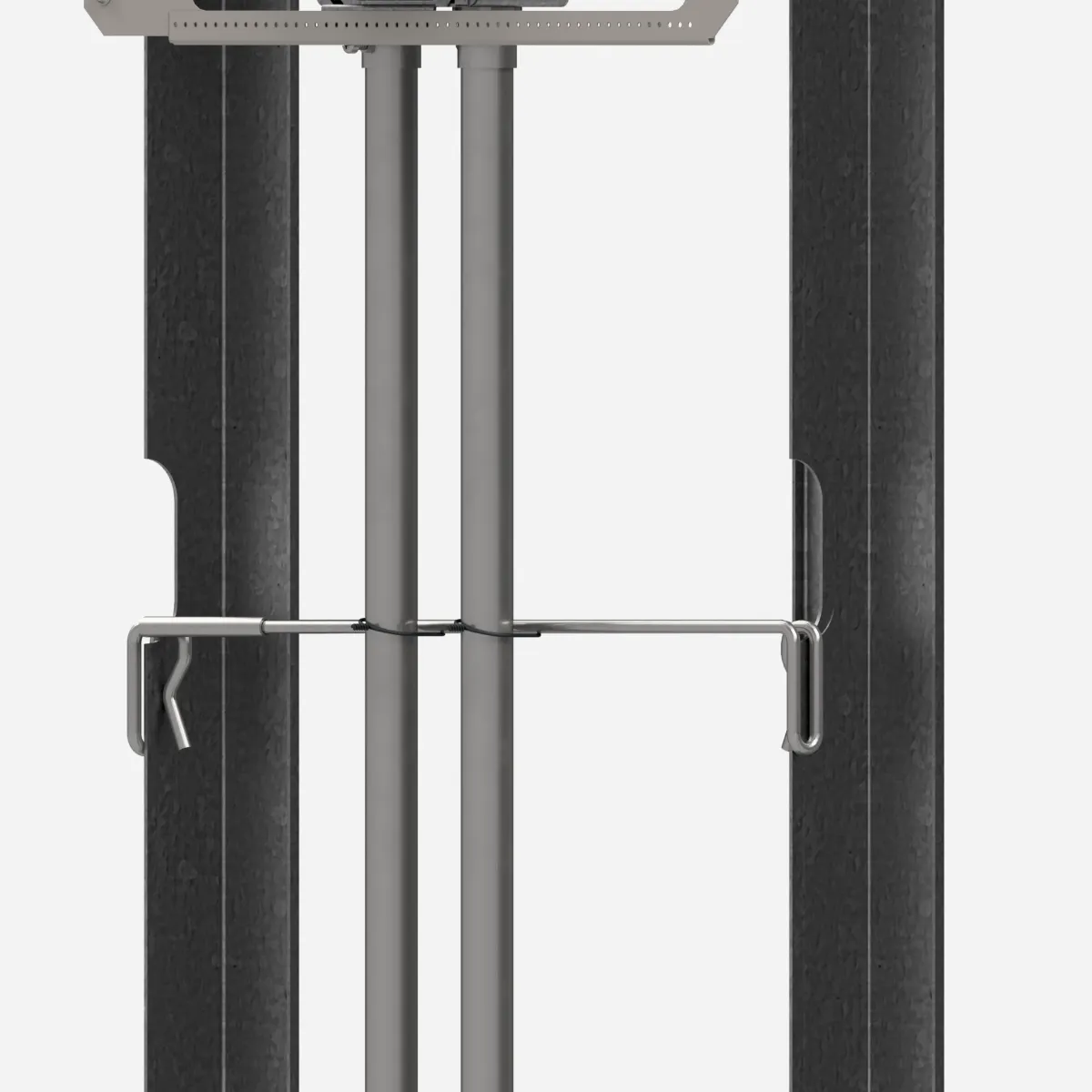

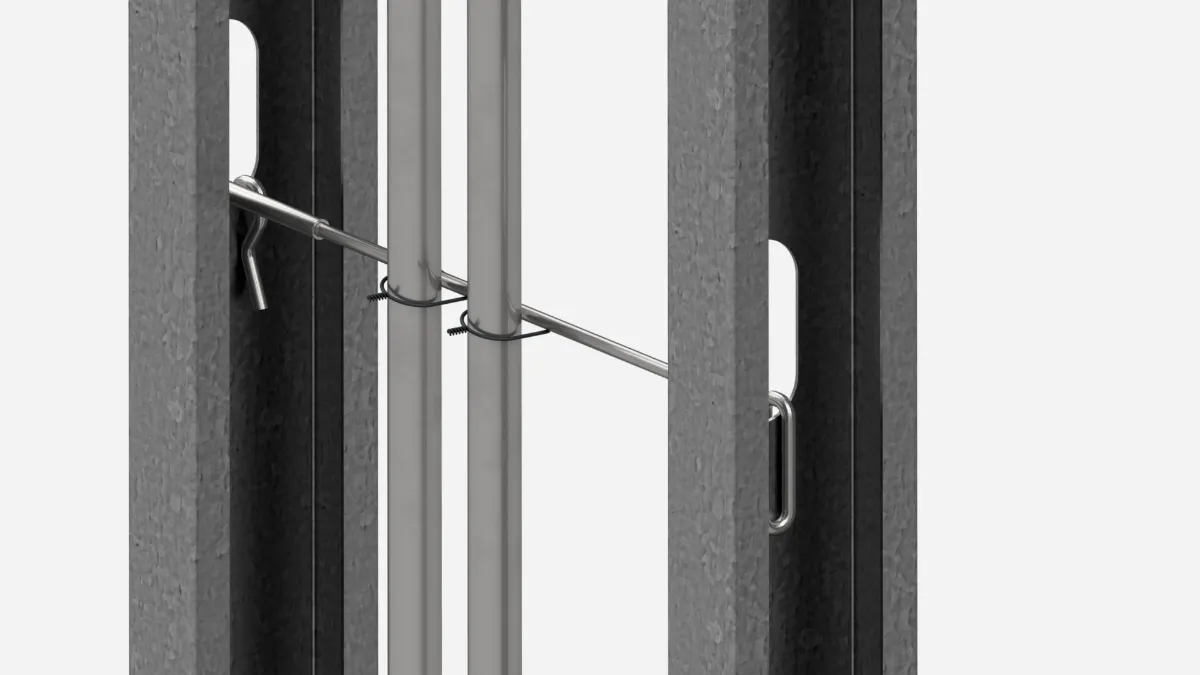

Adjustable spanner in the stud bay.
Function
No rating
No load rating is published.
16 or 24 in.
Stud spacing on center, A16 or A24.
Alignment and securement device: spans the stud bay through the opposing stud punch-outs to position and secure the utility in the wall. No load rating is published.
Order
Pick the stud spacing
Simple Adjustable Spanner, studs at 24 in. on center
- A
- A24 studs at 24 in. on center
No load rating published.
03 · Notes
From the Technical Data Sheet
- Adjustable spanner: a sleeve gives 1 in. of adjustment between the studs.
- Slides through opposing stud holes and locks in place.
- Secures EMT, MC/AC and flexible conduit.
- Galvanized rod; corrosion resistant.
- Drawings not to scale.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and quote the build.
