195EOverheadElectrical
Cantilever Trapeze

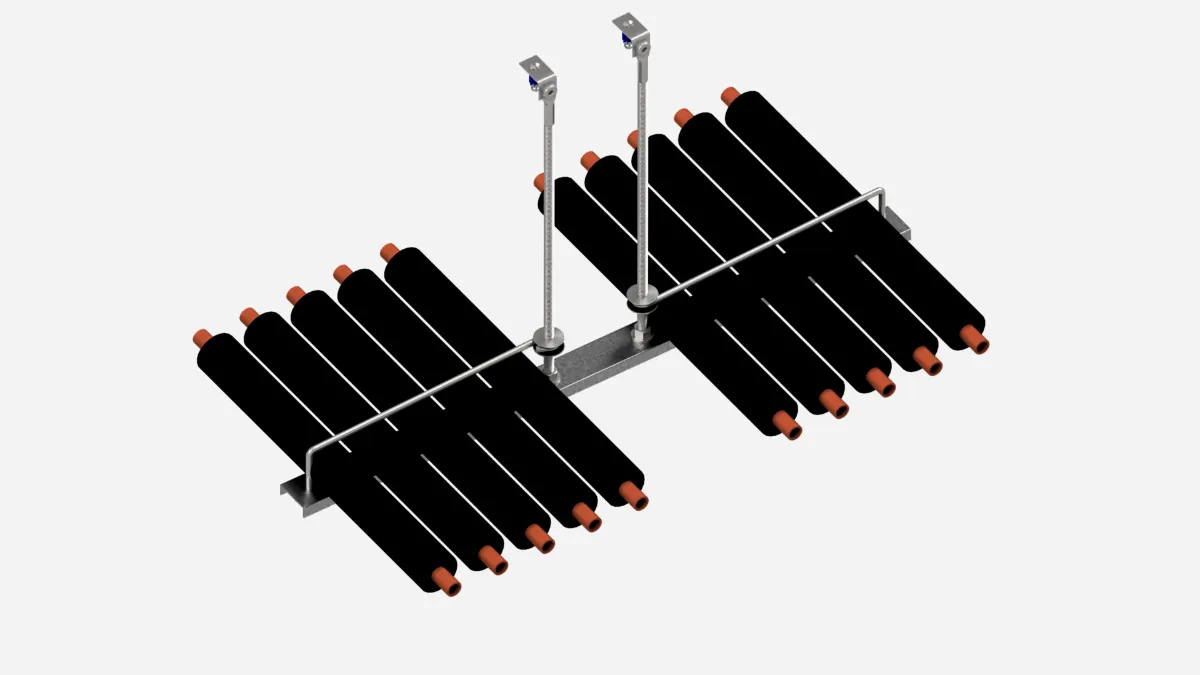

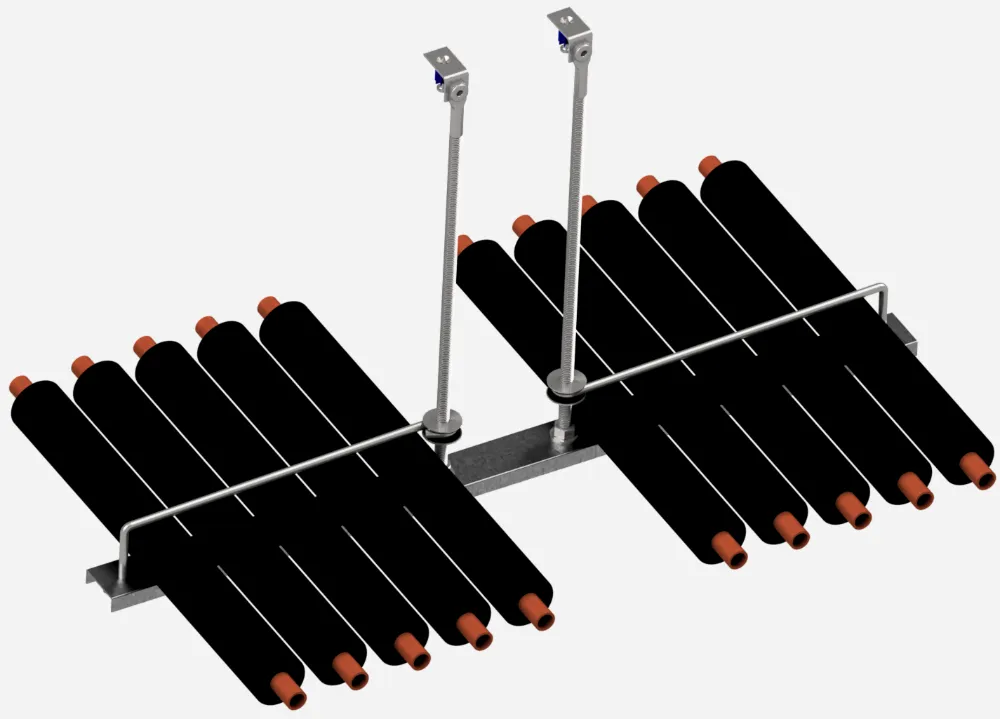

Open the latch and land MC/AC cable or conduit without pulling through the support; wings cantilever up to 18 in. from the all-thread rod drop.
Give us the size, drop and service and we’ll spec the part number and quote the build.

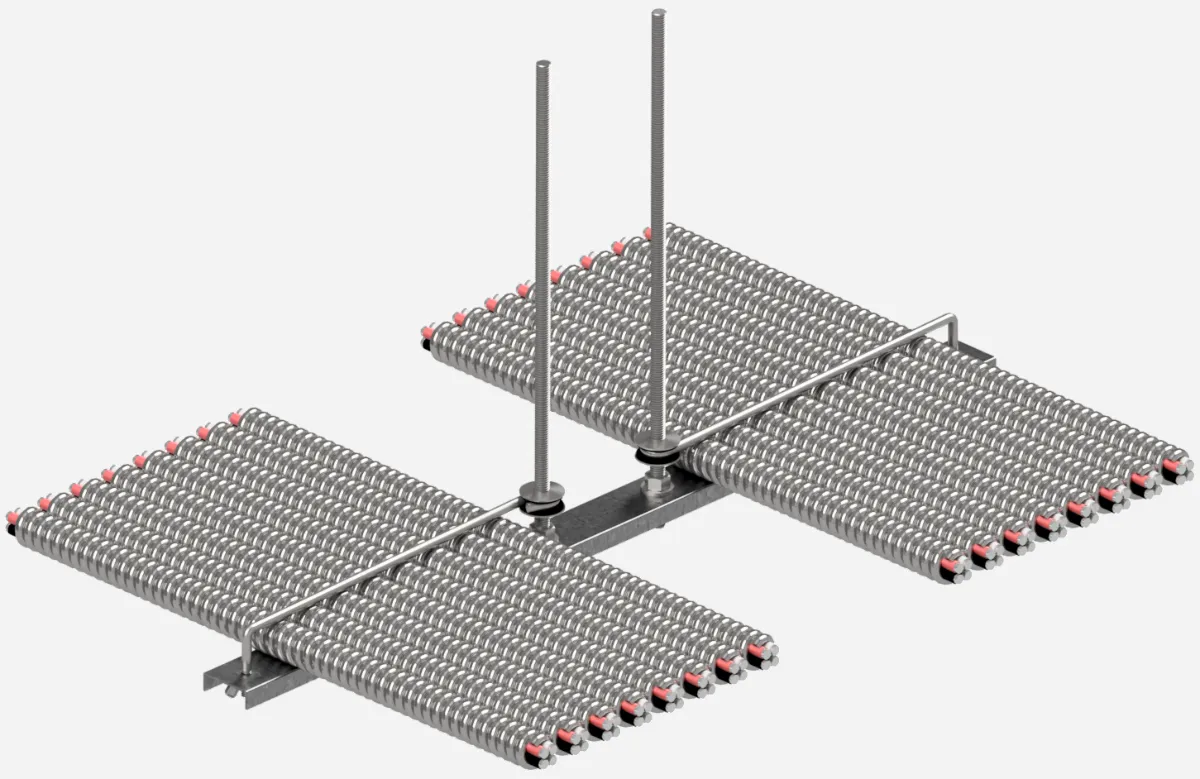

MC/AC cable on the wings.
Rated capacity
100 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
4 - 18 in.
Wings.
4:1
Minimum factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239
ICC-ES EvaluatedPMG-1840
The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.
Custom order

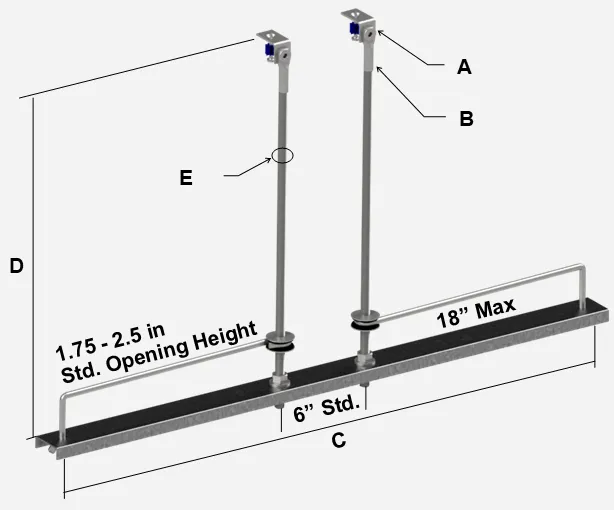

Build a custom part number
- A
- Fastener
- A18 · EC25-ACP32
- 1/4"-20 Post Nut with 1-1/4" x 0.145" Pin, 1" Embed.
- B
- Footprint on the rod
- B03
- Threaded: the all-thread rod threads directly into the post nut; no footprint.
- C

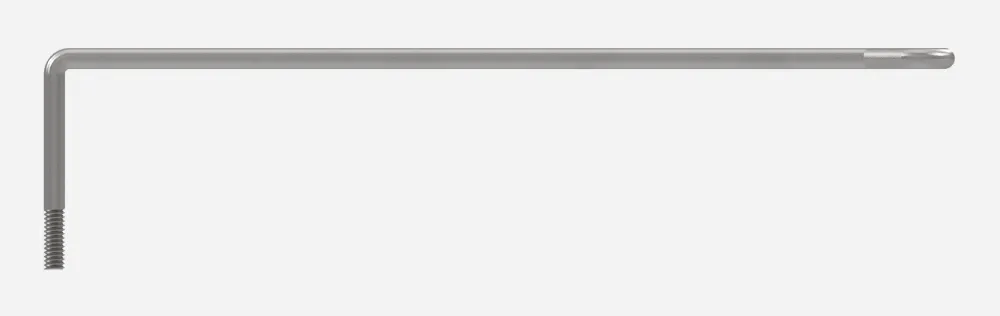

- Wings
- C12 · 12 in.
- Wings, 4 in. to 18 in.
- D
- Drop length
- D12 · 12 in.
- E
- Rod
- E01 · 1/4 in. all-thread rod
Built to order.
Part number195A18B03C12D12E01Built to order
| Substrate | Fastener (tension) | Assembly | Governed by |
|---|---|---|---|
| 2500psi NWC | 154 lbs | 100 lbs | Support |
| 3000psi LWC with Metal Deck | 150 lbs | 100 lbs | Support |
Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.
03 · Notes
From the Technical Data Sheet
- When supporting MC there is no need to derate conductors. NEC 310.15(C)(1)(d).
- Catalog V1.1 lists this product as model 131; 195 is the number of record per the ICC listing.
- Rigid connection to structure eliminates the need to tie off to the ceiling grid below. NEC 300.11(A).
- Finish: zinc plated.
- Support spacing governed by the applicable local building code.
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- Seismic: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E and F. The capacity published here is already at or below that limit, so it is unchanged on a seismic project.
- Drawings not to scale.
