195POverheadMechanical
Cantilever Trapeze

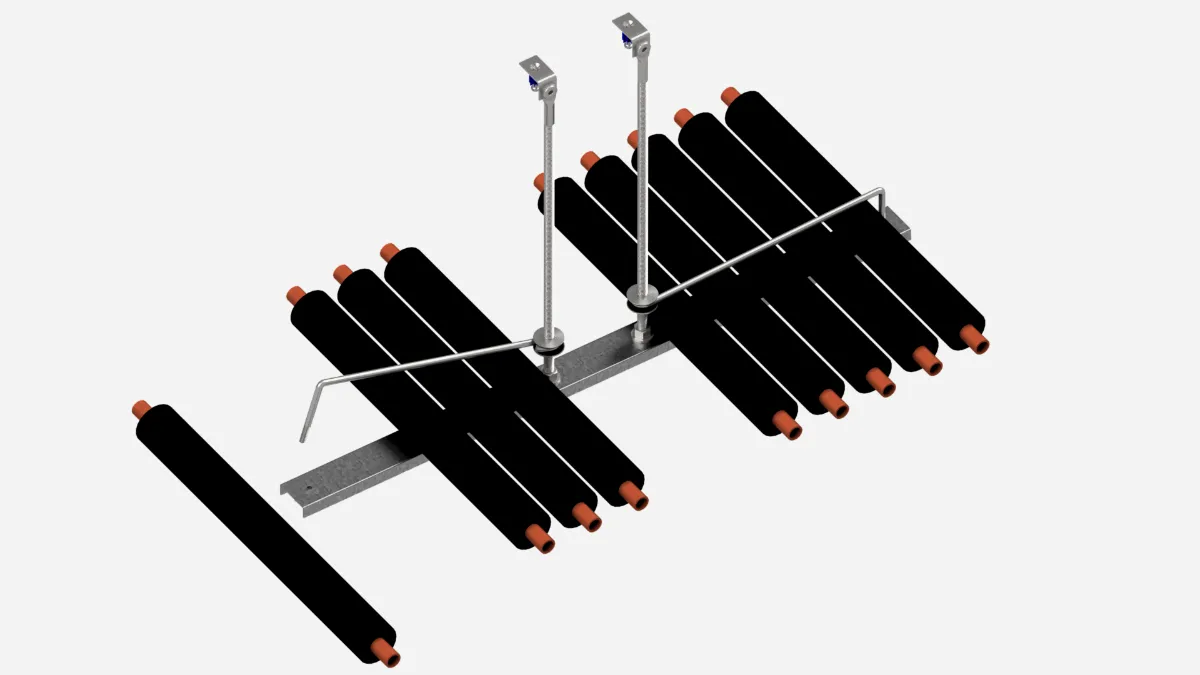

Open the latch and land VRF line sets without pulling through the support; wings cantilever up to 18 in. from the all-thread rod drop.
Give us the size, drop and service and we’ll spec the part number and quote the build.
VRF line sets on the wings.
Rated capacity
100 lbs
Support rated load, listed per ICC-ES PMG-1840 Table 1
4 - 18 in.
Wings.
4:1
Minimum factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239
ICC-ES EvaluatedPMG-1840
The rated load applies to the support assembly only; the attachment to structure is evaluated separately. Dry locations only, per the listing.
Custom order
Build a custom part number

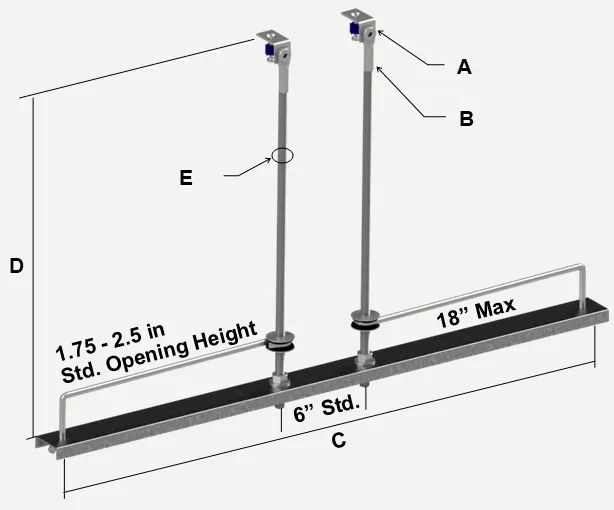

- A
- Fastener
- A18 · EC25-ACP32
- 1/4"-20 Post Nut with 1-1/4" x 0.145" Pin, 1" Embed.
- B
- Footprint on the rod
- B03
- Threaded: the all-thread rod threads directly into the post nut; no footprint.
- C
- Wings
- C12 · 12 in.
- Wings, 4 in. to 18 in.
- D
- Drop length
- D12 · 12 in.
- E
- Rod
- E01 · 1/4 in. all-thread rod
Built to order.
Part number195A18B03C12D12E01Built to order
| Substrate | Fastener (tension) | Assembly | Governed by |
|---|---|---|---|
| 2500psi NWC | 154 lbs | 100 lbs | Support |
| 3000psi LWC with Metal Deck | 150 lbs | 100 lbs | Support |
Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.
03 · Notes
From the Technical Data Sheet

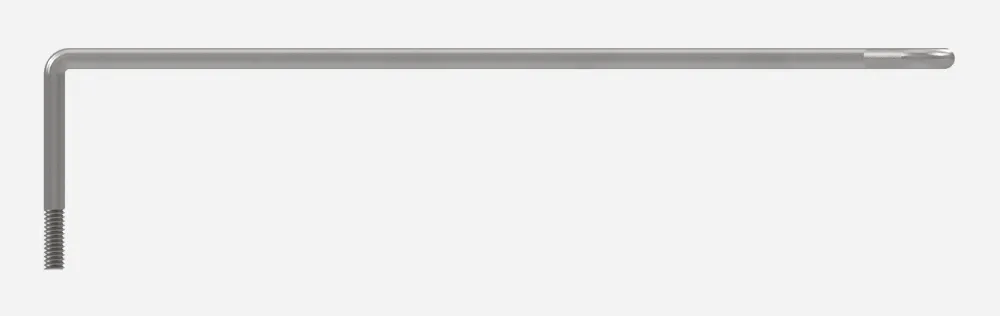

- Carries insulated VRF (variable refrigerant flow) line sets; the latch opens so the lines land in place.
- Catalog V1.1 lists this product as model 131; 195 is the number of record per the ICC listing.
- Rigid connection to structure; listed for the support of plumbing and mechanical piping under the IPC, UPC, IMC and UMC and their California editions (ICC-ES PMG-1840).
- Finish: zinc plated.
- Support spacing per the applicable plumbing or mechanical code (IPC 308.5, UPC 313.3).
- Dry locations only, per the listing.
- Rated load carries a minimum 4:1 factor of safety on ultimate tested capacity per ICC-ES LC1041 and UL 2239.
- The rated load applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- Seismic: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E and F. The capacity published here is already at or below that limit, so it is unchanged on a seismic project.
