Simple DAS Antenna Support
DAS antenna support: one component hangs the antenna from structure; the rod ends in a 7/8 in. ID loop.
Give us the size, drop and service and we’ll spec the part number and quote the build.
DAS antenna hung from structure.
Published capacity
90 lbs
Rated load, an SSF published capacity
7/8 in. ID loop
Length per order.
The published capacity applies to the support assembly only; the attachment to structure is evaluated separately. This model is not part of the ICC-ES PMG-1840 listing.
Custom order
Build a custom part number
- A
- Fastener

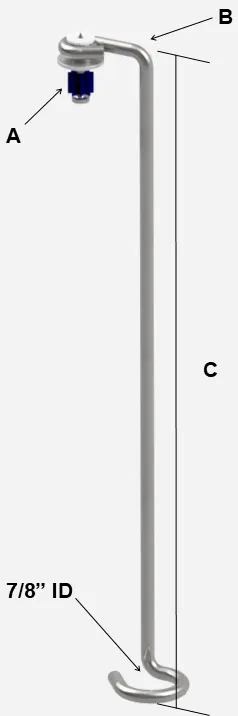

- A01 · PD157-114W
- 1-1/4" x 0.157 Pin, 1" Embed.
- B
- Footprint
- B01 · 90 deg foot (S90)
- S90 footprint, rated 90 lbs per ICC-ES PMG-1840 Table 1. Mounts to the underside of the structure; the fastener loads in tension.
- C
- Overall length
- C24 · 24 in.
Built to order.
Part number251A01B01C24Built to order
| Substrate | Fastener (tension) | Assembly | Governed by |
|---|---|---|---|
| 4000psi NWC | 275 lbs | 90 lbs | Support |
| 3000psi LWC with Metal Deck | 115 lbs | 90 lbs | Support |
Seismic limit: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E, and F.
03 · Notes
From the Technical Data Sheet
- DAS antenna support: one component hangs the antenna from structure; the rod ends in a 7/8 in. ID loop.
- Rigid connection to structure eliminates the need to tie off to the ceiling grid below. NEC 300.11(A).
- Finish: zinc plated.
- Support spacing governed by the applicable local building code.
- The published capacity applies to the support assembly only; the attachment to structure is evaluated separately (Section 01).
- This model is not part of the ICC-ES PMG-1840 listing.
- Seismic: per ASCE 7, power actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E and F. The capacity published here is already at or below that limit, so it is unchanged on a seismic project.
- Drawings not to scale.
