Cast-in-Place Tree
- A

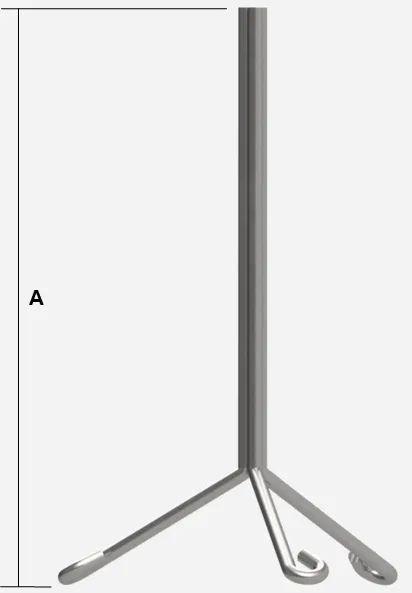

- A08 Height, in.
No load rating published
300Cast-in-placeElectrical and plumbing
Cast-in-Place Tree

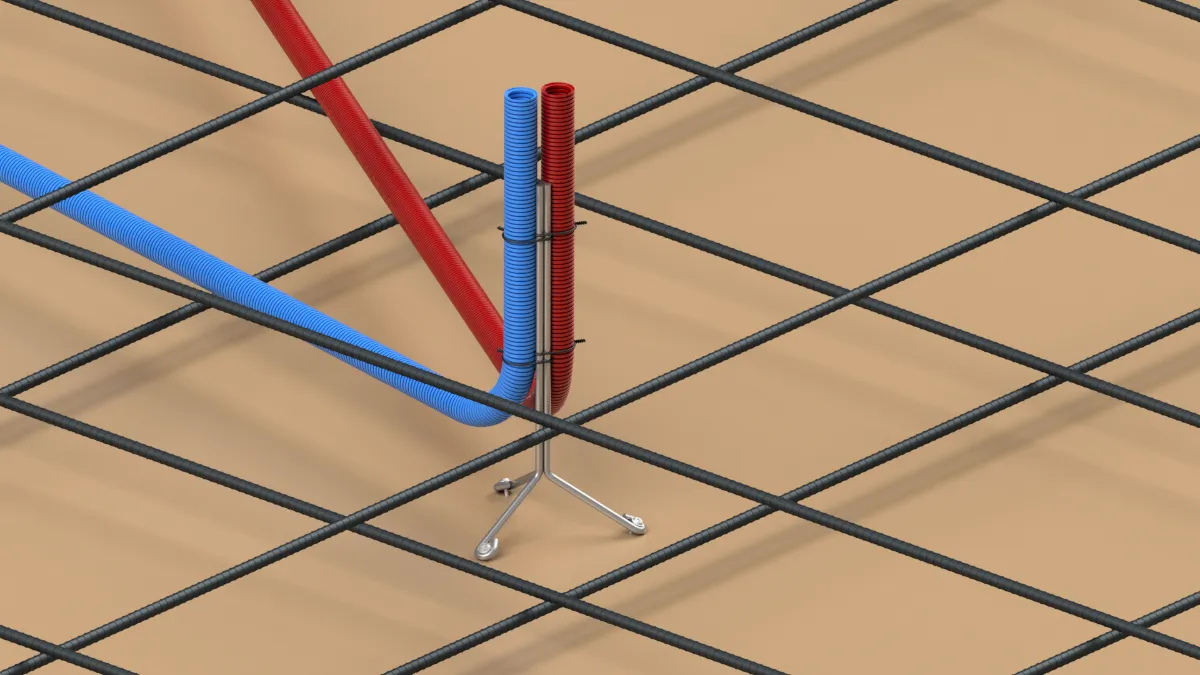

Cast-in-place tree: rigid pre-pour support that positions pipe and conduit in the deck before and during the pour.
Give us the size, drop and service and we’ll spec the part number and quote the build.

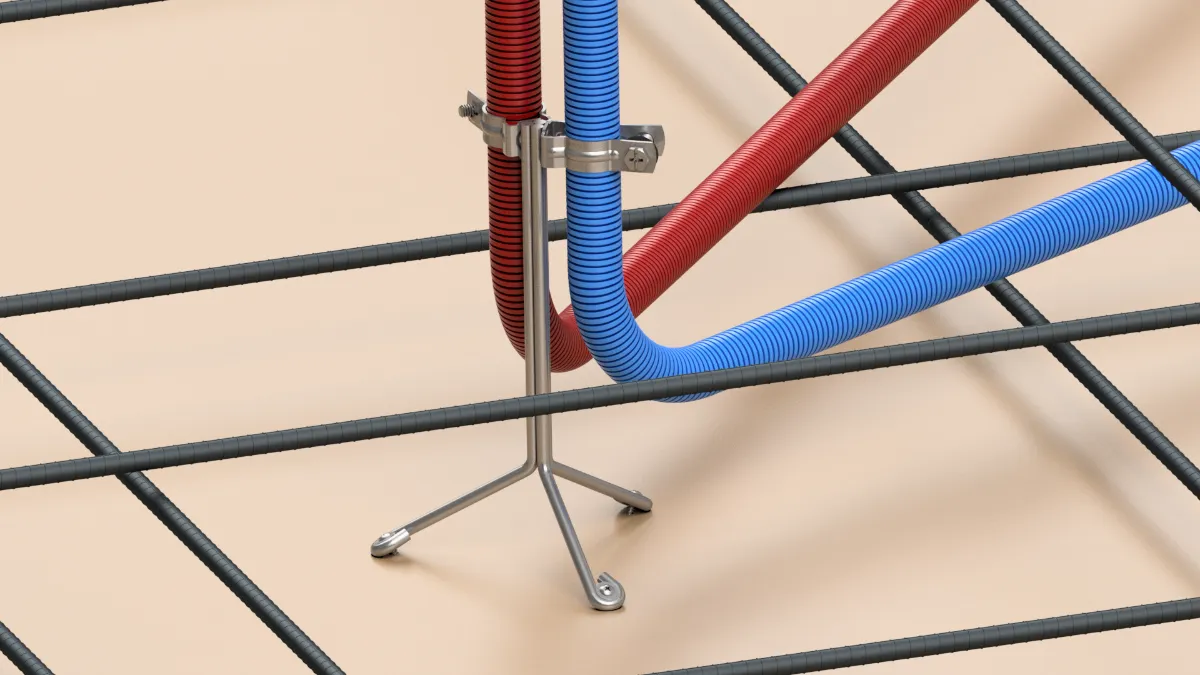

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Ready to ship
Stock parts, ready to order
Cast-in-Place Tree
- A
- A10 Height, in.
No load rating published
Cast-in-Place Tree
- A
- A12 Height, in.
No load rating published
Custom order
Specify the size
Other sizes are custom made per order.
Height, in.
Part number300A__Finish the selections to complete the request.
03 · Notes
From the Technical Data Sheet
- Cast-in-place tree: rigid pre-pour support that positions pipe and conduit in the deck before and during the pour.
- Angled feet conceal the support when the forms are removed.
- Galvanized rod; corrosion resistant.
- Rigid support: stable pipe and conduit positioning during the pour.
- Designed for demanding high-rise construction.
- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and quote the build.
