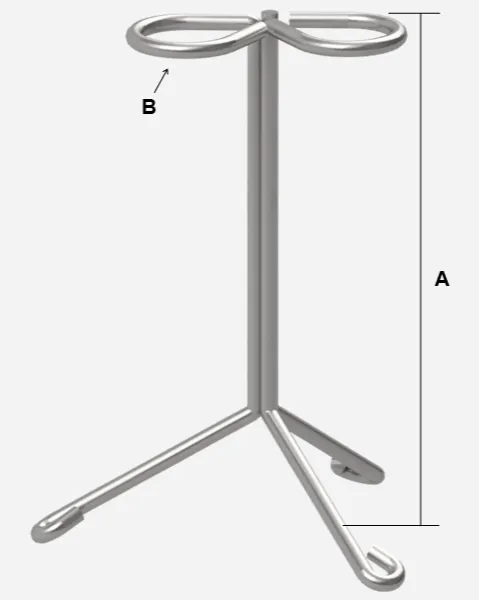

Double Loop Cast-in-Place Tree
- A
- A10 Height, in.
- B
- B02 Hole ID
No load rating published
302Cast-in-placeElectrical and plumbing
Double Loop Cast-in-Place Tree
Cast-in-place tree with two integrated loops: secures two pipes without extra ties.
Give us the size, drop and service and we’ll spec the part number and quote the build.

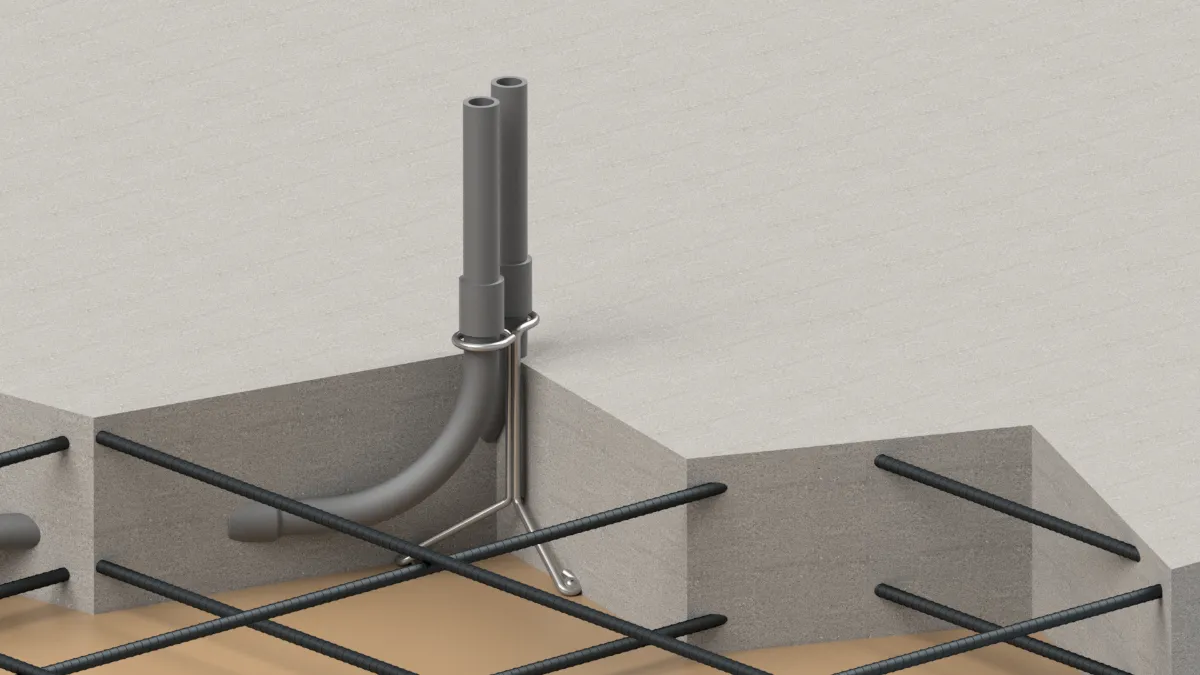

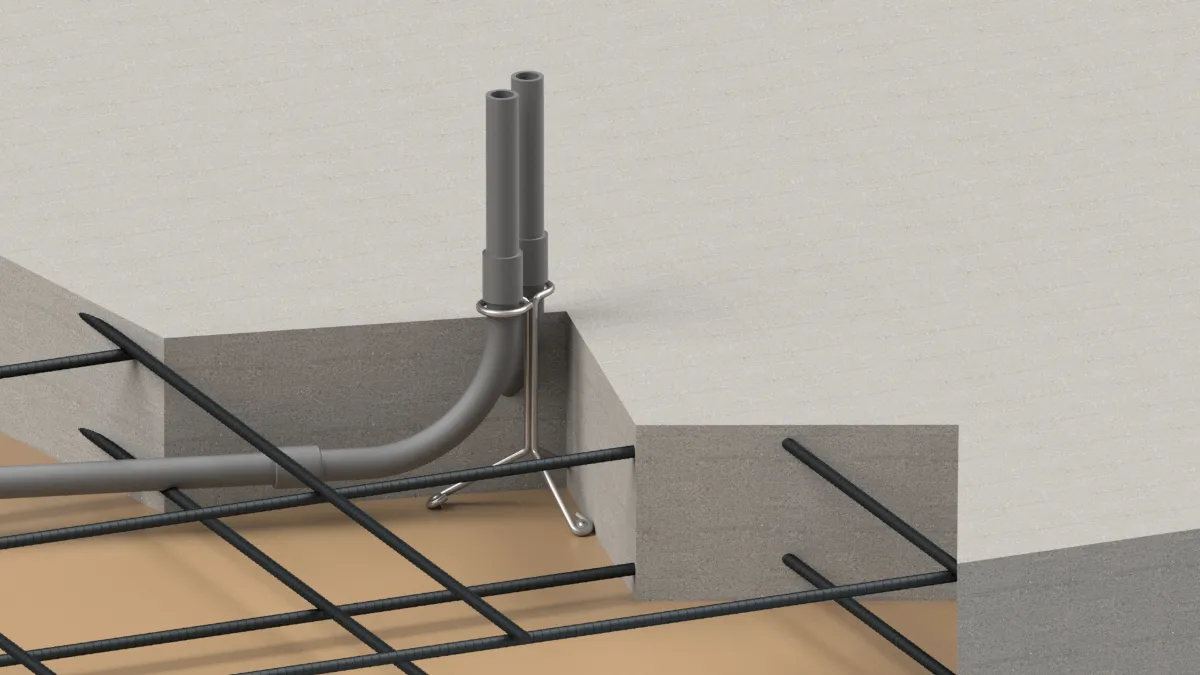

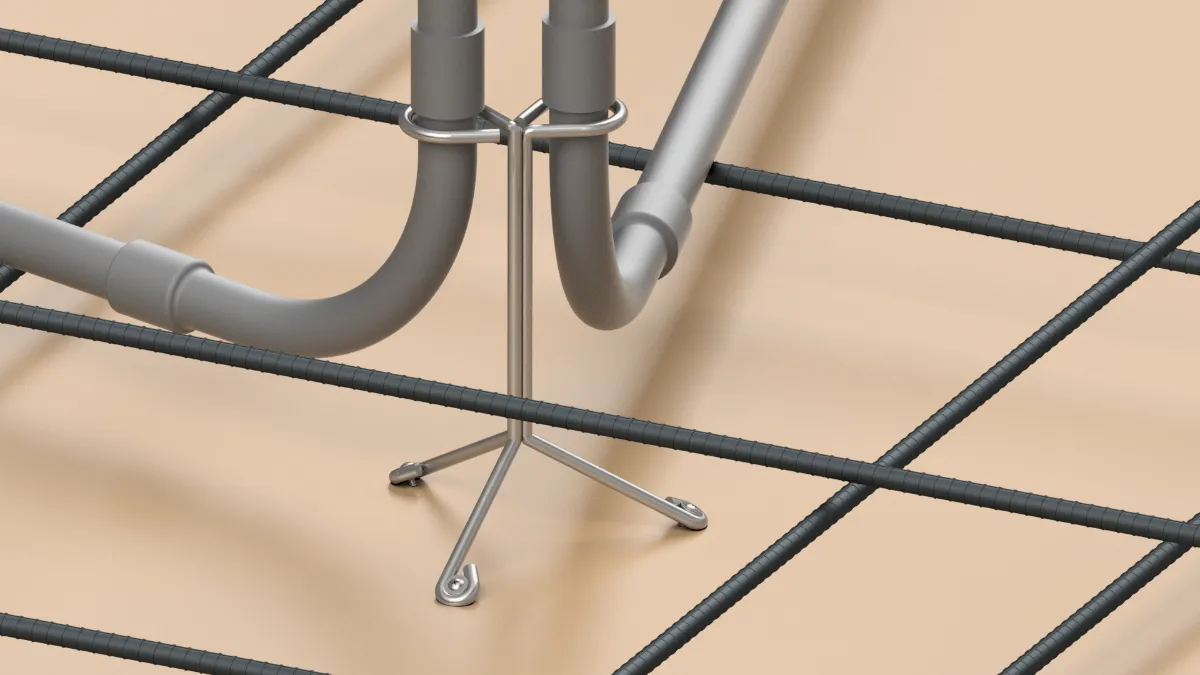

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Ready to ship
Stock parts, ready to order
Custom order
Specify the size
Other sizes are custom made per order.
Height, in.
Hole ID: 1.25 / 1.50 / 1.75 / 2.00 / 2.25 / 2.50 in. (XX other); order a larger hole ID to pass couplings
Part number302A__B__Finish the selections to complete the request.
03 · Notes
From the Technical Data Sheet
- Cast-in-place tree with two integrated loops: secures two pipes without extra ties.
- Angled feet conceal the support when the forms are removed.
- Galvanized rod; corrosion resistant.
- Rigid support: stable pipe and conduit positioning during the pour.
- Designed for demanding high-rise construction.
- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
