Cast-in-Place Trapeze
- A
- A03 Height, in.
- B
- B08 Width, in.
No load rating published
310Cast-in-placeElectrical and plumbing
Cast-in-Place Trapeze

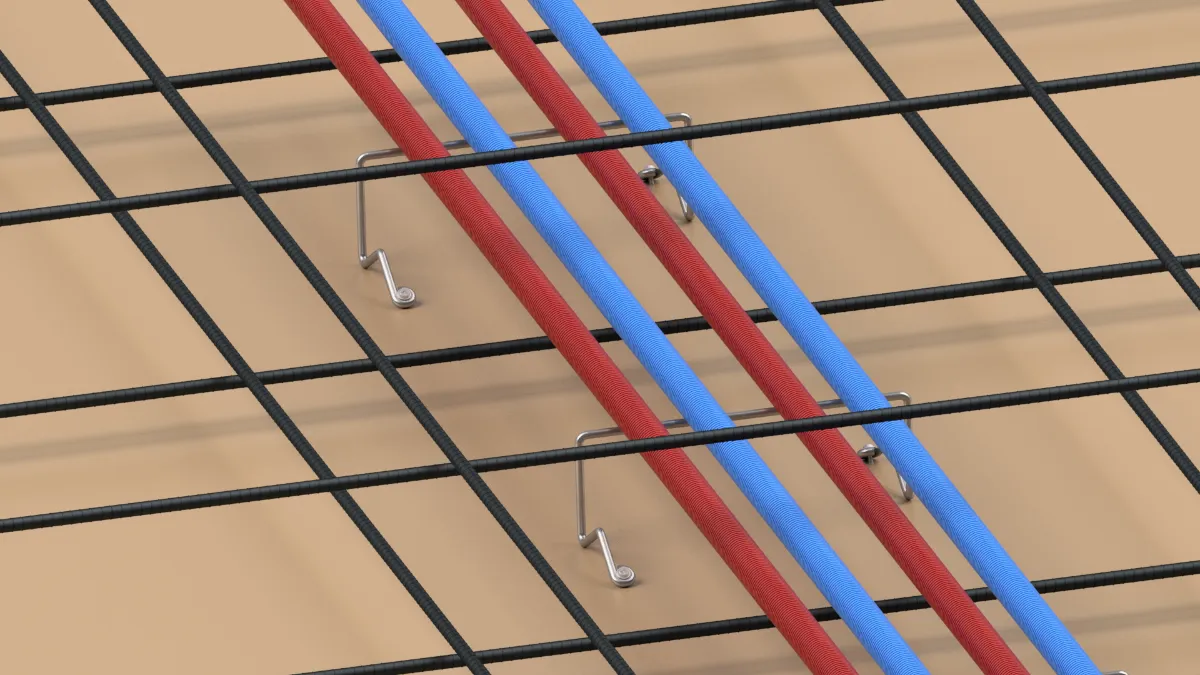

Cast-in-place trapeze: locks pipe and conduit into the center third of the deck; size the height from the deck thickness table.
Give us the size, drop and service and we’ll spec the part number and quote the build.
In use.
Function
Pre-pour

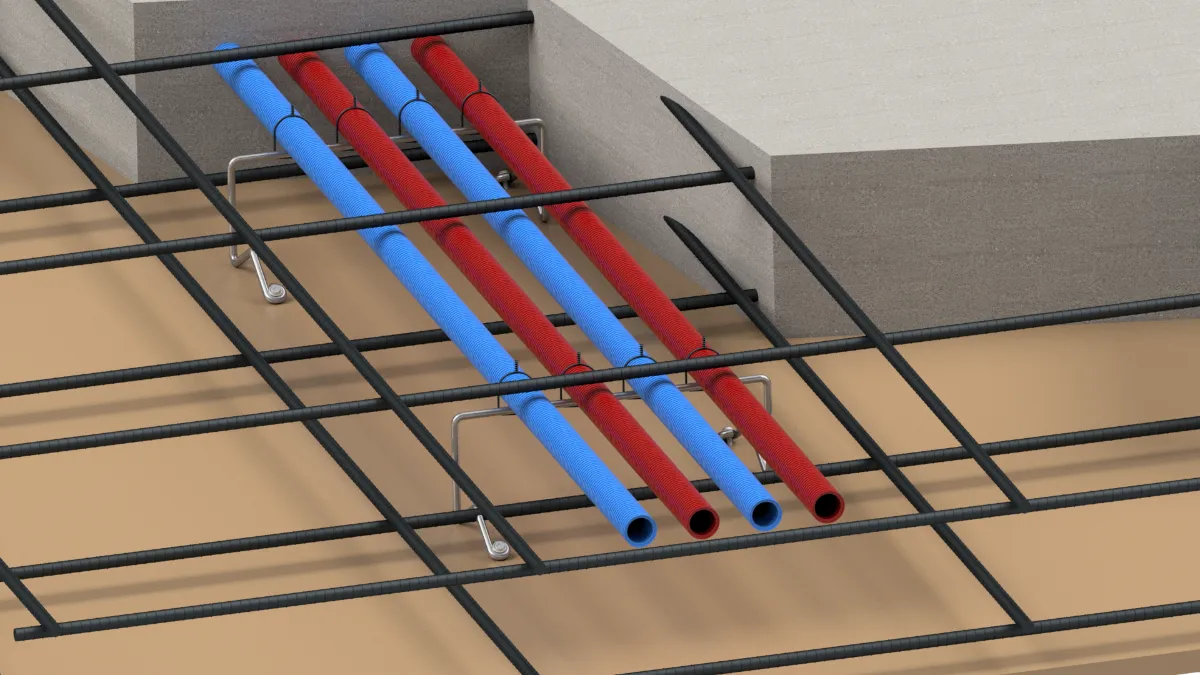

Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Ready to ship
Stock parts, ready to order
Cast-in-Place Trapeze
- A
- A03 Height, in.
- B
- B12 Width, in.
No load rating published
Custom order
Specify the size
Other sizes are custom made per order.

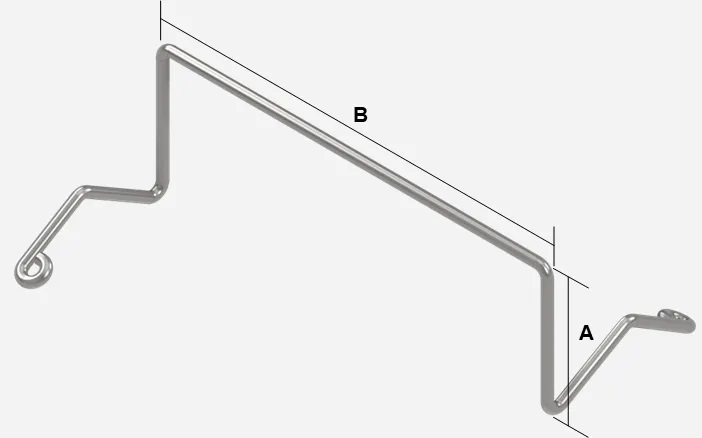

Height, in.; minimum per the deck thickness table
Width, in.
Part number310A__B__Finish the selections to complete the request.
Deck thickness
| 6 in. | 2.00 in. |
| 7 in. | 2.50 in. |
| 8 in. | 3.00 in. |
| 9 in. | 3.00 in. |
| 10 in. | 3.50 in. |
| 11 in. | 4.00 in. |
| 12 in. | 4.00 in. |
03 · Notes
From the Technical Data Sheet
- Cast-in-place trapeze: locks pipe and conduit into the center third of the deck; size the height from the deck thickness table.
- Angled feet conceal the support when the forms are removed.
- Galvanized rod; corrosion resistant.

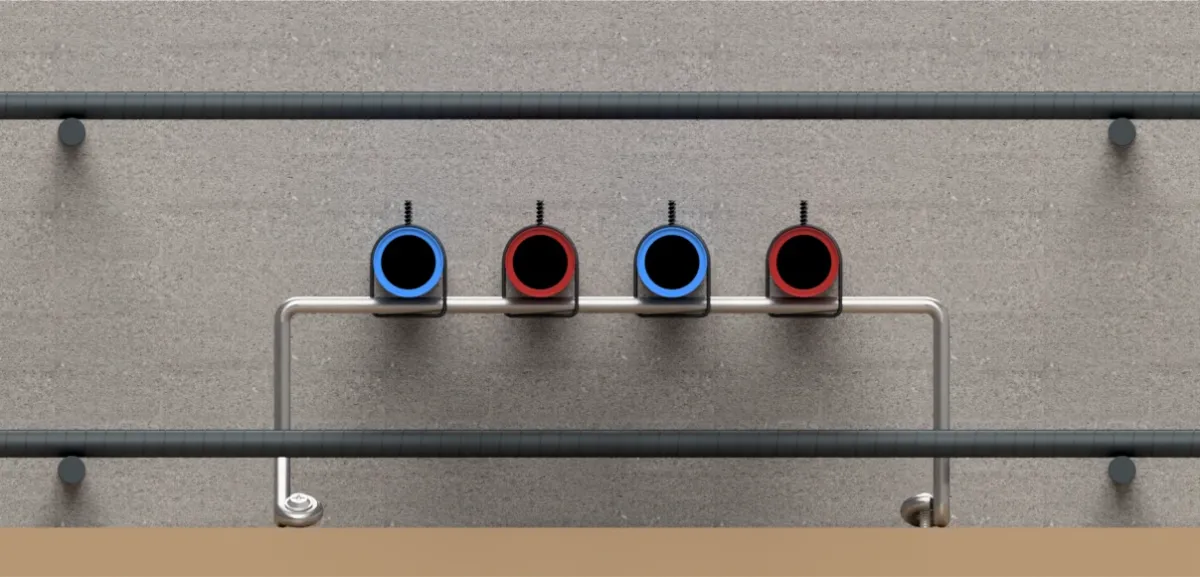

- Rigid support: stable pipe and conduit positioning during the pour.
- Designed for demanding high-rise construction.
- Maintains structural positioning within the center third of the deck.
- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and quote the build.
