Cast-in-Place KO Support
- A
- A10 Height, in.
- B
- B02 Hole ID
- C
- C02 KO quantity, 1 to 12
No load rating published
312Cast-in-placeElectrical and plumbing
Cast-in-Place KO Support
Cast-in-place support with exclusive integrated knockouts: two different pipe sizes, and couplings pass, with the same support.
Give us the size, drop and service and we’ll spec the part number and quote the build.

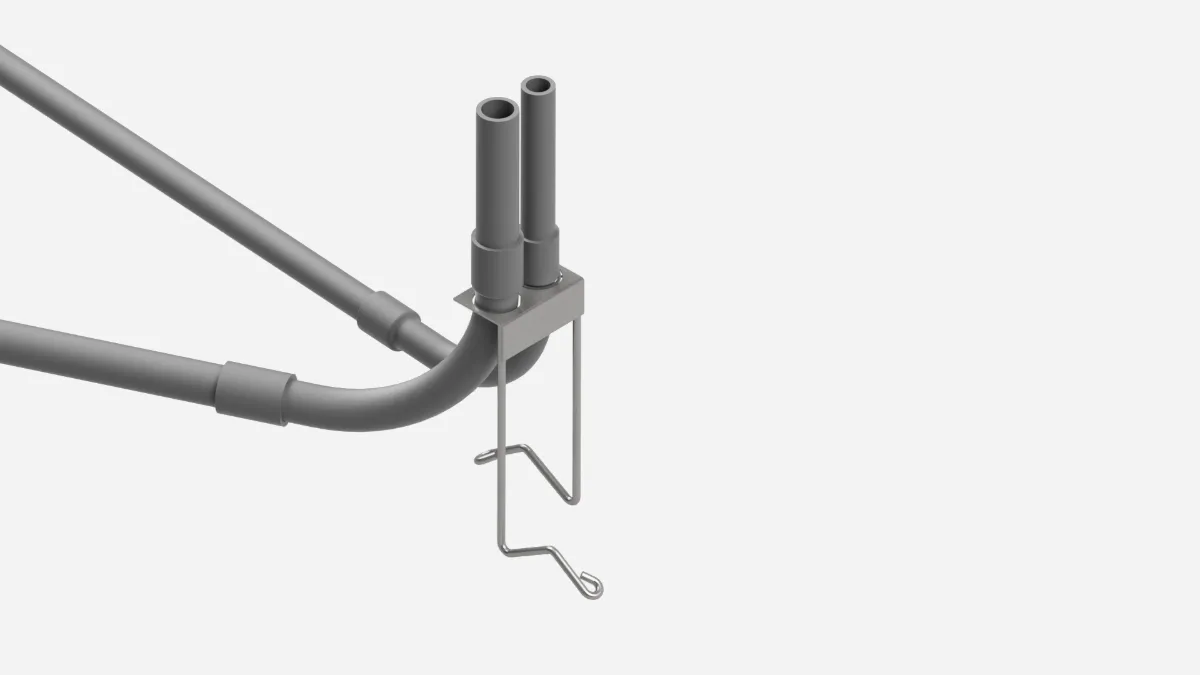

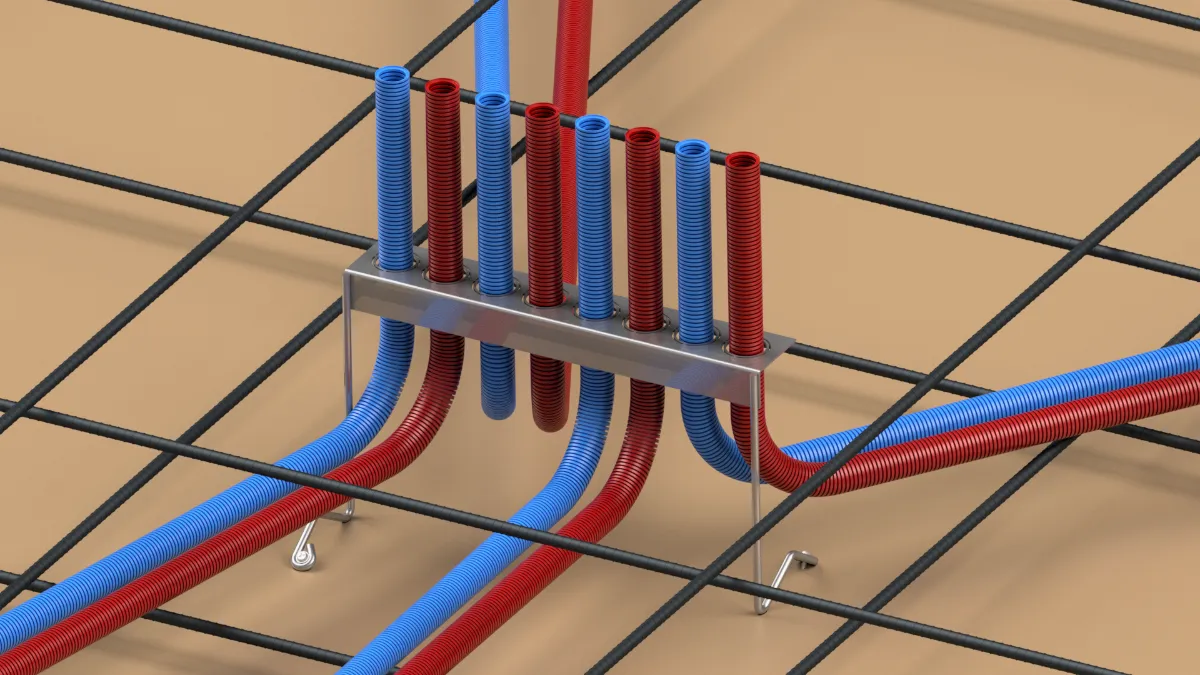

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Ready to ship
Stock parts, ready to order
Cast-in-Place KO Support
- A
- A10 Height, in.
- B
- B02 Hole ID
- C
- C10 KO quantity, 1 to 12
No load rating published
Custom order
Specify the size
Other sizes are custom made per order.

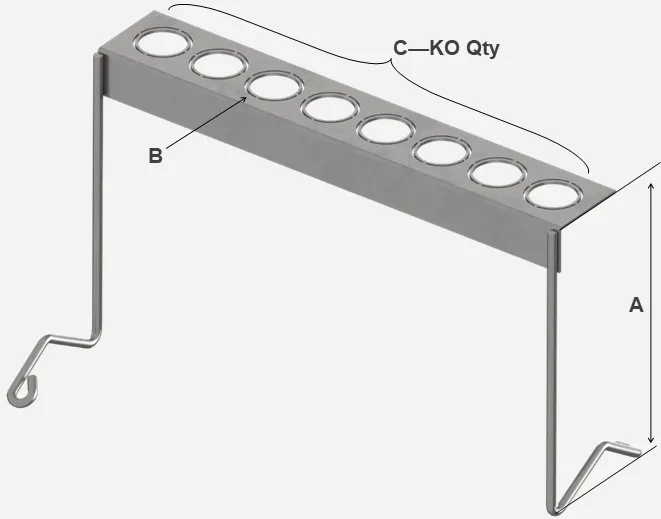

Height, in.
Hole ID: 1.00 (1.25 KO) / 1.25 (1.50 KO) / 1.50 (1.75 KO) / 1.75 (2.00 KO) / 2.00 in. (2.25 KO)
KO quantity, 1 to 12; crossbar width per the table
Part number312A__B__C__Finish the selections to complete the request.
Knockouts
| 1 | 1.75 | 2 | 2.25 | 2.5 | 2.75 |
| 2 | 3.5 | 4 | 4.5 | 5 | 5.5 |
| 3 | 5.25 | 6 | 6.75 | 7.5 | 8.25 |
| 4 | 7 | 8 | 9 | 10 | 11 |
| 5 | 8.75 | 10 | 11.25 | 12.5 | 13.75 |
| 6 | 10.5 | 12 | 13.5 | 15 | 16.5 |
| 7 | 12.25 | 14 | 15.75 | 17.5 | 19.25 |
| 8 | 14 | 16 | 18 | 20 | 22 |
| 9 | 15.75 | 18 | 20.25 | 22.5 | 24.75 |
| 10 | 17.5 | 20 | 22.5 | 25 | 27.5 |
| 11 | 19.25 | 22 | 24.75 | 27.5 | 30.25 |
| 12 | 21 | 24 | 27 | 30 | 33 |
03 · Notes
From the Technical Data Sheet
- Cast-in-place support with exclusive integrated knockouts: two different pipe sizes, and couplings pass, with the same support.
- Patent pending.

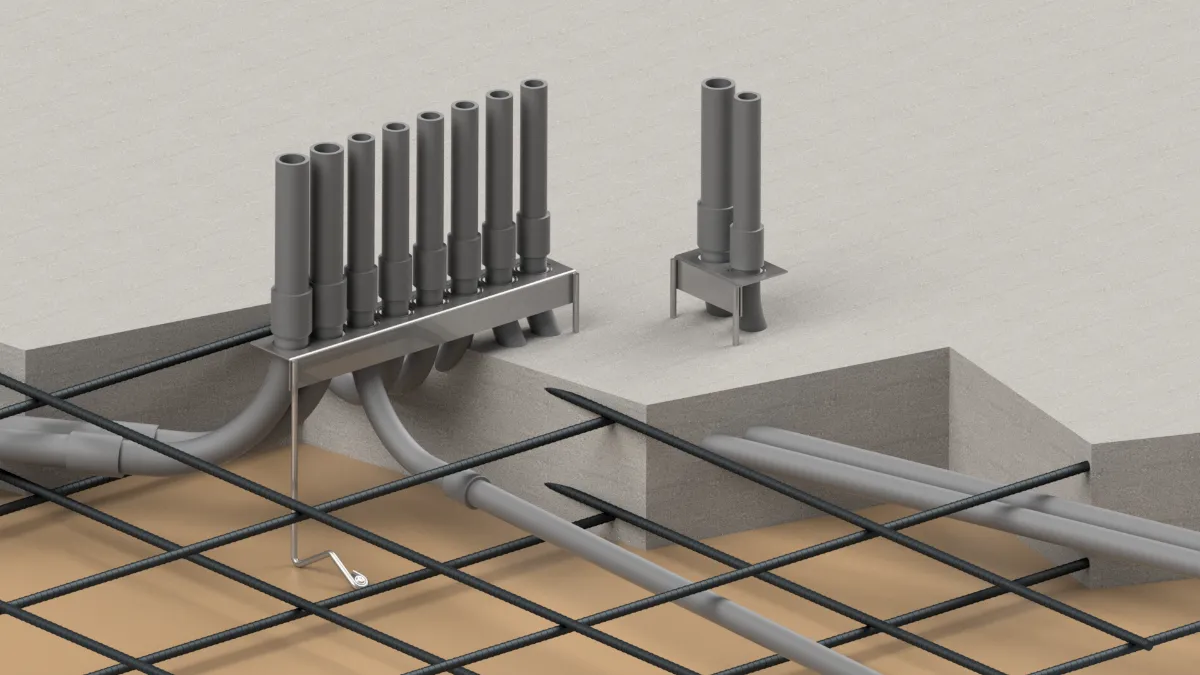

- Angled feet conceal the support when the forms are removed.
- Galvanized rod; corrosion resistant.
- Rigid support: stable pipe and conduit positioning during the pour.
- Designed for demanding high-rise construction.
- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and quote the build.
