320Cast-in-placeElectrical
Cast-in-Place Street 90 Support
Secures a street 90 stub-up during the pour; fixed 7 in. height.
Give us the size, drop and service and we’ll spec the part number and quote the build.

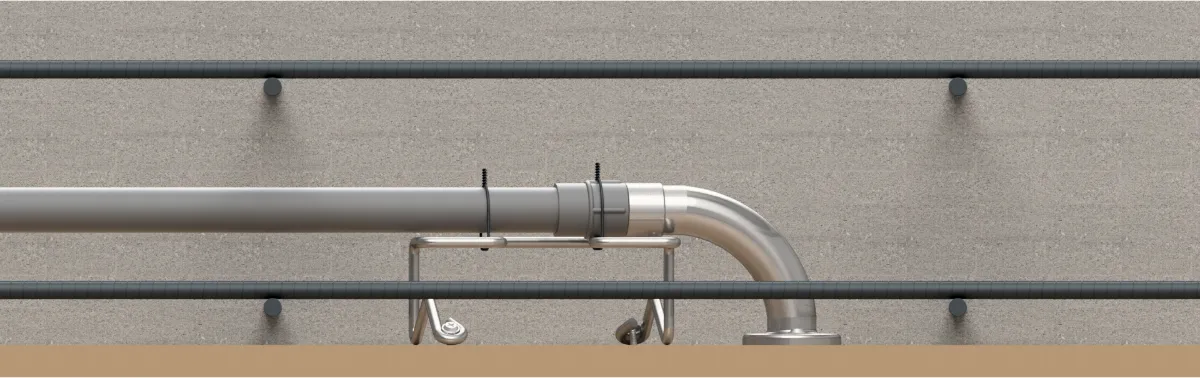

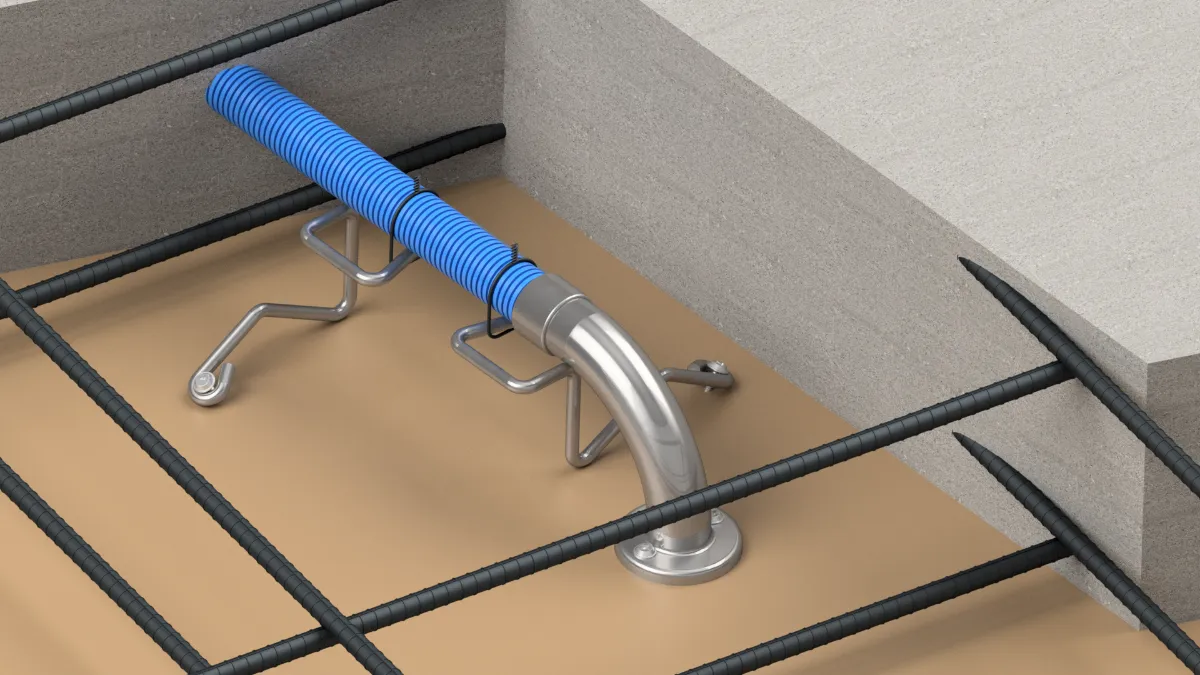

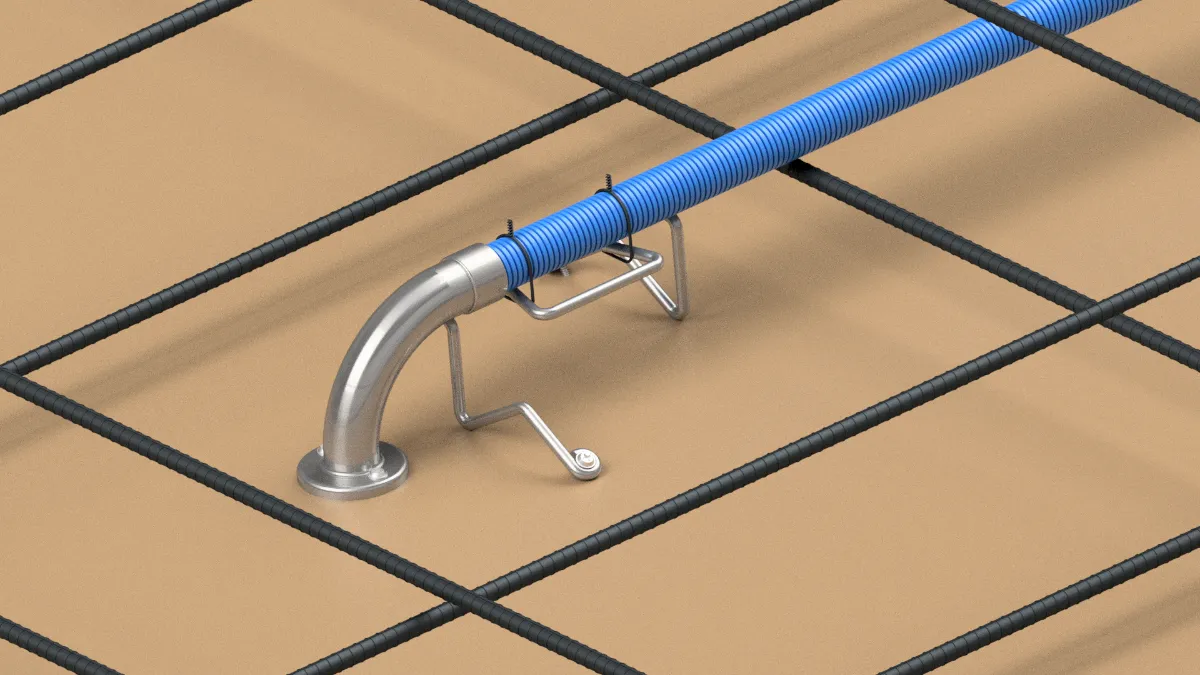

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Custom order
Specify the size
Custom made per order.

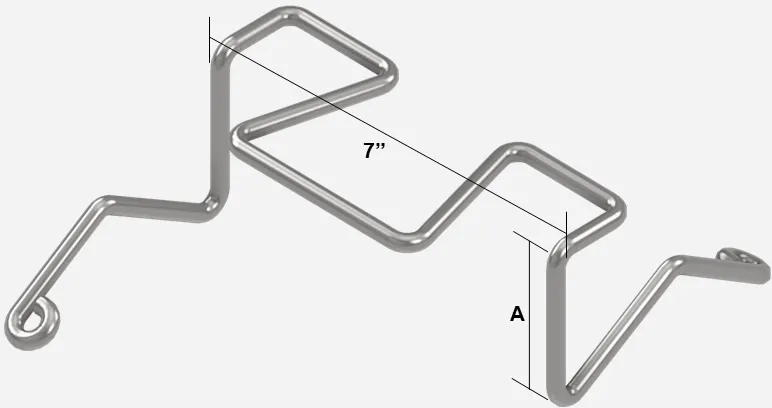

Size: A01 2.5 in. for 1/2 and 3/4 in. 90s (Red Dot ESL, Orbit MCSI); A02 2.25 in. for 1 in.; AXX other
Part number320A__Finish the selections to complete the request.
03 · Notes
From the Technical Data Sheet
- Secures a street 90 stub-up during the pour; fixed 7 in. height.
- Angled feet conceal the support when the forms are removed.
- Galvanized rod; corrosion resistant.
- Rigid support: stable pipe and conduit positioning during the pour.
- Designed for demanding high-rise construction.
- Other 90 brands accommodated on request.
- Electrical: positions PVC conduit, PVC-coated GRC and ENT raceways, boxes and fittings in the pour (NEC 352.30, 344.30, 362.30), secured so they cannot float or shift; spacing per the specifications and the manufacturer.
- Drawings not to scale.
