341Cast-in-placeElectrical and plumbing
Simple Steel Deck Tree with Loop
Steel deck tree with an integrated loop: secures the pipe without extra ties, prior to rebar.
Give us the size, drop and service and we’ll spec the part number and quote the build.

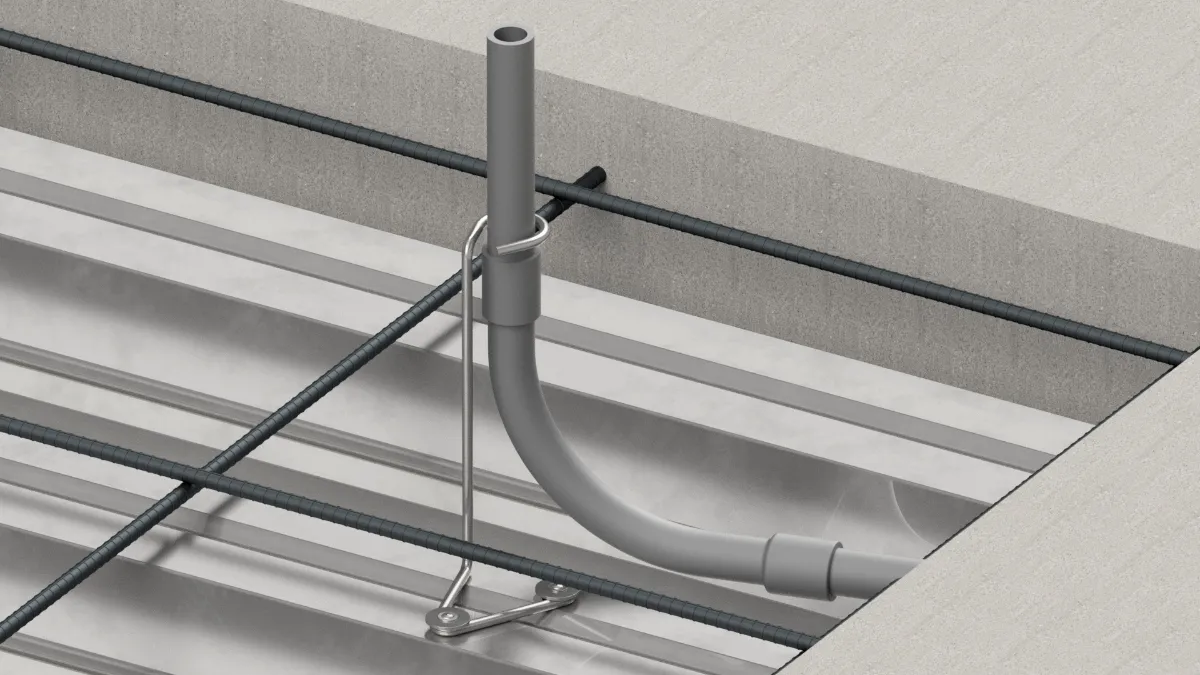

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Custom order
Specify the size
Custom made per order.

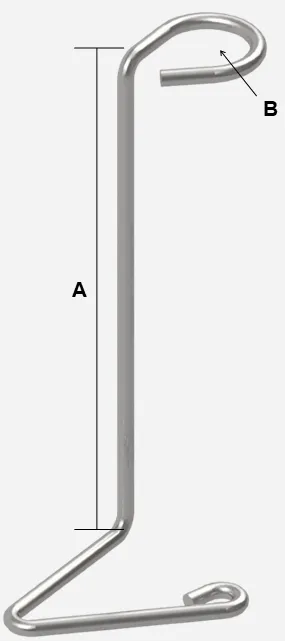

Height, in.
Hole ID: 1.25 / 1.50 / 1.75 / 2.00 / 2.25 / 2.50 in. (XX other); order a larger hole ID to pass couplings
Part number341A__B__Finish the selections to complete the request.
03 · Notes
From the Technical Data Sheet
- Steel deck tree with an integrated loop: secures the pipe without extra ties, prior to rebar.
- Work safe: the installer secures pipes in place prior to rebar.
- Galvanized rod; corrosion resistant.
- Designed for demanding high-rise construction.
- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
