370Cast-in-placeElectrical and plumbing
Simple HD Metal Deck Sleeve

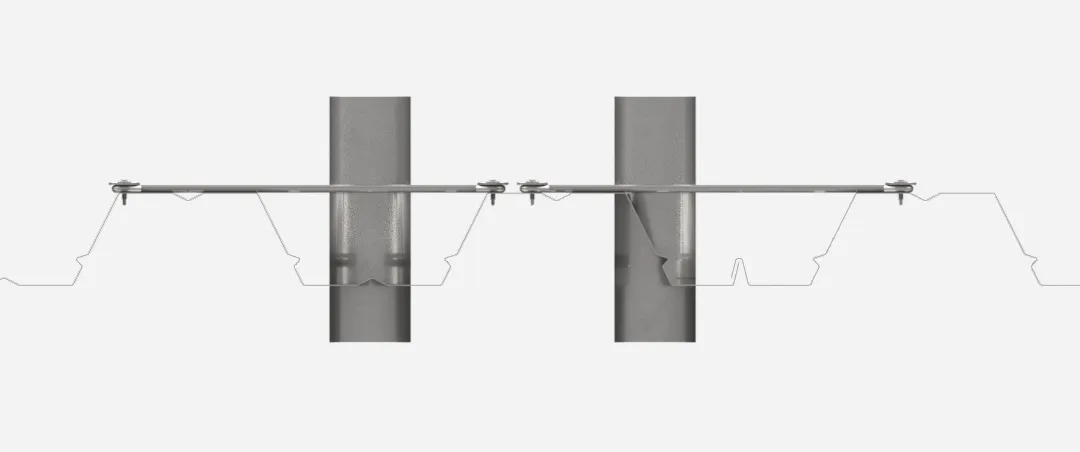

Heavy duty deck sleeves keep penetrations clear of concrete; the offset supports position the sleeve anywhere on the deck profile.
Give us the size, drop and service and we’ll spec the part number and quote the build.

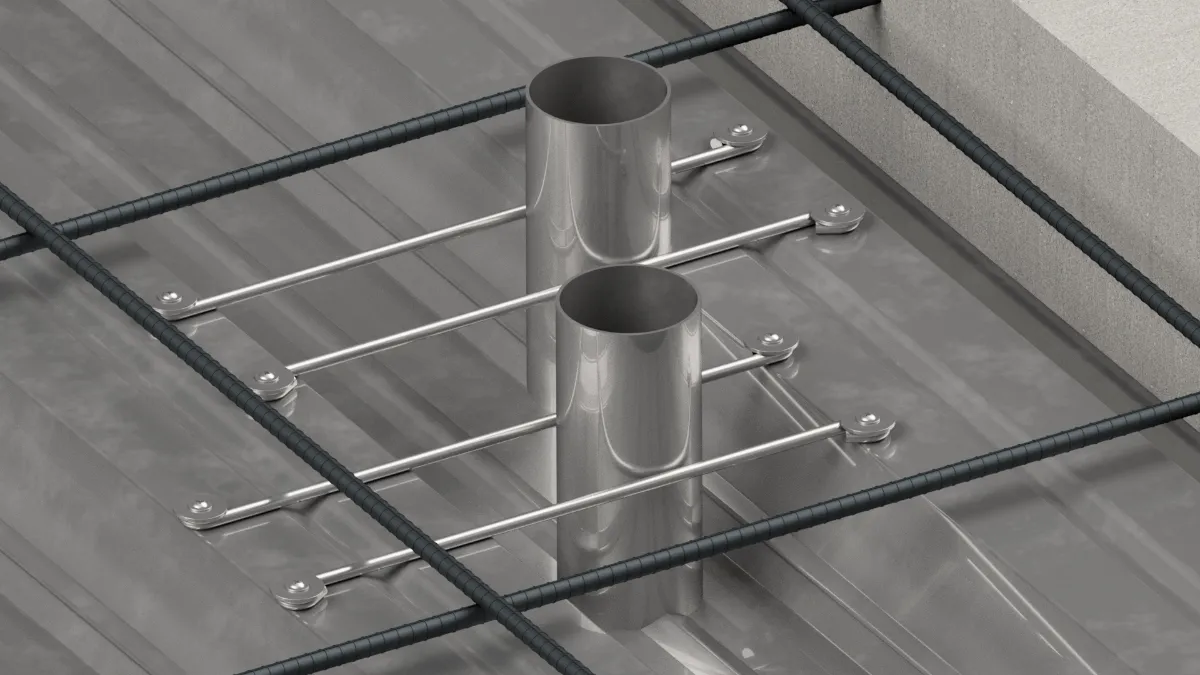

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Custom order
Specify the size
Custom made per order.

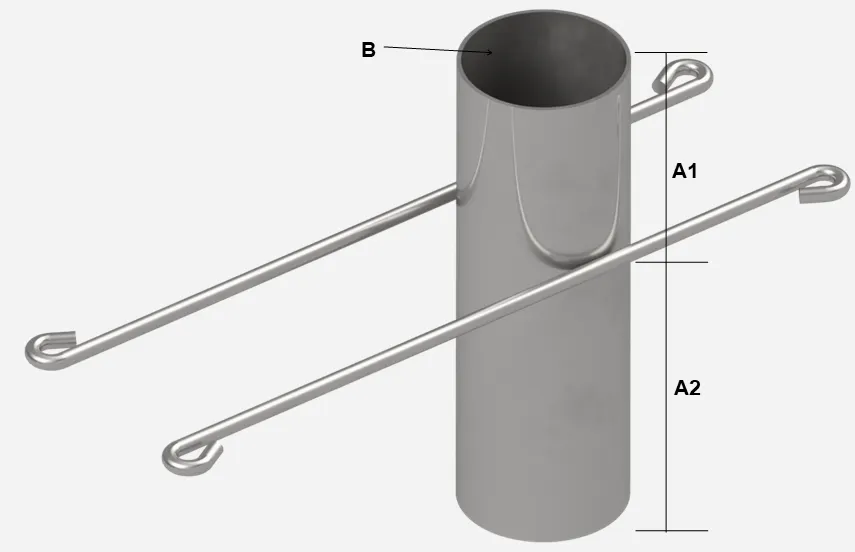

Height above deck, in.
Height below deck, in.
Nominal hole ID: 1 / 1.5 / 2 / 2.5 / 3 / 4 / 6 / 8 / 10 in. (XX other)
Part number370A1__A2__B__Finish the selections to complete the request.
03 · Notes
From the Technical Data Sheet
- Heavy duty deck sleeves keep penetrations clear of concrete; the offset supports position the sleeve anywhere on the deck profile.
- Work safe: the installer secures pipes in place prior to rebar.
- Galvanized rod; corrosion resistant.
- Designed for demanding high-rise construction.
- Actual hole ID varies slightly with the material wall thickness.
- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and quote the build.
