402Slab-on-gradeElectrical and plumbing
Double Loop Slab-on-Grade Tree

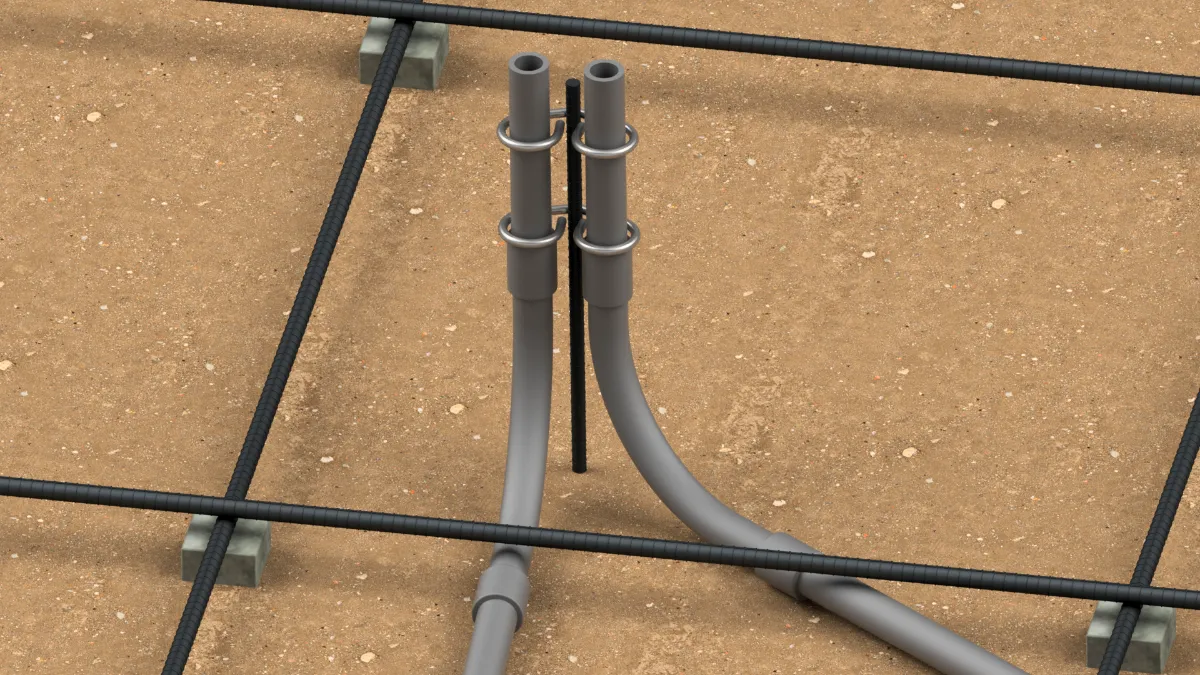

Slab-on-grade tree with two integrated loops: secures two pipes prior to rebar, 3 in. apart.
Give us the size, drop and service and we’ll spec the part number and quote the build.
In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Custom order
Specify the size
Custom made per order.

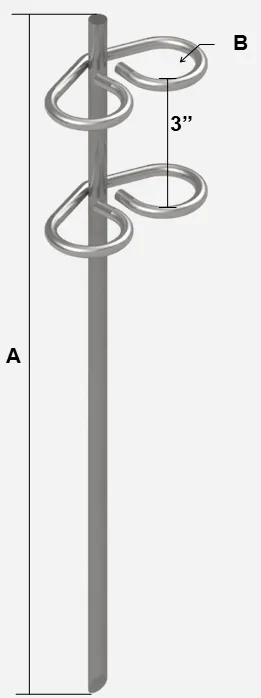

Height: 12, 18 or 24 in. (XX other)
Hole ID: 1.25 / 1.50 / 1.75 / 2.00 / 2.25 / 2.50 in. (XX other); order a larger hole ID to pass couplings
Part number402A__B__Finish the selections to complete the request.
03 · Notes
From the Technical Data Sheet
- Slab-on-grade tree with two integrated loops: secures two pipes prior to rebar, 3 in. apart.
- Work safe: the installer secures pipes in place prior to rebar.
- Galvanized rod; corrosion resistant.
- Designed for demanding high-rise construction.
- Integrated loop secures the pipe without extra ties, speeding up installation.

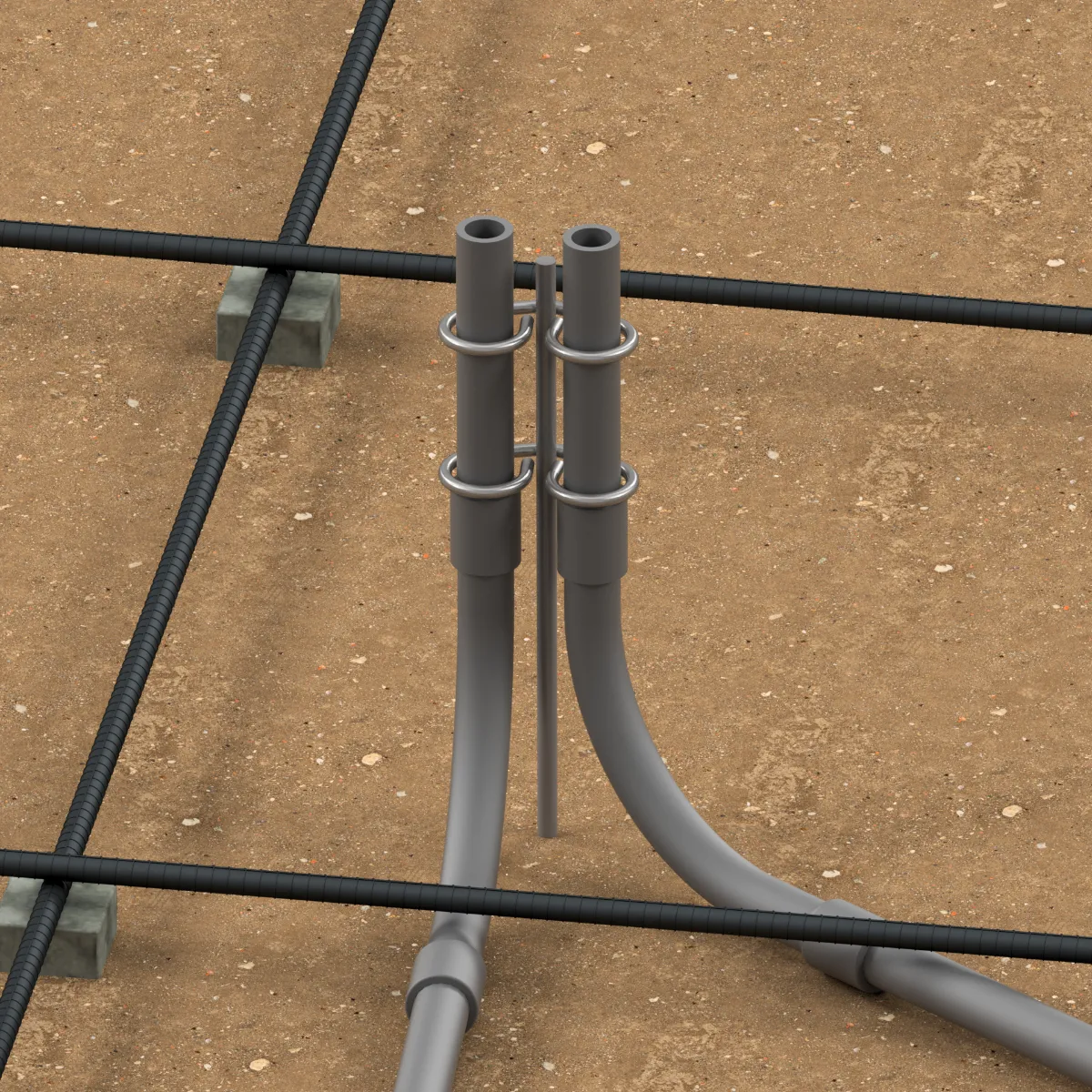

- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and quote the build.
