Simple Dbl Loop Buoyancy Anchor
- A

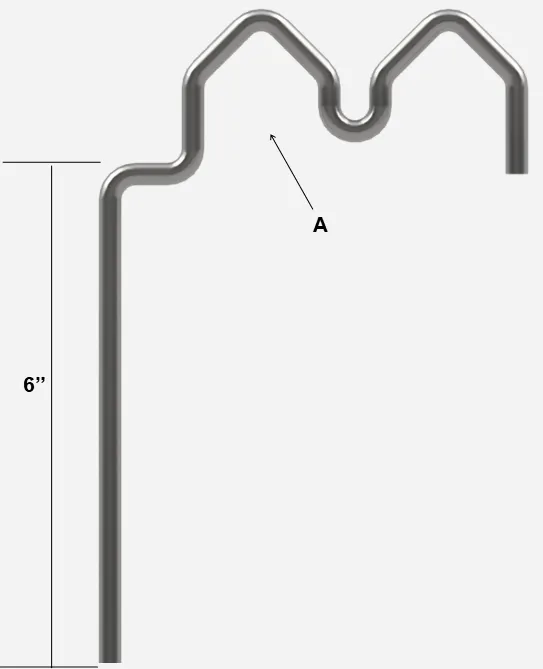

- A15 1.5 in. ID loops; 6 in. long standard
No load rating published
423Slab-on-gradeElectrical and plumbing
Simple Dbl Loop Buoyancy Anchor
Double loop buoyancy anchor (catalog: Simple Dbl Loop Pipe Anchor): keeps pipes from floating during the pour; 6 in. long standard.
Give us the size, drop and service and we’ll spec the part number and quote the build.

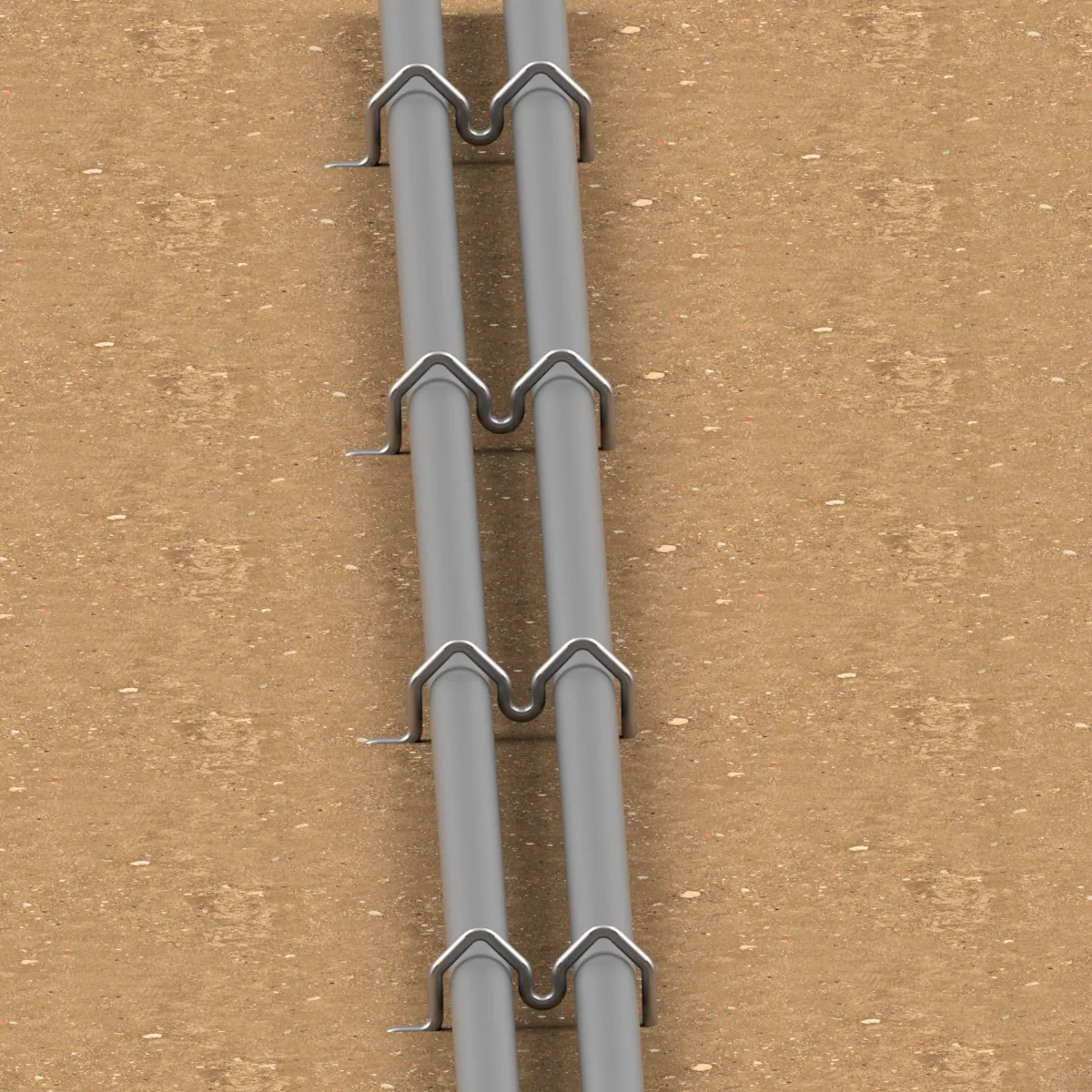

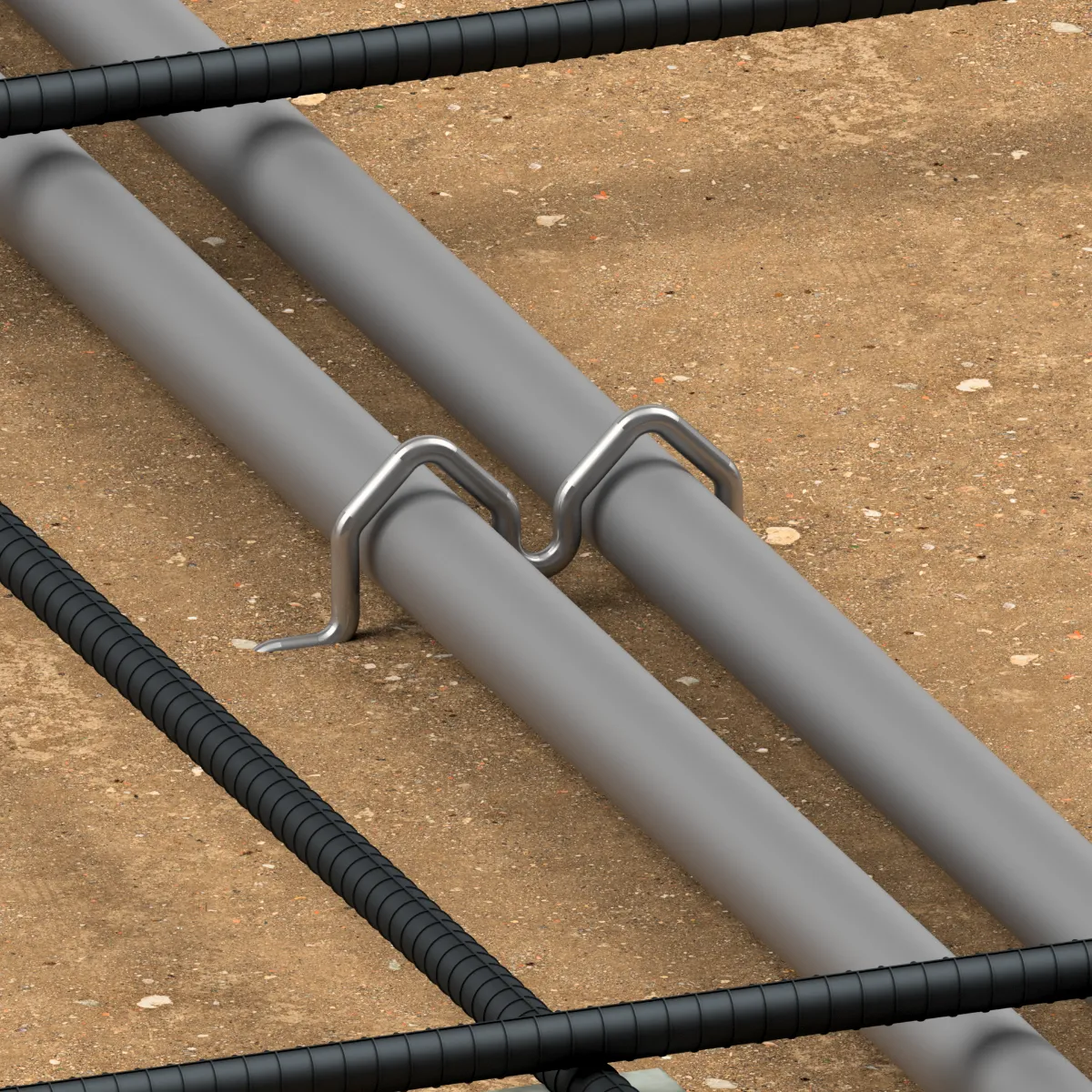

In use.
Function
Pre-pour
Temporary securement device: positions and secures the utility before and during the concrete pour.
No rating
No load rating is published; the cured concrete carries the utility.
The cured concrete carries the utility.
Order
Standard parts
Simple Dbl Loop Buoyancy Anchor
- A
- A20 2 in. ID loops; 6 in. long standard
No load rating published
03 · Notes
From the Technical Data Sheet
- Double loop buoyancy anchor (catalog: Simple Dbl Loop Pipe Anchor): keeps pipes from floating during the pour; 6 in. long standard.
- ID and length dimensions can be changed per order.
- Work safe: the installer secures pipes in place prior to rebar.
- Galvanized rod; corrosion resistant.
- Designed for demanding high-rise construction.
- Electrical and plumbing: positions PVC conduit, PVC-coated GRC, ENT and PVC- jacketed MC (NEC 352.30, 344.30, 362.30, 330.30) and sleeved PEX (IPC 305, UPC 312.2) in the pour, secured so they cannot float, shift or separate at joints; spacing per the specifications and the manufacturer.
- Drawings not to scale.
