1-1/4″ pin and clip
Concrete is tough!

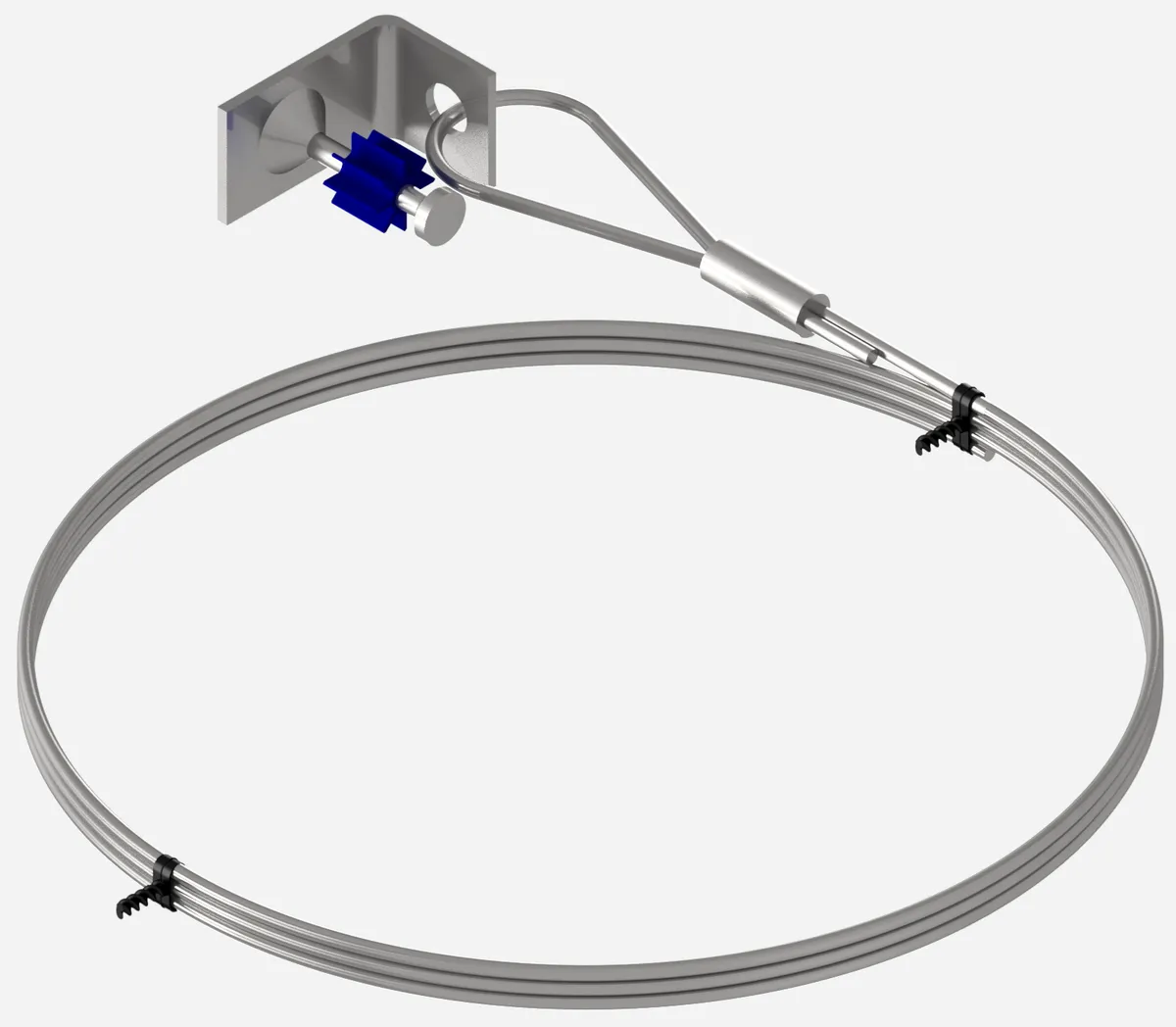

A swaged #2 or #3 cable assembly with a 1-1/4″ pin and clip already made up on the top end. Drive the pin with a powder-actuated tool into the concrete deck and the cable is hung.
Assemblies ship individually wrapped and color coded by size, so a box of thirty does not arrive as a tangled mess. Sold 10/bag through 20′ and 5/bag at 35′.
Give us the size, drop and service and we’ll spec the part number and price the build.

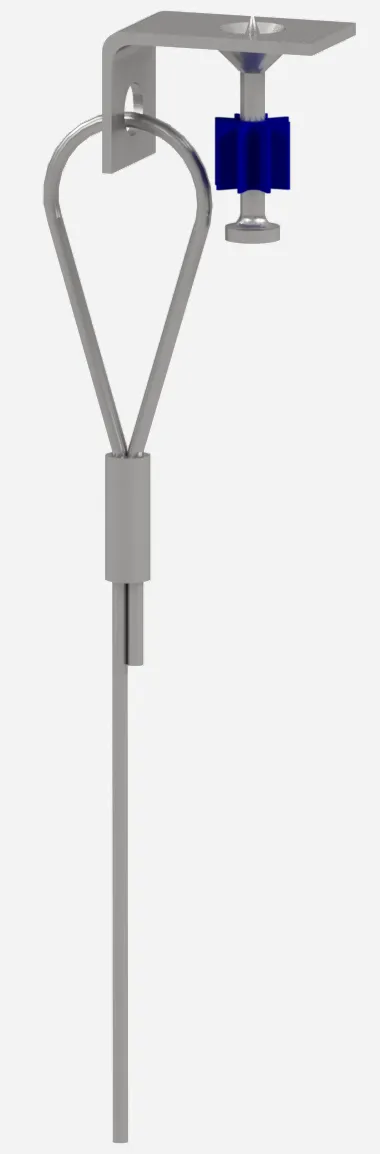

1-1/4″ pin and clip, swaged to the cable end.
Allowable tension load
Per ASCE 7, power-actuated fasteners are limited to 90 lbs of tension in Seismic Design Categories C (Ip = 1.5), D, E and F. Manufactured to ASTM A1023 and ASTM A931. This assembly is outside the scope of ICC-ES listing PMG-1840; refer to the Technical Data Sheet for capacities. Dry locations only, static overhead support only.
Allowable tension load
Capacities from the Technical Data Sheet
Allowable tension loads per Technical Data Sheet R0.1. This assembly is outside the scope of ICC-ES listing PMG-1840, so the sheet is the published source.
| Cable | Cable capacity | Normalweight concrete, 2,500 psi | Sand-lightweight on steel deck, lower flute | Sand-lightweight on steel deck, upper flute |
|---|---|---|---|---|
| #2, 3/32″ | 175 | 154 | 150 | 170 |
| #3, 1/8″ | 320 | 154 | 150 | 170 |
- Normalweight concrete, 2,500 psi: ESR-1530 Table 4
- Sand-lightweight on steel deck, lower flute: 3,000 psi, ESR-1530 Table 5
- Sand-lightweight on steel deck, upper flute: 3,000 psi, ESR-1530 Table 5
Values are the allowable vertical tension on the clip assembly. Install with a low-velocity powder-actuated tool per Blue Point instructions. Concrete must reach its specified strength before fasteners are driven. Steel deck: 3″ composite, 0.035″ minimum base metal, 40/55 ksi minimum. Connection to structure must be reviewed by the structural engineer of record.
| Requirement | Normalweight concrete, 2,500 psi | Sand-lightweight on steel deck, lower flute | Sand-lightweight on steel deck, upper flute |
|---|---|---|---|
| Ceiling clip assembly | PDAC90-32F10B | PDAC90-32F10B | PDAC90-32F10B |
| Embedment depth | 1″ | 1″ | 1″ |
Fastener evaluated under ICC-ES ESR-1530.
Concrete connections
Other fixings in this group
Part numbers
Read the callout
Assemblies are sold 10/bag through 20′ and 5/bag at 35′. Devices are ordered separately unless you ask for them packed with the assembly.
Add X2 or X3 at the end of the part number for double or triple tie cables. Many other options are available. Just let us know and we will get you specifically what works for your job!
| Part number | Description | Cable | Length | Pack |
|---|---|---|---|---|
| SC0206PC1 | 3/32″ Cable, 6′, 1-1/4″ Pin and Clip | #2 | 6′ | 10/bag |
| SC0212PC1 | 3/32″ Cable, 12′, 1-1/4″ Pin and Clip | #2 | 12′ | 10/bag |
| SC0220PC1 | 3/32″ Cable, 20′, 1-1/4″ Pin and Clip | #2 | 20′ | 10/bag |
| SC0235PC1 | 3/32″ Cable, 35′, 1-1/4″ Pin and Clip | #2 | 35′ | 5/bag |
| SC0306PC1 | 1/8″ Cable, 6′, 1-1/4″ Pin and Clip | #3 | 6′ | 10/bag |
| SC0312PC1 | 1/8″ Cable, 12′, 1-1/4″ Pin and Clip | #3 | 12′ | 10/bag |
| SC0320PC1 | 1/8″ Cable, 20′, 1-1/4″ Pin and Clip | #3 | 20′ | 10/bag |
| SC0335PC1 | 1/8″ Cable, 35′, 1-1/4″ Pin and Clip | #3 | 35′ | 5/bag |
Before you install
Limits that apply on every job
Follow capacity limits
Never overload SSF Cable Assemblies. Refer to the Technical Data Sheets for complete assembly capacities.
Take angle reductions
Assemblies not installed vertically take the published angle reduction, applied to the assembly rating. When cable is looped around round duct, the resulting angle shall not exceed 60°. Y-Accessories and Y-Assemblies may not be installed at angles greater than 60°.
Never join two cables
Never join 2 cables into a single device. Voids engineering and warranty.
Do not use for lifting
Static overhead support only. Not for lifting, rigging, or fall protection.
Dry indoor use only
Not for wet, chlorinated, or otherwise corrosive environments. Use SSF cable only; plastic-coated and third-party cables are not permitted with SSF devices.
Do not paint cables. Keep cables clean.
Install in final position before painting. Devices cannot be adjusted after paint contacts the cable. Cables must be free of oil and fireproofing prior to device installation.
Send the spec. We’ll build the support.
Size, drop, and service. We’ll spec the part number and price the build.
