Cast-in-place supports
Set before the pour.

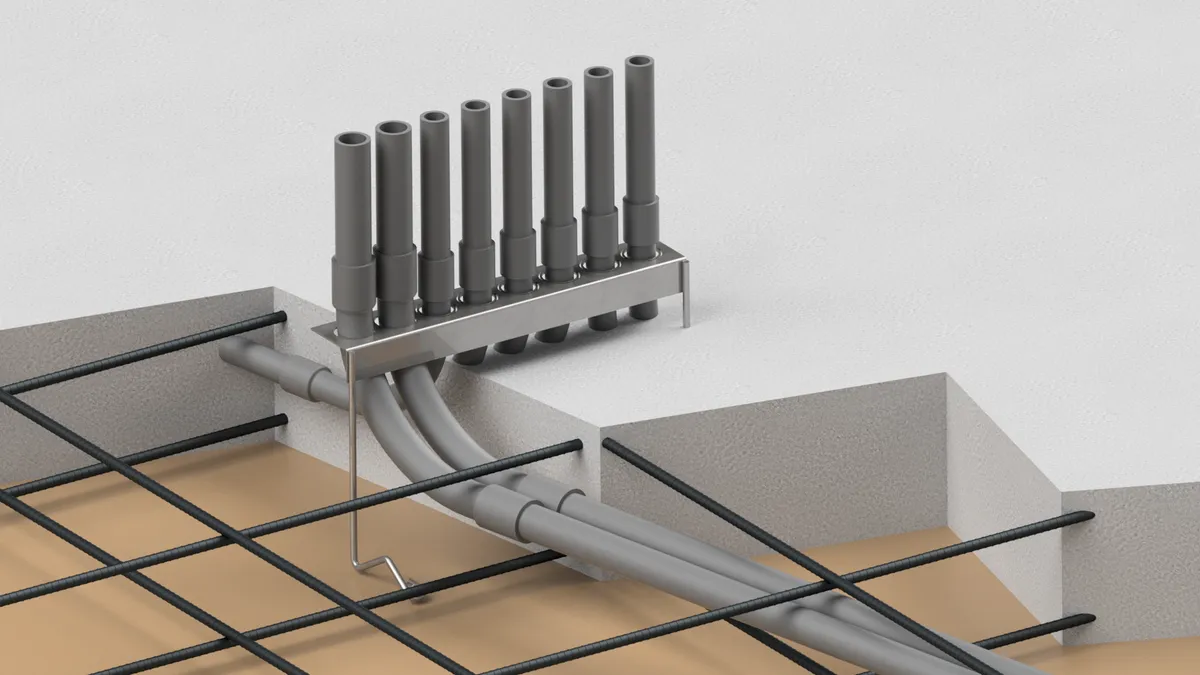

Supports set in the form before the concrete goes down, so conduit, pipe, and boxes land exactly where the drawings call. No drilling overhead after the fact.
The line
Trees, trapezes, knockout supports, box supports, and deck hardware. Every family is built to the callout.
- 300CIP Tree8 to 12″ tall
- 301Single Loop CIP Treeloop IDs to suit conduit and pipe
- 302Double Loop CIP Treetwo loops per tree
- 310CIP Trapeze3 to 4″ tall, 8 to 12″ wide
- 311CIP 2-tiered Trapezetwo tiers in the form
- 312CIP KO Supportknockout sizes 1.25 to 1.50″, 5 to 12 holes
- 312HDCIP KO Support HDheavy-duty, up to 21″ wide
- 313CIP 2-tier KO Supporttwo knockout tiers
- 320Street 90 Supportby trade size
- CIP100KO L-Metal Channel1.00 to 1.50″ KO sizes
- 321CIP Chair Supportchair support in the form
- 322Table Top Box SupportCIP box support
- 323Wall Box HookCIP box support, wall forms
- 324Robey RodCIP box support
- 340Steel Deck Treetree for steel deck pours
- 341Steel Deck Tree with Looplooped tree for steel deck pours
- 370Simple HD Metal Deck Sleevedeck sleeve for pipe penetrations
- 380CIP Loopcast-in loop, hangs the rod after the pour
- 381CIP Straight Rodcast-in straight rod
- 382CIP Threaded Rodcast-in threaded rod
- 430CIP Panel Cagepanel cage for pipe and conduit
Working slab-on-grade instead? See the in-the-dirt line
In before the concrete
- 01
Lay out
Position the supports on the form per the drawings, before anyone is working overhead.
- 02
Set
Fasten to the form or deck and load the service: conduit in the knockouts, pipe in the loops, boxes on the supports.
- 03
Pour
The concrete locks everything in place. Strip the forms and the services are exactly where the drawings say.
Built for the pour crews
Cast it in once
Send the deck drawings and the service list. We’ll spec the supports and price the package.
